This article shows you how to process log data that has been collected into MaxCompute through dataworks.

Note Before you begin this experiment, please complete the operation inData acquisition: log data upload.

Create data tables

You can refer to Data acquisition: log data upload to create data tables.

  • Create ods_log_info_d table
    1. Right click Table in the workshop business flow. Click Create Table and enter the table's name ods_log_info_d. You can then click DDL Mode to type in the table creation SQL statements.
      The following are table creation statements:
      CREATE TABLE IF NOT EXISTS ods_log_info_d (
        ip string comment 'IP address',
        uid STRING COMMENT 'User ID',
        time string comment 'time:yyyymmddhh:mi:ss',
        status string comment 'server return status code',
        bytes string comment 'the number of bytes returned to the Client',
        region string comment 'region,get from IP',
        method string comment 'HTTP request type',
        url string comment 'url',
        protocol string comment 'HTTP Protocol version number',
        referer string comment 'source ures',
        device string comment 'terminal type',
        identity string comment 'Access type crawler feed user unknown'
      )
      PARTITIONED BY (
        dt STRING
      );
    2. Click Submit to Development Environment and Submit to Production Environment.
  • Create dw_user_info_all_d table
    The method of creating a new report table is identical to that of a table statement as follows:
    -- Create a copy table
    CREATE TABLE IF NOT EXISTS dw_user_info_all_d (
      uid STRING COMMENT 'User ID',
      gender STRING COMMENT 'Gender',
      age_range STRING COMMENT 'Age range',
      zodiac STRING COMMENT 'Zodiac sign',
      region string comment 'region, get from IP',
      device string comment 'terminal type',
      identity string comment 'Access type crawler feed user unknown',
      method string comment 'HTTP request type',
      url string comment 'url',
      referer string comment 'source url',
      time string comment 'time:yyyymmddhh:mi:ss'
    )
    PARTITIONED BY (
      dt string
    );
  • Create rpt_user_info_d table
    The following are table creation statements:
    -- Create a copy table
    Create Table if not exists rpt_user_info_d(
      uid STRING COMMENT 'User ID',
      region string comment 'region, get from IP',
      device string comment 'terminal type',
      pv bigint comment 'pv',
      gender STRING COMMENT 'Gender',
      age_range STRING COMMENT 'Age range',
      zodiac STRING COMMENT 'Zodiac sign'
    )
    PARTITIONED BY (
      dt string
    );

Business Flow Design

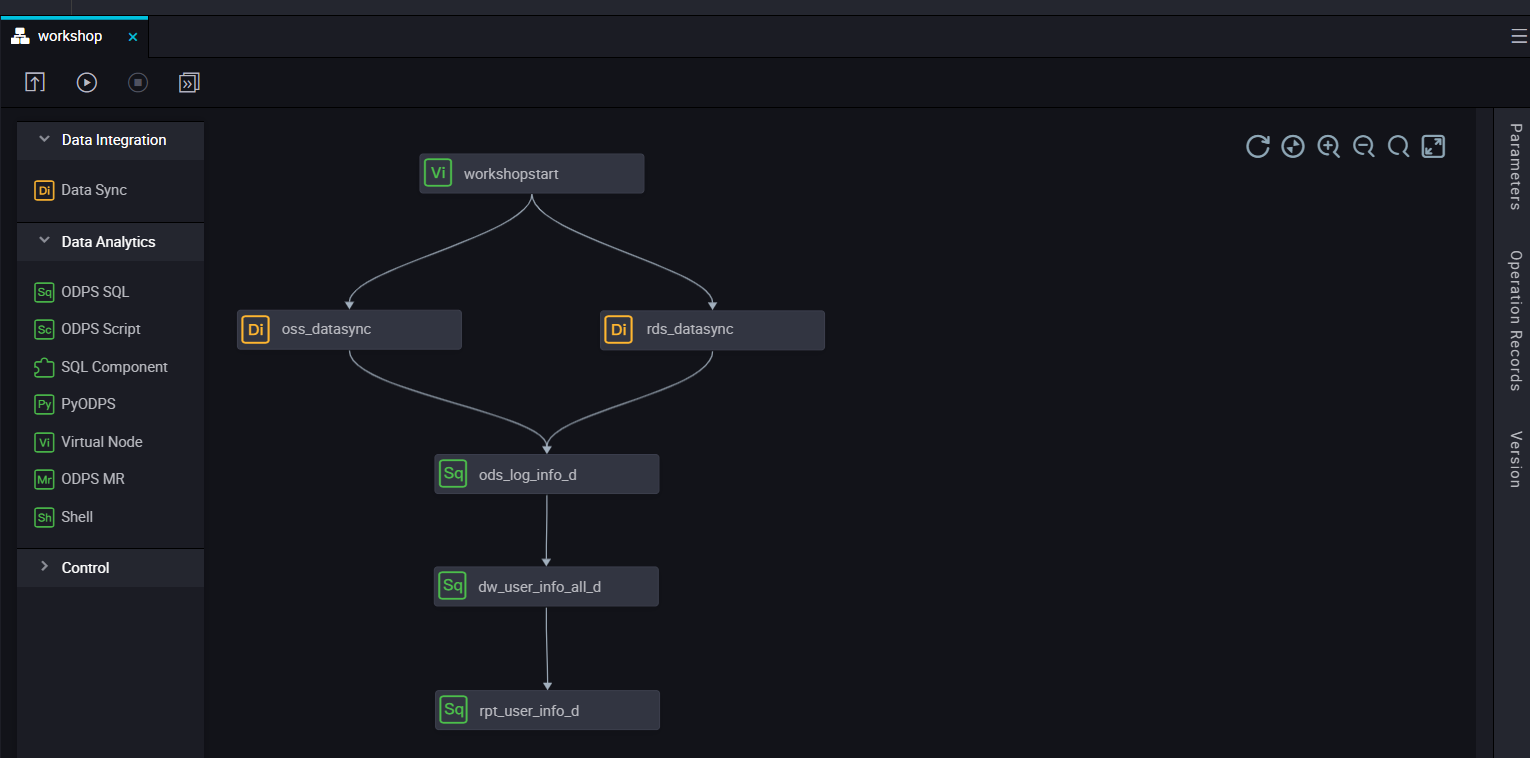

Open the Workshop Business Flow and drag three ODPS SQL nodes amed as "ods_log_info_d, dw_user_info_all_d, rpt_user_info_d" into the canvas, n, and configure dependencies.

Creating user-defined functions

  1. Download ip2region.jar.
  2. Right-click Resource, and select Create Resource > jar.

  3. Click Select File, select ip2region. jar that has been downloaded locally, and click OK.

  4. After the resource has been uploaded to dataworks, click Submit.

  5. Right-click a function and select Create Function.

  6. Enter the function name getregion, select the Business Flow to which you want to belong, and click Submit.

  7. Enter the function configuration in the Registry Function dialog box, specify the class name, description, command format, and parameter description.

    Parameters:
    • Function Name: getregion
    • Class Name: org.alidata.odps.udf.Ip2Region
    • Resource list: ip2region. Jar
    • Description: IP address translation area
    • Command Format: getregion ('IP ')
    • Parameter description: IP Address
  8. Click Save and submit.

Configure ODPS SQL nodes

  • Configure ods_log_info_d Node
    1. Double-click the ods_log_info_d node to go to the node configuration page and write the processing logic.

      The SQL logic is as follows:
      INSERT OVERWRITE TABLE ods_log_info_d PARTITION (dt=${bdp.system.bizdate})
      SELECT ip
        , uid
        , time
        , status
        , bytes -- use a custom UDF to get a locale over IP
        , getregion (ip) as region -- the request difference is divided into three fields through the regular
        , regexp_substr(request, '(^[^ ]+ )') AS method
        , regexp_extract(request, '^[^ ]+ (.*) [^ ]+$') AS url
        , regexp_substr(request, '([^ ]+$)') AS protocol -- get more precise urls with regular clear refer
        , regexp_extract(referer, '^[^/]+://([^/]+){1}') AS referer -- Get terminal information and access form through agent
        , CASE
      WHEN TOLOWER(agent) RLIKE 'android' THEN 'android'
          WHEN TOLOWER(agent) RLIKE 'iphone' THEN 'iphone'
          WHEN TOLOWER(agent) RLIKE 'ipad' THEN 'ipad'
          WHEN TOLOWER(agent) RLIKE 'macintosh' THEN 'macintosh'
          WHEN TOLOWER(agent) RLIKE 'windows phone' THEN 'windows_phone'
          WHEN TOLOWER(agent) RLIKE 'windows' THEN 'windows_pc'
          ELSE 'unknown'
        END AS device
        , CASE
          WHEN TOLOWER(agent) RLIKE '(bot|spider|crawler|slurp)' THEN 'crawler'
          WHEN TOLOWER(agent) RLIKE 'feed'
          OR regexp_extract(request, '^[^ ]+ (.*) [^ ]+$') RLIKE 'feed' THEN 'feed'
          WHEN TOLOWER(agent) NOT RLIKE '(bot|spider|crawler|feed|slurp)'
          AND agent RLIKE '^[Mozilla|Opera]'
          AND regexp_extract(request, '^[^ ]+ (.*) [^ ]+$') NOT RLIKE 'feed' THEN 'user'
          ELSE 'unknown'
        END AS identity
        FROM (
          SELECT SPLIT(col, '##@@')[0] AS ip
          , SPLIT(col, '##@@')[1] AS uid
          , SPLIT(col, '##@@')[2] AS time
          , SPLIT(col, '##@@')[3] AS request
          , SPLIT(col, '##@@')[4] AS status
          , SPLIT(col, '##@@')[5] AS bytes
          , SPLIT(col, '##@@')[6] AS referer
          , SPLIT(col, '##@@')[7] AS agent
        FROM ods_raw_log_d
        WHERE dt = ${bdp.system.bizdate}
      ) a;
    2. Click Save.

  • Configure dw_user_info_all_d Node
    1. Double-click the dw_user_info_all_d node to go to the node configuration page and write the processing logic.
      The SQL logic is as follows:
      INSERT OVERWRITE TABLE dw_user_info_all_d PARTITION (dt='${bdp.system.bizdate}')
      SELECT COALESCE(a.uid, b.uid) AS uid
        , b.gender
        , b.age_range
        , b.zodiac
        , a.region
        , a.device
        , a.identity
        , a.method
        , a.url
        , a.referer
        , a.time
      FROM (
        SELECT *
        FROM ods_log_info_d
        WHERE dt = ${bdp.system.bizdate}
      ) a
      LEFT OUTER JOIN (
        SELECT *
        FROM ods_user_info_d
        WHERE dt = ${bdp.system.bizdate}
      ) b
      ON a.uid = b.uid;
    2. Click Save.
  • Configure a rpt_user_info_d Node
    1. Double-click the fig node to go to the node configuration page and write the processing logic.
      The SQL logic is as follows:
      INSERT OVERWRITE TABLE rpt_user_info_d PARTITION (dt='${bdp.system.bizdate}')
      SELECT uid
        , MAX(region)
        , MAX(device)
        , COUNT(0) AS pv
        , MAX(gender)
        , MAX(age_range)
        , MAX(zodiac)
      FROM dw_user_info_all_d
      WHERE dt = ${bdp.system.bizdate}
      GROUP BY uid;
    2. Click Save.

Submitting Business Flows

  1. Click Submit to submit the node tasks that have been configured in the Business Flow.
  2. Select the nodes that need to be submitted in the Submitdialog box, and check the Ignore Warnings on I/O Inconsistency, click Submit.

Running Business Flows

  1. Click Run to verify the code logic.

  2. Click Queries in the left-hand navigation bar.
  3. Select New > ODPS SQL.

  4. Write and execute SQL statements, Query Task for results, and confirm data output.

    The query statement is as follows:
    --- View the data in the data box
    select * From glaswhere dt ''business day'' limit 10;

Publishing Business Flow

After the Business Flow is submitted, it indicates that the task has entered the development environment, but the task of developing an environment does not automatically schedule, so the tasks completed by the configuration need to be published to the production environment (before publishing to the production environment, test this task code ).

  1. Click Publish To Go To The publish page.

  2. Select the task to publish and click Add To Be-Published List.
  3. Enter the list of pending releases, and click Pack and publish all.
  4. View published content on the Publish Package List page.

Run tasks in production

  1. After the task has been published successfully, click Operation center.
  2. Select Workshop Business Flows in the Task List.

  3. Right-click the workshop_start node in the DAG graph and select Patch Data > Current and downstream nodes.

  4. Check the task that needs to fill the data, enter the business date, and click OK.

    When you click OK, you automatically jump to the patch data task instance page.

  5. Click Refresh until the SQL task runs successfully.

Next step

Now that you 've learned how to create SQL tasks, how to handle raw log data, you can continue with the next tutorial. In this tutorial, you will learn how to set up data quality monitoring for tasks completed by your development, ensures the quality of tasks running. For more information, seeData quality monitoring .
