PatchData instances are generated during the completion of data for cyclic tasks, which allows O&M management of scheduled instance tasks such as viewing running status and terminating, re-running, and unfreezing tasks.

Patch Data

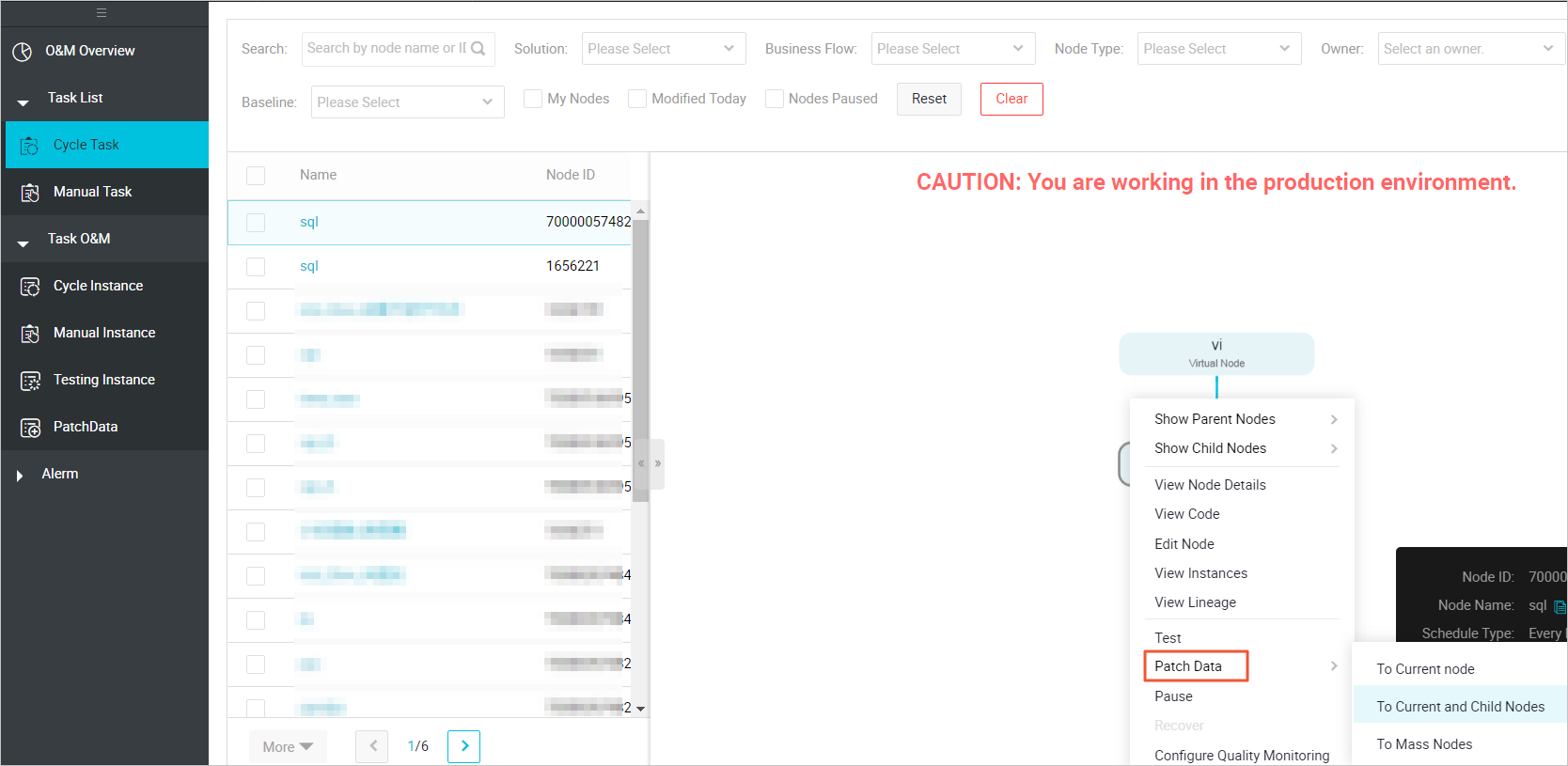

Right click your Cycle Task, and you can shoose to Patch Data.

You can choose to patch the data of the Current node or the Current and Child node. After that, you can choose if you want the Patch Data task can run in parallel.

How to patch data for specific nodes in Combined Nodes

Combined Node comes from your work flow in DataWorks V1.0 . The following pictures show how to patch data for specific nodes in Combined Nodes.
  1. Right click your Combined Node's DAG and click View Internal Nodes.

  2. Right click your upstream Internal Node and copy the Node ID.

  3. Search the ID and Patch Data.

  4. You can now patch data for specific nodes in Combined Nodes.

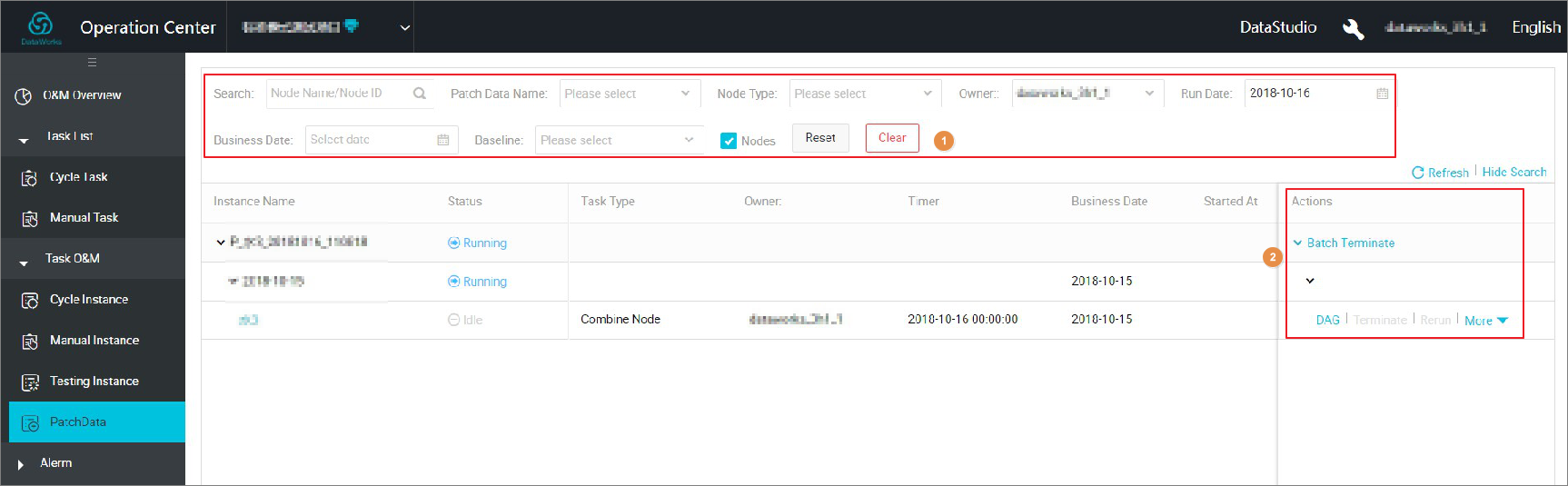

Instance list



  • Instance name/DAG graph: You can open the DAG graph for this node to view the results of the Instance run.
  • Stop running: If the instance is running, click STOP to run the kill task.
  • Re-run: re-schedule this instance.
  • More: including node status modification and more functions.

Introduction to more features:

  • Re-run downstream: re-run the downstream task for this node.
  • Success: If the node fails to run, the node is successfully activated downstream.
  • Pause (freeze): sets the current node to a pause (freeze) State and stops scheduling, when the node state is suspended, an icon appears after the node name.
  • Restore (thaw): restore the suspend (frozen) node to schedule.
  • Look at blood ties: see the ki-nship map of the node.

DAG graph Introduction

Click the node name or dag map to open the DAG graph interface for this instance, right-click the node to see the operational features of this node.

  • Attributes: the attributes of this node are described, including schedule type, status, time, and so on.
  • Run log: this node is running or running log information.
  • Operation Log: The operation log for the node, including the records of node changes, replenishment data, and so on.
  • Code: Code edited by the node.

The right-click node function describes:

  • View running logs: Enter the Operations Log interface, where you can see information such as logview in the Operations Log.
  • View node code: You can view the current code of the node.
  • Edit nodes: You can jump to the data development page to edit the node.
  • View node impact: Enter the node information interface to view information such as baseline impact.
  • Look at blood ties: see the kinship map of the node.
  • Stop operation: Kill task, valid only for this instance
  • Re-run: Failed task or abnormal status task re-run instance.
  • Rerunning downstream: downstream rerunning instances of the current node, if there are multiple downstream instances, all of these instances will run again.
  • Success: the node status is set to success.
  • Emergency Operation: Emergency Operation refers to the operation of the current instance in a very urgent situation, emergency operations are only valid for the current node, including removing dependencies, modifying priorities, and forcing rerunning.
    • Remove dependencies: undependency this node, this node is often started when upstream fails and there is no data relationship to this instance.
    • Modify priority: Modify the priority of the current instance when the node is very important, used when running slowly (not recommended ).
    • Force run again: ignores the status of the current instance and forces a restart (not recommended ).
  • Pause (freeze): place the current node into a pause (freeze) state and stop scheduling.
  • Restore (thaw): restore the suspend (frozen) node to schedule.

Description of instance status

SN Status State Mark
1 Running succeeded
2 Not running
3 Running failed
4 Under running
5 Waiting status
6 Frozen status
