Mobile Platform as a Service:Verification code input box

Last Updated:Jul 18, 2023

AUTextCodeInputBox is a verification code input control.

API description

/**

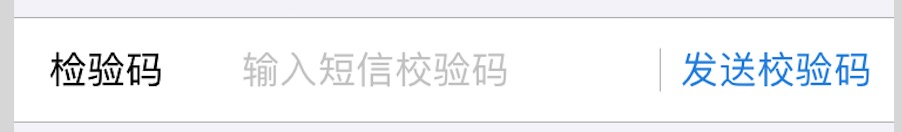

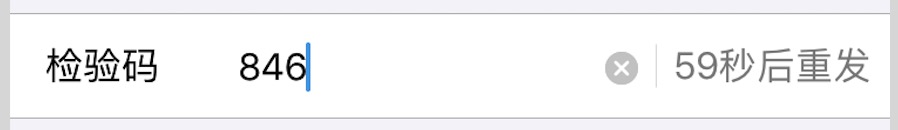

The SMS verification code input box with a countdown timer.
*/
@interface AUTextCodeInputBox : AUSecurityCodeBox

/**
The wait time before an SMS message is sent.
*/
@property (nonatomic, assign) NSTimeInterval interval;

/**
*  Create an SMS verification code input box.
*  @param frame     The position and size in the parent class.
*  @param interval  The wait time before an SMS message is sent.
*  @return          The input box for the text message verification code.
*/
- (AUTextCodeInputBox *)initWithFrame:(CGRect)frame interval:(NSTimeInterval)interval;

/**
*  Create an SMS verification code input box.
*  @param originY   The Y-coordinate of the component.
*  @param interval  The wait time before an SMS message is sent.
*  @return          The input box for the text message verification code.
*/
- (AUTextCodeInputBox *)initWithOriginY:(CGFloat)originY interval:(NSTimeInterval)interval;

/**
*  Set a block to be executed when countdown ends.
*  @param block     The block to be executed.
*/
- (void)setCountdownDidCompleteBlock:(void (^)(void))block;

Code sample

AUTextCodeInputBox *smsInputBox = [[AUTextCodeInputBox alloc] initWithOriginY:startY interval:60];
[smsInputBox.actionButton addTarget:self action:@selector(onSmsButtonClicked:) forControlEvents:UIControlEventTouchUpInside]; // The callback for processing the event that the button on the right is tapped.
[self.view addSubview:smsInputBox];
