## x13_arima

Autoregressive Integrated Moving Average Model (ARIMA) is a famous time series prediction method defined by Box and Jenkins in the early 1970s. Therefore, this model is also called the Box-Jenkins model or the Box-Jenkins approach.

x13-arima is an ARIMA algorithm based on the open-source X-13ARIMA-SEATS seasonal adjustment.

For more information about X-13ARIMA-SEATS Seasonal Adjustment Program, visit wiki.

For more information about ARIMA, visit wiki.

#### PAI command

`PAI -name x13_arima`

`-project algo_public`

`-DinputTableName=pai_ft_x13_arima_input`

`-DseqColName=id`

`-DvalueColName=number`

`-Dorder=3,1,1`

`-Dstart=1949.1`

`-Dfrequency=12`

`-Dseasonal=0,1,1`

`-Dperiod=12`

`-DpredictStep=12`

`-DoutputPredictTableName=pai_ft_x13_arima_out_predict`

`-DoutputDetailTableName=pai_ft_x13_arima_out_detail`

#### Parameter description

Parameter | Description | Value range | Required/Optional, default value/act |
---|---|---|---|

inputTableName | Input table | Table name | Required |

inputTablePartitions | Partitions used for training in the input table, in the format of partition_name=value. The multilevel format is name1=value1/name2=value2. Multiple partitions are separated by commas (,). | Partition name | (Optional) All partitions are selected by default. |

seqColName | Time series column | Column name | (Required) It is used only to sort valueColNames, and the value is irrelevant to the algorithm. |

valueColName | Value column | Column name | Required |

groupColNames | Grouping column. Multiple columns are separated by commas (,), such as col0,col1. A time series is created for each group. | Column name | Optional |

order | p, d, and q respectively represent the autoregressive coefficient, difference, and moving regression coefficient. | p, d, and q are non-negative integers in the range of [0, 36]. | Required |

start | Time series start date | String, in the format of year.seasonal, such as 1986.1 Time series format description |
Optional; default value: 1.1 |

frequency | Frequency of time series | Positive integer in the range of (0, 12] Time series format description |
Optional; default value: 12, indicating 12 months/year |

seasonal | sp, sd, and sq respectively represent the seasonal autoregressive coefficient, seasonal difference, and seasonal moving regression coefficient. | sp, sd, and sq are all non-negative integers in the range of [0, 36]. | Optional; default value: not seasonal |

period | Seasonal period | Number in the range of (0, 100] | Optional; default value: frequency |

maxiter | Maximum number of iterations | Positive integer | Optional; default value: 1500 |

tol | Tolerance | Double type | Optional; default value: 1e-5 |

predictStep | Number of prediction items | Number in the range of (0, 365] | Optional; default value: 12 |

confidenceLevel | Prediction confidence level | Number in the range of (0, 1) | Optional; default: 0.95 |

outputPredictTableName | Prediction output table name | Table name | Required |

outputDetailTableName | Detail table | Table name | Required |

outputTablePartition | Partitions in the output table | Partition name | Optional, not output to the partition by default |

coreNum | Number of nodes | Paired with the memSizePerCore parameter, positive integer | (Optional) Automatically calculated by default |

memSizePerCore | Memory size of each node, in MB | Positive integer in the range of [1024, 64*1024] | (Optional) Automatically calculated by default |

lifecycle | (Optional) Lifecycle of the output table | Positive integer | No lifecycle |

#### Time series format

The start and frequency parameters specify the two time dimensions of data (valueColName), TS1 and TS2. The frequency parameter represents the data frequency within a cycle, namely, the frequency of TS2 in each TS1. The start parameter is in the format of n1.n2, which indicates that the start date is the N2 TS2 in the N1 TS1.

Unit time | ts1 | ts2 | frequency | start |
---|---|---|---|---|

12 months/Year | Year | Month | 12 | 1949.2 represents the 2nd month of the 1949th year. |

Four seasons/year | Year | Season | 4 | 1949.2 represents the second quarter of the 1949th year. |

Seven days/week | Week | Day | 7 | 1949.2 represents the second day of the 1949th week. |

1 | Any time unit | 1 | 1 | 1949.1 represents the 1949th (year, day, hour, and so on). |

For example, value=[1,2,3,5,6,7,8,9,10,11,12,13,14,15]

- start=1949.3, frequency=12 indicates that the data frequency is monthly per year, and the prediction start date is 1950.06.

year | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec |
---|---|---|---|---|---|---|---|---|---|---|---|---|

1949 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||

1950 | 11 | 12 | 13 | 14 | 15 |

- start=1949.3, frequency=4 indicates that the data frequency is quarterly per year, and the prediction start date is 1953.02.

year | Qtr1 | Qtr2 | Qtr3 | Qtr4 |
---|---|---|---|---|

1949 | 1 | 2 | ||

1950 | 3 | 4 | 5 | 6 |

1951 | 7 | 8 | 9 | 10 |

1952 | 11 | 12 | 13 | 14 |

1953 | 14 |

- start=1949.3, frequency=7 indicates that the data frequency is daily per week, and the prediction start date is 1951.04.

week | Sun | Mon | Tue | Wed | Thu | Fri | Sat |
---|---|---|---|---|---|---|---|

1949 | 1 | 2 | 3 | 4 | 5 | ||

1950 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |

1951 | 13 | 14 | 15 |

- start=1949.1, frequency=1 can represent any time unit, and the prediction start date is 1963.00.

cycle | p1 |
---|---|

1949 | 1 |

1950 | 2 |

1951 | 3 |

1951 | 4 |

1952 | 5 |

1953 | 6 |

1954 | 7 |

1955 | 8 |

1956 | 9 |

1957 | 10 |

1958 | 11 |

1959 | 12 |

1960 | 13 |

1961 | 14 |

1962 | 15 |

#### Example

**Test data**

Used data: AirPassengers.

This data set is the number of passengers for international airlines each month from 1949 to 1960, as shown in the following table.

id | number |
---|---|

1 | 112 |

2 | 118 |

3 | 132 |

4 | 129 |

5 | 121 |

… | … |

Upload data by tuunel. The command is as follows.

`create table pai_ft_x13_arima_input(id bigint,number bigint);`

`tunnel upload data/airpassengers.csv pai_ft_x13_arima_input -h true;`

**PAI command**

`PAI -name x13_arima`

`-project algo_public`

`-DinputTableName=pai_ft_x13_arima_input`

`-DseqColName=id`

`-DvalueColName=number`

`-Dorder=3,1,1`

`-Dseasonal=0,1,1`

`-Dstart=1949.1`

`-Dfrequency=12`

`-Dperiod=12`

`-DpredictStep=12`

`-DoutputPredictTableName=pai_ft_x13_arima_out_predict`

`-DoutputDetailTableName=pai_ft_x13_arima_out_detail`

**Output description**

- Output table: outputPredictTableName.

The fields are:Data display:column name comment pdate Prediction date forecast Prediction conclusion lower Lower threshold of the prediction conclusion when the confidence level is confidenceLevel (default: 0.95) upper Upper threshold of the prediction conclusion when the confidence level is confidenceLevel (default: 0.95)

Output table: outputDetailTableName.

The fields are:Data display:column name comment key model: indicates the model.

evaluation: indicates the evaluation result.

parameters: indicates training parameters.

log: indicates the training log.summary Storage details

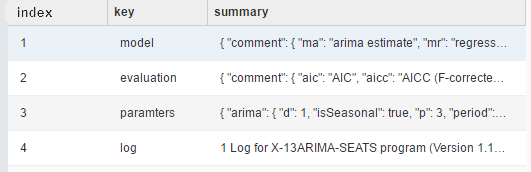

Display on the PAI web - Model factor (key=model)

Display on the PAI web - Evaluation index (key=evaluation)

#### Algorithm scale

Supported scale

Rows: a maximum of 1200 rows in a single group

Columns: 1 data column

Resource calculation method

Default calculation method used when groupColNames is not set

coreNum = 1

memSizePerCore = 4096Default calculation method used when groupColNames is set

coreNum = floor (total number of data rows / 120,000)

memSizePerCore = 4096

## x13_auto_arima

x13-auto-arima includes an automatic ARIMA model selection procedure based largely on the procedure of Gomez and Maravall (1998) as implemented in TRAMO (1996) and subsequent revisions.

The x13-auto-arima selection process is as follows:

Default model estimation.

- When frequency is 1, the default model is (0,1,1).
- When frequency is greater than 1, the default model is (0,1,1)(0,1,1).

Identication of dierencing orders.

- Skip this step if you set diff and seasonalDiff.
- Determine the difference d and the seasonal difference D by using the Unit root test (wiki ).

Identication of ARMA model orders.

Select the optimal model based on BIC(wiki), and the maxOrder and maxSeasonalOrder parameters are used in this step.

Comparison of identified model with default model.

Compare models by using Ljung-Box Q statistic(wiki). If both models are unacceptable, use the (3,d,1)(0,D,1) model.

Final model checks.

#### PAI command line

`PAI -name x13_auto_arima`

`-project algo_public`

`-DinputTableName=pai_ft_x13_arima_input`

`-DseqColName=id`

`-DvalueColName=number`

`-Dstart=1949.1`

`-Dfrequency=12`

`-DpredictStep=12`

`-DoutputPredictTableName=pai_ft_x13_arima_out_predict2`

`-DoutputDetailTableName=pai_ft_x13_arima_out_detail2`

#### Parameter description

Parameter | Description | Value range | Required/Optional, default value/act |
---|---|---|---|

inputTableName | Input table | Table name | Required |

inputTablePartitions | Partitions used for training in the input table, in the format of partition_name=value. The multilevel format is name1=value1/name2=value2. Multiple partitions are separated by commas (,). | Partition name | (Optional) All partitions are selected by default. |

seqColName | Time series column | Column name | (Required) It is used only to sort valueColNames, and the value is irrelevant to the algorithm. |

valueColName | Value column | Column name | Required |

groupColNames | Grouping column. Multiple columns are separated by commas (,), such as col0,col1. A time series is created for each group. | Column name | Optional |

start | Time series start date | String, in the format of year.seasonal, such as 1986.1 Time series format description |
Optional; default value: 1.1 |

frequency | Frequency of time series | Positive integer in the range of (0, 12] Time series format description |
Optional; default value: 12, indicating 12 months/year |

maxOrder | Maximum values of p and q | Non-negative integer in the range of [0, 4] | Optional; default value: 2 |

maxSeasonalOrder | Maximum values of seasonal p and q | Non-negative integer in the range of [0, 2] | Optional; default value: 1 |

maxDiff | Maximum value of differential d | Non-negative integer in the range of [0, 2] | Optional; default value: 2 |

maxSeasonalDiff | Maximum value of seasonal differential d | Non-negative integer in the range of [0,1] | Optional; default value: 1 |

diff | Differential d | Non-negative integer in the range of [0, 2] When both diff and maxDiff are set, maxDiff is ignored. diff and seasonalDiff must be both set. |
Optional; default value: -1; no diff specified |

seasonalDiff | Seasonal differential d | Non-negative integer in the range of [0, 1] When both seasonalDiff and maxSeasonalDiff are set, maxSeasonalDiff is ignored. |
Optional; default value: -1; no seasonalDiff specified |

maxiter | Maximum number of iterations | Positive integer | Optional; default value: 1500 |

tol | Tolerance | Double type | Optional; default value: 1e-5 |

predictStep | Number of prediction items | Number in the range of (0, 365] | Optional; default value: 12 |

confidenceLevel | Prediction confidence level | Number in the range of (0, 1) | Optional; default: 0.95 |

outputPredictTableName | Prediction output table name | Table name | Required |

outputDetailTableName | Detail table | Table name | Required |

outputTablePartition | Partitions in the output table | Partition name | Optional, not output to the partition by default |

coreNum | Number of nodes | Paired with the memSizePerCore parameter, positive integer | (Optional) Automatically calculated by default |

memSizePerCore | Memory size of each node, in MB | Positive integer in the range of [1024, 64*1024] | (Optional) Automatically calculated by default |

lifecycle | (Optional) Lifecycle of the output table | Positive integer | No lifecycle |

#### Time series format

The start and frequency parameters specify the two time dimensions of data (valueColName), TS1 and TS2.The frequency parameter represents the data frequency within a cycle, namely, the frequency of TS2 in each TS1. The start parameter is in the format of n1.n2, which indicates that the start date is the N2 TS2 in the N1 TS1.

Unit time | ts1 | ts2 | frequency | start |
---|---|---|---|---|

12 months/Year | Year | Month | 12 | 1949.2 represents the 2nd month of the 1949th year. |

Four seasons/year | Year | Season | 4 | 1949.2 represents the second quarter of the 1949th year. |

Seven days/week | Day | Week | 7 | 1949.2 represents the second day of the 1949th week. |

1 | Any time unit | 1 | 1 | 1949.1 represents the 1949th (year, day, hour, and so on). |

For example, value=[1,2,3,5,6,7,8,9,10,11,12,13,14,15]

- start=1949.3, frequency=12 indicates that the data frequency is monthly per year, and the prediction start date is 1950.06.

year | Jan | Feb | Mar | Apr | May | Jun | Jul | Aug | Sep | Oct | Nov | Dec |
---|---|---|---|---|---|---|---|---|---|---|---|---|

1949 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||

1950 | 11 | 12 | 13 | 14 | 15 |

- start=1949.3, frequency=4 indicates that the data frequency is quarterly per year, and the prediction start date is 1953.02.

year | Qtr1 | Qtr2 | Qtr3 | Qtr4 |
---|---|---|---|---|

1949 | 1 | 2 | ||

1950 | 3 | 4 | 5 | 6 |

1951 | 7 | 8 | 9 | 10 |

1952 | 11 | 12 | 13 | 14 |

1953 | 14 |

- start=1949.3, frequency=7 indicates that the data frequency is daily per week, and the prediction start date is 1951.04.

week | Sun | Mon | Tue | Wed | Thu | Fri | Sat |
---|---|---|---|---|---|---|---|

1949 | 1 | 2 | 3 | 4 | 5 | ||

1950 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |

1951 | 13 | 14 | 15 |

- start=1949.1, frequency=1 can represent any time unit, and the prediction start date is 1963.00.

cycle | p1 |
---|---|

1949 | 1 |

1950 | 2 |

1951 | 3 |

1951 | 4 |

1952 | 5 |

1953 | 6 |

1954 | 7 |

1955 | 8 |

1956 | 9 |

1957 | 10 |

1958 | 11 |

1959 | 12 |

1960 | 13 |

1961 | 14 |

1962 | 15 |

#### Example

**Test data**

Used data: AirPassengers

This data set is the number of passengers for international airlines each month from 1949 to 1960, as shown in the following table.

id | number |
---|---|

1 | 112 |

2 | 118 |

3 | 132 |

4 | 129 |

5 | 121 |

… | … |

Upload data by tuunel. The command is as follows.

`create table pai_ft_x13_arima_input(id bigint,number bigint);`

`tunnel upload data/airpassengers.csv pai_ft_x13_arima_input -h true;`

**PAI command**

`PAI -name x13_auto_arima`

`-project algo_public`

`-DinputTableName=pai_ft_x13_arima_input`

`-DseqColName=id`

`-DvalueColName=number`

`-Dstart=1949.1`

`-Dfrequency=12`

`-DmaxOrder=4`

`-DmaxSeasonalOrder=2`

`-DmaxDiff=2`

`-DmaxSeasonalDiff=1`

`-DpredictStep=12`

`-DoutputPredictTableName=pai_ft_x13_arima_auto_out_predict`

`-DoutputDetailTableName=pai_ft_x13_arima_auto_out_detail`

**Output description**

- Output table: outputPredictTableName.

The fields are:Data display:column name comment pdate Prediction date forecast Prediction conclusion lower Lower threshold of the prediction conclusion when the confidence level is confidenceLevel (default: 0.95) upper Upper threshold of the prediction conclusion when the confidence level is confidenceLevel (default: 0.95)

- Output table: outputDetailTableName.

The fields are:

column name | comment |
---|---|

key | model: indicates the model. evaluation: indicates the evaluation result. parameters: indicates training parameters. log: indicates the training log. |

summary | Storage details |

Display on the PAI web - Model factor (key=model)

Display on the PAI web - Evaluation index (key=evaluation)

#### Algorithm scale

Supported scale

Rows: a maximum of 1200 rows in a single group

Columns: 1 data column

Resource calculation method

Default calculation method used when groupColNames is not set

coreNum = 1

memSizePerCore = 4096Default calculation method used when groupColNames is set

coreNum = floor (total number of data rows / 120,000)

memSizePerCore = 4096

#### Important notes

Why are the prediction results the same?

When an exception occurs during model training, the mean model is called, and all prediction results are the mean of the training data.

Common exceptions include “Not stationary after timing differential diff”, “training does not converge”, “variance is 0”. You can view the stderr file of individual nodes in the logview to obtain exception details.
