This topic describes how to configure an area chart to display query results.

Background information

An area chart is built based on a line chart. The colored section between a line and the axis is an area. The color is used to highlight the trend. Similar to a line chart, an area chart shows the numeric value changes over a specified time period. It is used to highlight the overall data trend. Both the line chart and the area chart display the trend and relationship between numeric values instead of specific values.

Each area chart consists of the following elements:
  • X-axis (horizontal)
  • Y-axis (vertical)
  • Area segment

Procedure

  1. Log on to the Log Service console.
  2. In the Projects section, click the name of the project that you want to manage.
  3. Choose Log Storage > Logstores, and then click the Logstore that you want to manage.
  4. Enter a query statement in the search box, specify a time range, and then click Search & Analyze.
  5. On the Graph tab, click the Area chart - 001 icon.
  6. On the Properties tab, configure the properties of the area chart.
    Note In an area chart, a single area segment must contain more than two data points. Otherwise, the data trend cannot be analyzed. We recommend that you select less than five area segments in an area chart.
    Parameter Description
    X Axis The sequential data. In most cases, time series is selected.
    Y Axis The numeric data. You can select one or more fields for the Y-axis.
    Legend The position where the legend is located in the chart. Valid values: Top, Bottom, Left, and Right.
    Format The format in which data is displayed.
    Y-axis Minimum Value The custom minimum value of the Y-axis.
    Y-axis Maximum Value The custom maximum value of the Y-axis.
    Legend Width The width of the legend.
    X-axis Scale Density The scale density of the X-axis.
    Metric Filter If you turn on the Metric Filter switch, you can filter metrics to view specific types of data.
    Stacking If you turn on the Stacking switch, the Y-axis data is stacked.
    Margin The distance between the axis and the borders of the chart. This includes the Top Margin, Bottom Margin, Left Margin, and Right Margin.

Example of a simple area chart

To query the page views (PVs) of the IP address 10.0.0.0 in the last 24 hours, execute the following query statement:

remote_addr: 10.0.0.0 | select date_format(date_trunc('hour', __time__), '%m-%d %H:%i') as time, count(1) as PV group by time order by time limit 1000

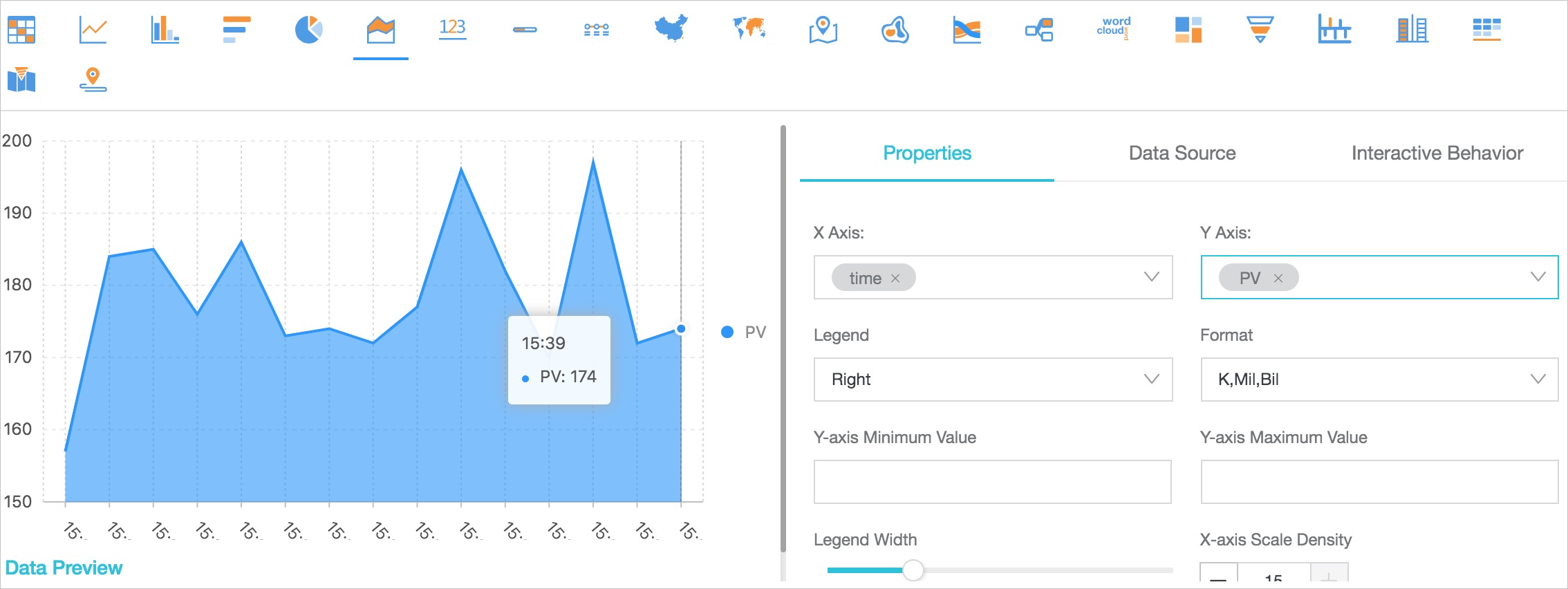

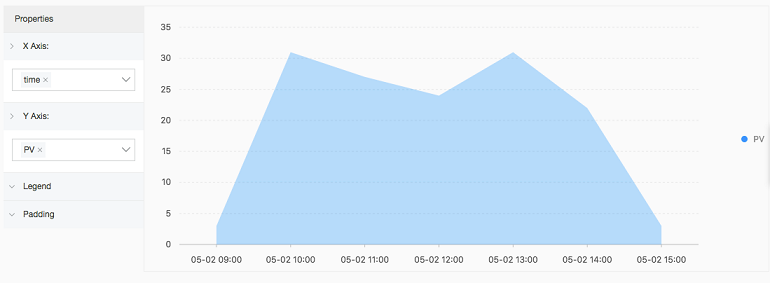

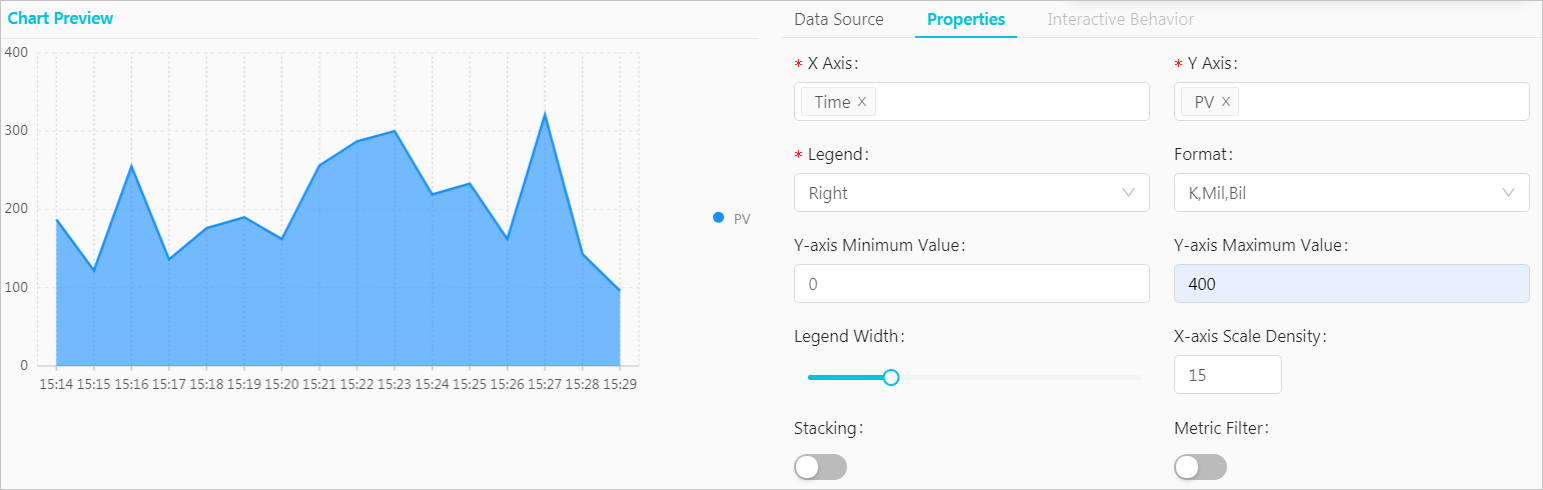

Select time for the X-axis and PV for the Y-axis.1

Example of a cascade chart

* | select date_format(date_trunc('hour', __time__), '%m-%d %H:%i') as time, count(1) as PV, approx_distinct(remote_addr) as UV group by time order by time limit 1000

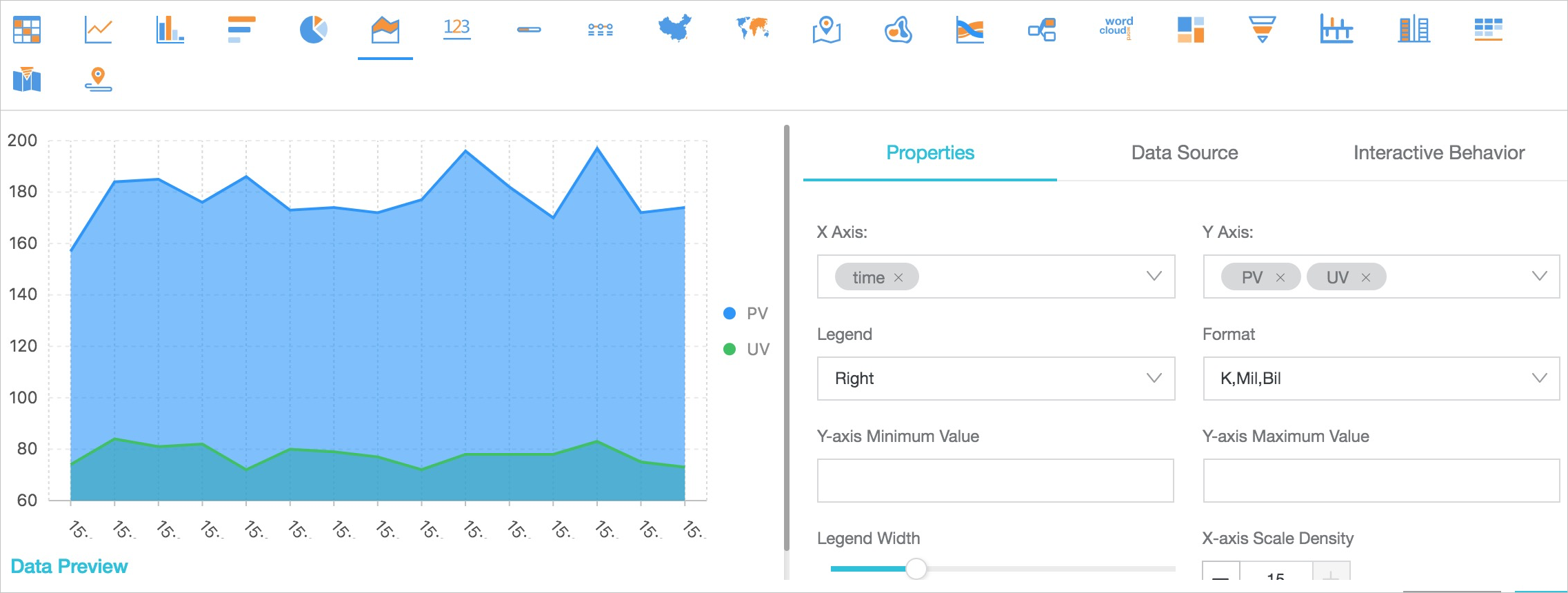

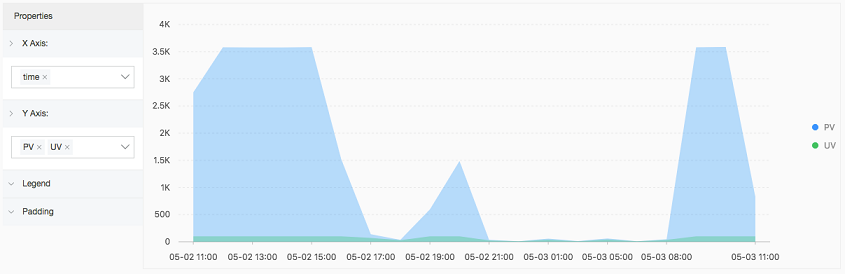

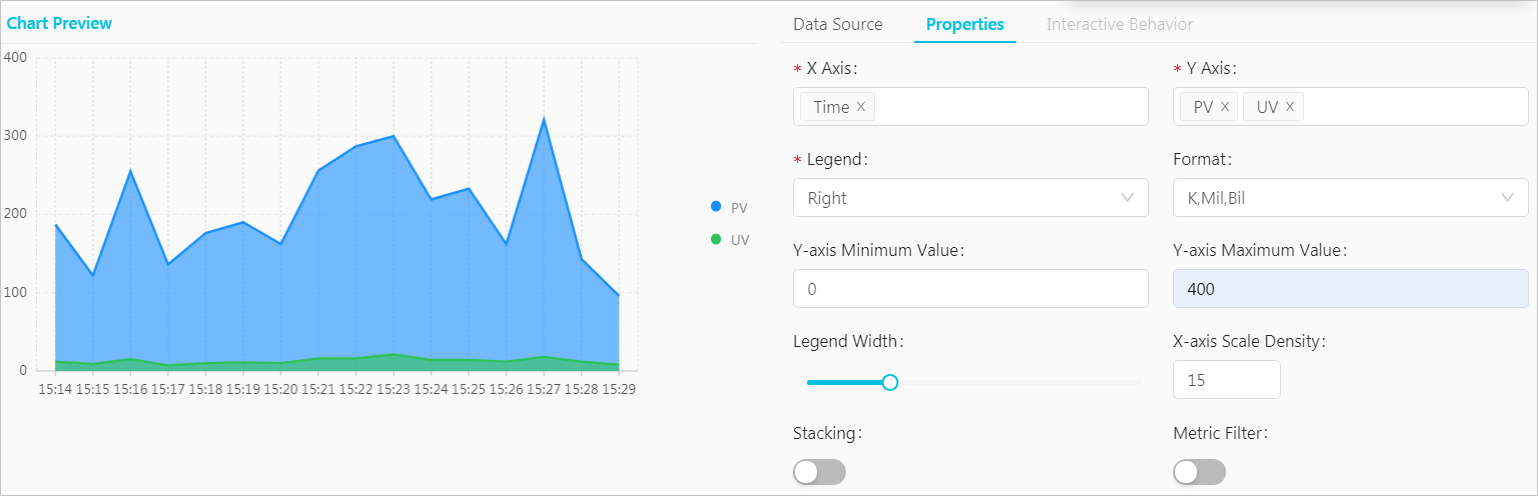

Select time for the X-axis. Select PV and UV for the Y-axis.2
