This topic describes how to use an ROS template to deploy WordPress and phpMyAdmin.

Background information

If you do not have the technical abilities to build and manage a website in-house but do have a content management team, you can use an ROS template to manage a website. If your website has higher requirements for customization, availability, and scalability, you must use a different solution to manage your website.

The template named WordPressCluster-phpMyAdmin.ros described in this topic can address high availability and scalability requirements. You can use this template to create a stack that contains resources such as VPCs, SLB instances, Auto Scaling groups, ECS instances, and ApsaraDB for RDS instances. You can also configure Auto Scaling and deploy WordPress and phpMyAdmin to create and configure instances as needed.

Architecture overview

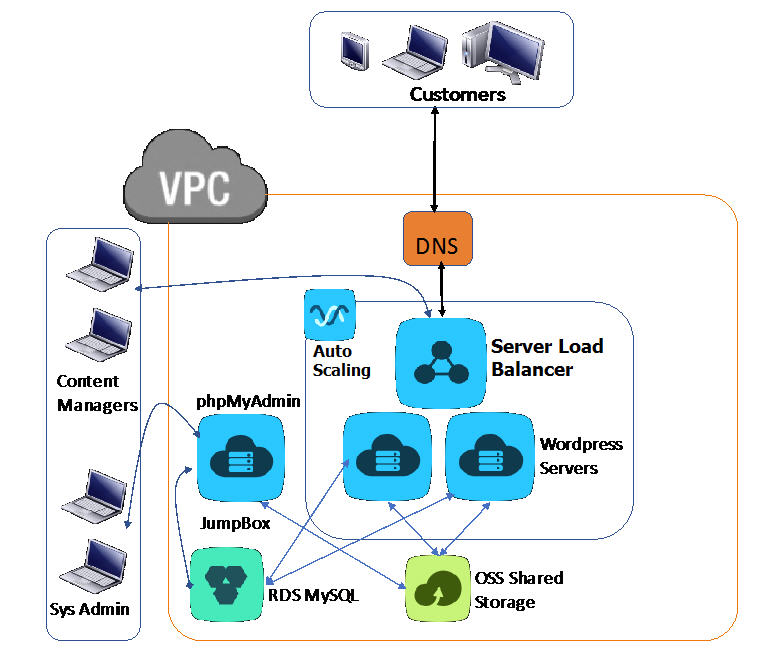

The following figure shows how to use the WordPressCluster-phpMyAdmin.ros template to create a stack.

Framework

The following types of users can access the infrastructure shown in the preceding figure:

  • End users

    End users can access websites hosted on WordPress through URLs.

    WordPress is deployed on Apache web servers. The root directory for storing files from the web servers is /wwwroot. The OSS bucket where the root directory is located is shared by the web servers through OSSFS, a FUSE-based file system provided by Alibaba Cloud.

    RAM users can be granted permissions to access the OSS bucket and mount it onto ECS instances.

    An ApsaraDB RDS for MySQL database is used to store WordPress content. End users can access the database from web servers by using an internal connection string.

  • System administrators

    System administrators can log on to JumpBox (bastion host) through SSH and access a VPC.

    JumpBox has an Elastic IP address (EIP) and is accessible through the Internet.

    System administrators can access a VPC by using JumpBox and then manage instances within the VPC.

    phpMyAdmin is installed on JumpBox and is therefore also accessible through the Internet.

    System administrators can use phpMyAdmin to manage their ApsaraDB for RDS databases.

  • Content owners

    Content owners can log on to the WordPress console through the Internet.

    They can manage all service access permissions through security groups based on system configurations.

Template overview

To download the template, click WordPressCluster-phpMyAdmin.ros.

Notice In this template, the ZoneId parameter is set to eu-central-1a and the ImageId parameter is set to m-gw8efmfk0y184zs0m0aj.

The zones and images that are available in your ROS console may differ. You can reconfigure the ZoneId and ImageId parameters in the template as needed.

The WordPressCluster-phpMyAdmin.ros template enables the system to create and configure resources such as VPCs, SLB instances, VSwitches, NAT gateways, ECS instances, EIPs, Auto Scaling groups, and ApsaraDB for RDS instances.

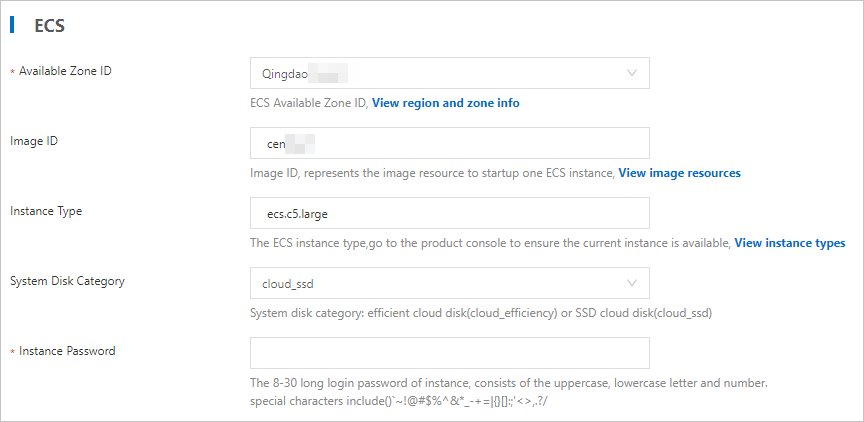

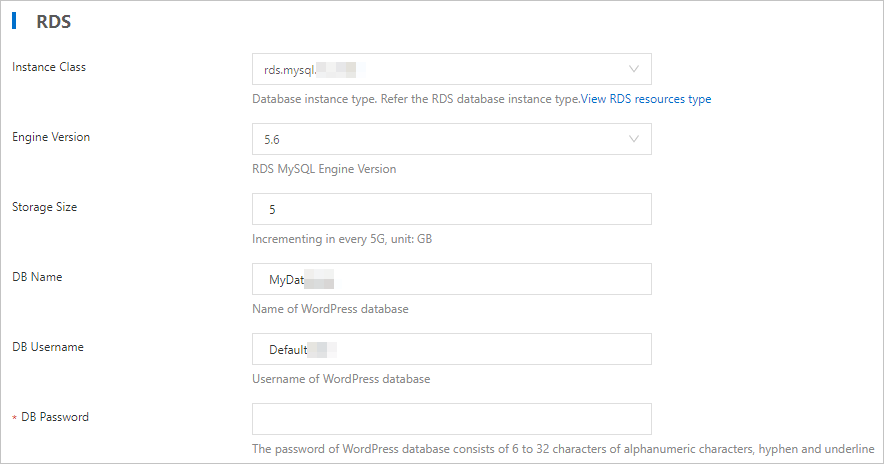

When you create a stack, configure the following parameters as needed. ECSRDS

The system installs the following applications on JumpBox based on the template: httpd, mysql-client, PHP, OSSFS, phpMyAdmin, and WordPress. Additionally, the system uses the UserData segment in the ALIYUN::ECS::Instance resource to configure these applications.

A snippet of the UserData segment is as follows:

"ossbucketendpoint=",
 {
 "Ref": "OSSBucketEndPoint"
 },
 "\n",
 "DatabaseUser=",
 {
 "Ref": "MasterUserName"
 },
 "\n",
 "DatabasePwd=",
 {
 "Ref": "MasterDBPassword"
 },
 "\n",
 "DatabaseName=",
 {
 "Ref": "DBName"
 },
 "\n",
 "DatabaseHost=",
 {
 "Fn::GetAtt": ["Database", "InnerConnectionString"]
 },
 "\n",
 "yum install -y curl httpd mysql-server php php-common php-mysql\n",
 "yum install -y php-gd php-imap php-ldap php-odbc php-pear php-xml php-xmlrpc\n",
 "yum install -y phpmyadmin\n",
 "sed -i \"s%localhost%$DatabaseHost%\" /etc/phpMyAdmin/config.inc.php\n",
 "sed -i \"s%Deny,Allow%Allow,Deny%\" /etc/httpd/conf.d/phpMyAdmin.conf\n",
 "sed -i \"s%Deny from All%Allow from All%\" /etc/httpd/conf.d/phpMyAdmin.conf\n",
 "sed -i \"/<RequireAny>/a Require all Granted\" /etc/httpd/conf.d/phpMyAdmin.conf\n",
 "chkconfig httpd on\n",
 "service httpd stop\n",
 "wget
 https://github.com/aliyun/ossfs/releases/download/v1.80.3/ossfs_1.80.3_centos6.5_x86_64.rpm\n",
 "yum install -y ossfs_1.80.3_centos6.5_x86_64.rpm\n",
 "echo $ossbucket:$ossbucketaccesskey:$ossbucketsecret >> /etc/passwd-ossfs\n",
 "chmod 600 /etc/passwd-ossfs\n",
 "mkdir $ossbucketmountpoint\n",
 "chmod -R 755 $ossbucketmountpoint\n",
 "echo #This script will automount the ossbucket\n",
 "echo umount $ossbucketmountpoint >> /usr/local/bin/ossfs-automount.sh\n",
 "echo #Mounting OSS Bucket\n",
            "echo ossfs $ossbucket $ossbucketmountpoint -ourl=http://$ossbucketendpoint -o allow_other -o mp_umask=0022 -ouid=48 -ogid=48 >> /usr/local/bin/ossfs-automount.sh\n",
"chmod 755 /usr/local/bin/ossfs-automount.sh\n",
"echo /usr/local/bin/ossfs-automount.sh >> /etc/rc.d/rc.local\n",
"chmod +x /etc/rc.d/rc.local\n",
"/usr/local/bin/./ossfs-automount.sh\n",
"wget http://WordPress.org/latest.tar.gz\n",
"tar -xzvf latest.tar.gz\n",
"sed -i \"s%database_name_here%$DatabaseName%\" WordPress/wp-config-sample.php\n",
"sed -i \"s%username_here%$DatabaseUser%\" WordPress/wp-config-sample.php\n",
"sed -i \"s%password_here%${DatabasePwd:-$DatabasePwdDef}%\" WordPress/wp-config-sample.php\n",
"sed -i \"s%localhost%$DatabaseHost%\" WordPress/wp-config-sample.php\n",
"mv WordPress/wp-config-sample.php WordPress/wp-config.php\n",
"cp -a WordPress/* $ossbucketmountpoint\n",
"chmod -R 755 /wwwroot/*\n",
"rm -rf WordPress*\n",
"service httpd start\n",
"done\n"

The system uses the UserData segment to deploy WordPress in an OSS bucket. Then, the system mounts the OSS bucket to the web servers created by Auto Scaling. This ensures that all the web servers can obtain the latest content from the root directory.

The system uses the UserData segment of the Auto Scaling configuration to install and configure httpd, PHP, and ossutil, mount DocumentRoo, and start all services.

A snippet of the UserData segment of the Auto Scaling configuration is as follows:

 "DatabaseHost=",
              {
                "Fn::GetAtt": ["Database", "InnerConnectionString"]
              },
              "\n",
              "yum install -y curl httpd mysql-server php php-common php-mysql\n",
              "yum install -y php-gd php-imap php-ldap php-odbc php-pear php-xml php-xmlrpc\n",
              "chkconfig httpd on\n",
              "service httpd stop\n",
              "DocumentRoot='/var/www/html'\n",
              "sed -i \"s%$DocumentRoot%$ossbucketmountpoint%\" /etc/httpd/conf/httpd.conf\n",
              "Directory='/var/www'\n",
              "sed -i \"s%$Directory%$ossbucketmountpoint%\" /etc/httpd/conf/httpd.conf\n",
"wget https://github.com/aliyun/ossfs/releases/download/v1.80.3/ossfs_1.80.3_centos6.5_x86_64.rpm\n",
              "yum install -y ossfs_1.80.3_centos6.5_x86_64.rpm\n",
              "echo $ossbucket:$ossbucketaccesskey:$ossbucketsecret >> /etc/passwd-ossfs\n",
              "chmod 600 /etc/passwd-ossfs\n",
              "mkdir $ossbucketmountpoint\n",
              "chmod -R 755 $ossbucketmountpoint\n",
              "echo #This script will automount the ossbucket\n",
              "echo umount $ossbucketmountpoint >> /usr/local/bin/ossfs-automount.sh\n",
              "echo #Mounting OSS Bucket\n",
              "echo ossfs $ossbucket $ossbucketmountpoint -ourl=http://$ossbucketendpoint -o allow_other -o mp_umask=0022 -ouid=48 -ogid=48 >> /usr/local/bin/ossfs-automount.sh\n",
              "chmod 755 /usr/local/bin/ossfs-automount.sh\n",
              "echo /usr/local/bin/ossfs-automount.sh >> /etc/rc.d/rc.local\n",
              "chmod +x /etc/rc.d/rc.local\n",
              "/usr/local/bin/./ossfs-automount.sh\n",
              "chmod -R 755 /wwwroot/*\n",
              "service httpd start\n",
              "done\n"
            ]
