This topic describes how to integrate Kafka with Ranger and how to configure related permissions.

Prerequisites

An E-MapReduce (EMR) Hadoop cluster is created, and Ranger is selected from the optional services during the cluster creation. For more information about how to create a cluster, see Create a cluster.

Integrate Kafka with Ranger

  1. Enable Kafka in Ranger.
    1. Log on to the EMR console.
    2. In the top navigation bar, select the region where your cluster resides and select a resource group based on your business requirements.
    3. Click the Cluster Management tab.
    4. On the Cluster Management page, find your cluster and click Details in the Actions column.
    5. In the left-side navigation pane, choose Cluster Service > RANGER. On the page that appears, choose Actions > EnabledKafka in the upper-right corner.
      Enable Kafka PLUGIN
    6. In the Cluster Activities dialog box, configure relevant parameters and click OK. In the Confirm message, click OK.
      Click History in the upper-right corner to view the task progress.
  2. Add the Kafka service on the web UI of Ranger.
    1. Log on to Ranger. For more information, see Overview.
    2. Add the Kafka service.
      Ranger WebUI

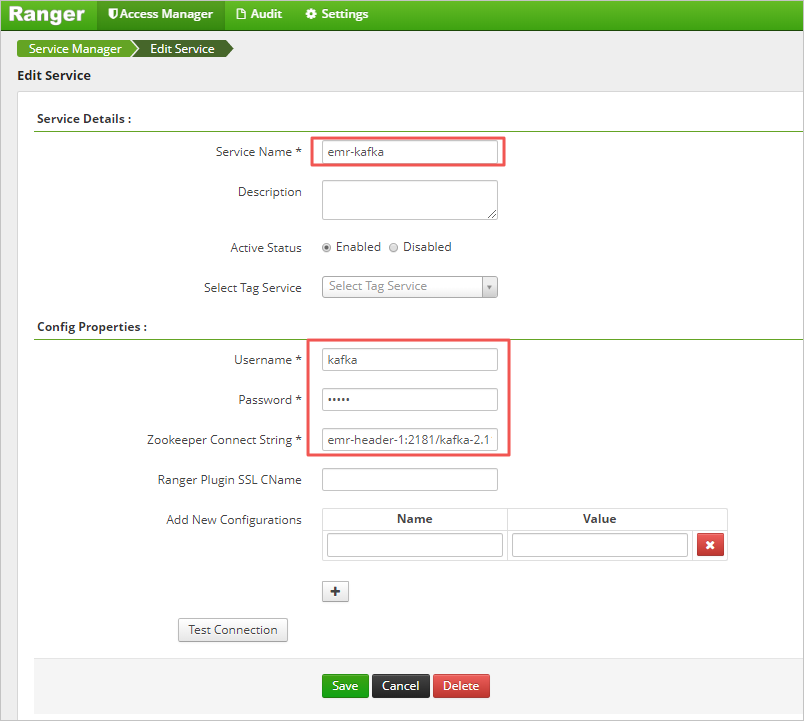

    3. Configure the Kafka service.
      add_service
      Parameter Description
      Service Name Set the value to emr-kafka.
      Username Set the value to kafka.
      Password Enter a custom value.
      Zookeeper Connect String Enter a value in the format of emr-header-1:2181/kafka-x.xx.
      Note Configure kafka-x.xx based on the actual Kafka version.
    4. Click Add.
  3. Restart the Kafka broker.
    1. In the left-side navigation pane, choose Cluster Service > Kafka.
    2. On the page that appears, choose Actions > Restart Kafka Broker in the upper-right corner.
    3. In the Cluster Activities dialog box, configure relevant parameters and click OK. In the Confirm message, click OK.
      Click History in the upper-right corner to view the task progress.

Example of permission configuration

After Kafka is integrated with Ranger, you can configure Kafka permissions in Ranger.
Notice By default, Ranger generates the all - topic policy in a standard cluster after the Kafka service is added. This policy does not limit the permissions of users but allows users to perform all operations. In this case, Ranger cannot control the permissions of the users.

Take user test as an example. To grant the Publish permission to user test, perform the following steps:

  1. Log on to Ranger. For more information, see Overview.
  2. Click emr-kafka.
    click_emr_kafka
  3. Click Add New Policy in the upper-right corner.
  4. Configure parameters.
    add_Policy
    Parameter Description
    Policy Name The name of the policy. You can customize a name.
    topic The topic on which permissions are configured. You can specify multiple topics. Press Enter after you specify each topic.
    Select Group The user group to which you want to add this policy.
    Select User The user to whom you want to add this policy.
    Permissions The permissions to be granted. Click add_permissions and select Publish.

    Click add_permissions below Select Group to authorize multiple groups.

  5. Click Add.
    After the policy is created, authorization is completed. User test can write data into the test topic.
    Note After you add, remove, or modify a policy, it takes about one minute for the configuration to take effect.
