Log Service uses Logtail to collect Kubernetes cluster logs and manages collection configuration through custom resource definition (CRD).  This document describes how to install and use Logtail to collect Kubernetes cluster logs.

Configuration process

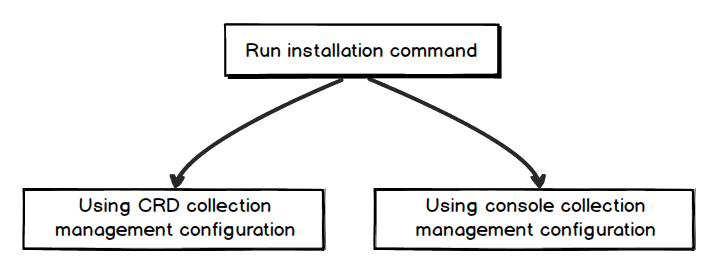

Figure 1. Configuration process
  1. Run the installation command to install the alibaba-log-controller Helm package.
  2. Choose the CRD or console to manage collection configuration as required.

Step 1 Install Logtail

Installation of Kubernetes on Alibaba Cloud Container Service

Procedure
  1. Log on to the master node of your Alibaba Cloud Container Service Kubernetes. For more information, see Access Kubernetes clusters by using SSH.
  2. Replace ${your_k8s_cluster_id} in the following command with your Kubernetes cluster ID and run the command:
    wget http://logtail-release-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/kubernetes/alicloud-log-k8s-install.sh -O alicloud-log-k8s-install.sh; chmod 744 ./alicloud-log-k8s-install.sh; sh ./alicloud-log-k8s-install.sh ${your_k8s_cluster_id}

    After installation, Log Service automatically creates a Log Service project in the same region of your Kubernetes cluster. The name of the created project is k8s-log-${your_k8s_cluster_id}. Under the project, machine group k8s-group-${your_k8s_cluster_id}} is created automatically.

    Note
    • The config-operation-log Logstore, which is used to store operational logs of alibaba-log-controller, is automatically created under the k8s-log-${your_k8s_cluster_id} project. You cannot delete this Logstore because it is required for alibaba-log-controller troubleshooting.
    • To store the collected logs in an existing project, run the sh ./alicloud-log-k8s-install.sh${your_k8s_cluster_id}${your_project_name} installation command and confirm that the project belongs to the region where your Kubernetes cluster is deployed.
Installation example
After successful execution, the following information is displayed:
[root@iZbp******biaZ ~]# wget http://logtail-release-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/kubernetes/alicloud-log-k8s-install.sh -O alicloud-log-k8s-install.sh; chmod 744 ./alicloud-log-k8s-install.sh; sh ./alicloud-log-k8s-install.sh c12ba20**************86939f0b
....
....
....
alibaba-cloud-log/Chart.yaml
alibaba-cloud-log/templates/
alibaba-cloud-log/templates/_helpers.tpl
alibaba-cloud-log/templates/alicloud-log-crd.yaml
alibaba-cloud-log/templates/logtail-daemonset.yaml
alibaba-cloud-log/templates/NOTES.txt
alibaba-cloud-log/values.yaml
NAME:   alibaba-log-controller
LAST DEPLOYED: Wed May 16 18:43:06 2018
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1beta1/ClusterRoleBinding
NAME                    AGE
alibaba-log-controller  0s
==> v1beta1/DaemonSet
NAME     DESIRED  CURRENT  READY  UP-TO-DATE  AVAILABLE  NODE SELECTOR  AGE
logtail  2        2        0      2           0          <none>         0s
==> v1beta1/Deployment
NAME                    DESIRED  CURRENT  UP-TO-DATE  AVAILABLE  AGE
alibaba-log-controller  1        1        1           0          0s
==> v1/Pod(related)
NAME                                     READY  STATUS             RESTARTS  AGE
logtail-ff6rf                            0/1    ContainerCreating  0         0s
logtail-q5s87                            0/1    ContainerCreating  0         0s
alibaba-log-controller-7cf6d7dbb5-qvn6w  0/1    ContainerCreating  0         0s
==> v1/ServiceAccount
NAME                    SECRETS  AGE
alibaba-log-controller  1        0s
==> v1beta1/CustomResourceDefinition
NAME                                   AGE
aliyunlogconfigs.log.alibabacloud.com  0s
==> v1beta1/ClusterRole
alibaba-log-controller  0s
[SUCCESS] install helm package : alibaba-log-controller success.

You can run helm Status alibaba-log-controller to check the current states of pods. If all states are successful, installation is successful.

After successful installation, log on to the Log Service console. The Log Service project automatically created is displayed on the console. (If you have many projects, search the keyword k8s-log.)

Installation of managed Kubernetes clusters in Container Service

For more information about how to install Logtail in a managed Kubernetes cluster, see the Manually install Log Service components section in Use Log Service to collect Kubernetes cluster logs.

Self-built Kubernetes installation

Prerequisites
  1. The Kubernetes cluster must be version 1.8 or later.
  2. Helm 2.6.4 or later has been installed.
Installation procedure
  1. In the Log Service console, create a project. The project name must begin with k8s-log-custom-.
  2. In the following command, replace the parameters with your own, and run the command.
    wget http://logtail-release-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/kubernetes/alicloud-log-k8s-custom-install.sh; chmod 744 ./alicloud-log-k8s-custom-install.sh; sh ./alicloud-log-k8s-custom-install.sh {your-project-suffix} {region-id} {aliuid} {access-key-id} {access-key-secret}

    The parameters and their descriptions are as follows:

    Name Description
    {your-project-suffix}  The maid-later part of the project name that you created in the second step.k8s-log-custom- that you have created in the second step. For example, the created project is k8s-log-custom-xxxx, then you mast enter xxxx.
    {regionId}  The ID of the region where your project is located. You can view the Service endpoint, for example, the region ID of China East 1  (Hangzhou) is  cn-hangzhou
    {aliuid} User ID (AliUid), replace the parameter value with your Alibaba Cloud account ID of the string type. For more information about how to check the ID, see section 2.1 ofthe user identity configuration.
    {access-key-id} Your account access key ID. Sub-account access is recommended Key, and grant permission, specific settings reference.Authorization - Overview
    {access-key-secret}  Your account access key secret. We recommend that you use the sub-account AccessKey and  grant AliyunLogFullAccess permission. For more information, see Authorization - Overview.
    After installation, Log Service automatically creates a machine group in the project. The machine group name is k8s-group-${your_k8s_cluster_id}.
    Note
    • Logstore config-operation-log is automatically created in the project k8s-log-${your_k8s_cluster_id}. Do not delete this Logstore.
    • After self-built kubernetes installation, Logtail is granted privileged permissions to avoid the error during the deletion of other pods container text file busy  error during the deletion of other pods. For more information, see bug 1468249, bug 1441737, and issue 34538.
Installation example
The output of the successful execution is as follows:
[root@iZbp1dsxxxxxqfbiaZ ~]#  wget http://logtail-release-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/kubernetes/alicloud-log-k8s-custom-install.sh; chmod 744 ./alicloud-log-k8s-custom-install.sh; sh ./alicloud-log-k8s-custom-install.sh xxxx cn-hangzhou 165xxxxxxxx050 LTAxxxxxxxxxxx AIxxxxxxxxxxxxxxxxxxxxxxxxxxxxxe
....
....
....
NAME:   alibaba-log-controller
LAST DEPLOYED: Fri May 18 16:52:38 2018
NAMESPACE: default
STATUS: DEPLOYED
RESOURCES:
==> v1beta1/ClusterRoleBinding
NAME                    AGE
alibaba-log-controller  0s
==> v1beta1/DaemonSet
NAME        DESIRED  CURRENT  READY  UP-TO-DATE  AVAILABLE  NODE SELECTOR  AGE
logtail-ds  2        2        0      2           0          <none>         0s
==> v1beta1/Deployment
NAME                    DESIRED  CURRENT  UP-TO-DATE  AVAILABLE  AGE
alibaba-log-controller  1        1        1           0          0s
==> v1/Pod(related)
NAME                                     READY  STATUS             RESTARTS  AGE
logtail-ds-7xf2d                         0/1    ContainerCreating  0         0s
logtail-ds-9j4bx                         0/1    ContainerCreating  0         0s
alibaba-log-controller-796f8496b6-6jxb2  0/1    ContainerCreating  0         0s
==> v1/ServiceAccount
NAME                    SECRETS  AGE
alibaba-log-controller  1        0s
==> v1beta1/CustomResourceDefinition
NAME                                   AGE
aliyunlogconfigs.log.alibabacloud.com  0s
==> v1beta1/ClusterRole
alibaba-log-controller  0s
[INFO] your k8s is using project : k8s-log-custom-xxx, region : cn-hangzhou, aliuid : 1654218965343050, accessKeyId : LTAxxxxxxxxxxx
[SUCCESS] install helm package : alibaba-log-controller success.

You can use the helm  status alibaba-log-controller to view the current pod status. If all the statuses are successful, the installation is complete.

Log on to the Log Service console after installation. You can view the automatically created Log Service project. If you have many projects, search by the keyword k8s-log.

Step 2  Configure

Log collection supports the console configuration mode by default. Meanwhile, CRD configuration mode for the Kubernetes microservice development is also provided. You can use kubectl to manage the configuration.  The comparison of the two configurations is as follows:

- CRD Mode  Console mode
Operational complexity Low Medium
Function Supports advanced configuration with the exception of Console mode Medium
Complexity Medium Low
Network connection  Connect to the Kubernetes cluster  Connect to the Internet
Integration with deployment components  Supported Not supported
Authentication method  Kubernetes authorization  Cloud account authentication

We recommend you use the CRD method for collection configuration management, as this method is better integrated with the Kubernetes deployment and publishing process.

Manage collection configurations on the console

Create Logtail collection configurations on the console as required. For configuration steps, see:

Acquisition configuration through CRD Management

For the Kubernetes microservice development model, the logging service also provides a way to configure the CRD, you can directly use kubectl to manage the configuration, the integration of this approach with the Kubernetes deployment and release process is more complete.

For more information, see Configure Kubernetes log collection on CRD.

Other operations

DaemonSet deployment migration procedure

If you previously deployed the Log Service logtail by using the WebSphere set method that you used earlier, you will not be able to use CRD for configuration management. You can migrate to a new version in the following ways:
Note During the upgrade, some logs are duplicated. The CRD management configuration can be used only for the configuration created using the CRD. The historical configuration does not support the CRD management mode because the historical configuration is created using a non-CRD mode.
  1. Install in the form of a new version, the installation command last adds a parameter for the Log Service Project name that was used by your previous kubernetes cluster.
    For example, the project name was k8s-log-demo, the cluster ID was c12ba2028cxxxxxxxxxx6939f0b, then the installation command is
    wget http://logtail-release-cn-hangzhou.oss-cn-hangzhou.aliyuncs.com/kubernetes/alicloud-log-k8s-install.sh -O alicloud-log-k8s-install.sh; chmod 744 ./alicloud-log-k8s-install.sh; sh ./alicloud-log-k8s-install.sh c12ba2028cxxxxxxxxxx6939f0b k8s-log-demo
  2. After successful installation, in the Log Service console apply the historical collection configuration to the new machine group k8s-group-${your_k8s_cluster_id}.
  3. In a minute, the historical collection configuration is bind to the historical machine group.
  4. After the log collection is normalized, you can delete the previously installed Logtail DaemonSet.

Use multiple clusters in the same Log Service project

You can use multiple clusters to collect logs to the same Log Service project. When installing other clusters Log Service components, you must replace ${your_k8s_cluster_id} in the installation parameters with the clusters ID you installed for the first time.

For example, you now have three clusters with IDs:  abc001, abc002, and abc003. The installation parameters for the three clusters, ${your_k8s_cluster_id}, must all be filled as abc001.

Note This method does not support Kubernetes multi-cluster sharing across regions.

Logtail container logs

Logtail logs are stored in the /usr/local/ilogtail/ directory in the Logtail container, the file name is ilogtail.LOG and ilogtail.plugin, the container stdout does not have the reference significance, so you can ignore the following stdout output:
start umount useless mount points, /shm$|/merged$|/mqueue$
umount: /logtail_host/var/lib/docker/overlay2/3fd0043af174cb0273c3c7869500fbe2bdb95d13b1e110172ef57fe840c82155/merged: must be superuser to unmount
umount: /logtail_host/var/lib/docker/overlay2/d5b10aa19399992755de1f85d25009528daa749c1bf8c16edff44beab6e69718/merged: must be superuser to unmount
umount: /logtail_host/var/lib/docker/overlay2/5c3125daddacedec29df72ad0c52fac800cd56c6e880dc4e8a640b1e16c22dbe/merged: must be superuser to unmount
......
xargs: umount: exited with status 255; aborting
umount done
start logtail
ilogtail is running
logtail status:
ilogtail is running

View the status of log related components in the Kubernetes cluster

helm status alibaba-log-controller

alibaba-log-controller failed to start

Make sure that you perform the installation as follows:

  1. The installation command is executed on the master node of the kubernetes Cluster
  2. The installation command parameter is entered in the cluster ID.

If the installation fails due to these problems, use helm del --purge  alibaba-log-controllerr to remove the installation package and perform the installation again.

If the installation failure persists, open a ticket to contact technical support engineers of Log Service.

Check the status of the Logtail DaemonSet in the Kubernetes cluster

You can run the command kubectl get ds -n kube-system to check the running status of Logtail.

Note The default namespace of Logtail is kube-system.

Check the version number, IP address, and startup time of Logtail

An example is as follows:
[root@iZbp1dsu6v77zfb40qfbiaZ ~]# kubectl get po -n kube-system | grep logtail
NAME            READY     STATUS    RESTARTS   AGE
logtail-ds-gb92k   1/1       Running   0          2h
logtail-ds-wm7lw   1/1       Running   0          4d
[root@iZbp1dsu6v77zfb40qfbiaZ ~]# kubectl exec logtail-ds-gb92k -n kube-system cat /usr/local/ilogtail/app_info.json
{
   "UUID" : "",
   "hostname" : "logtail-ds-gb92k",
   "instance_id" : "0EBB2B0E-0A3B-11E8-B0CE-0A58AC140402_172.20.4.2_1517810940",
   "ip" : "172.20.4.2",
   "logtail_version" : "0.16.2",
   "os" : "Linux; 3.10.0-693.2.2.el7.x86_64; #1 SMP Tue Sep 12 22:26:13 UTC 2017; x86_64",
   "update_time" : "2018-02-05 06:09:01"
}

View the operational log for Logtail

Logtail running logs are stored in the /usr/local/ilogtail/ directory. The file name is ilogtail.LOG. The rotation file is compressed and stored as ilogtail.LOG.x.gz.

An example is as follows:
[root@iZbp1dsu6v77zfb40qfbiaZ ~]# kubectl exec logtail-ds-gb92k -n kube-system tail /usr/local/ilogtail/ilogtail.LOG
[2018-02-05 06:09:02.168693] [INFO] [9] [build/release64/sls/ilogtail/LogtailPlugin.cpp:104] logtail plugin Resume:start
[2018-02-05 06:09:02.168807] [INFO] [9] [build/release64/sls/ilogtail/LogtailPlugin.cpp:106] logtail plugin Resume:success
[2018-02-05 06:09:02.168822] [INFO] [9] [build/release64/sls/ilogtail/EventDispatcher.cpp:369] start add existed check point events, size:0
[2018-02-05 06:09:02.168827] [INFO] [9] [build/release64/sls/ilogtail/EventDispatcher.cpp:511] add existed check point events, size:0 cache size:0 event size:0 success count:0

Restart Logtail of a Pod

An example is as follows:
[root@iZbp1dsu6v77zfb40qfbiaZ ~]# kubectl exec logtail-gb92k -n kube-system /etc/init.d/ilogtaild stop
kill process Name: ilogtail pid: 7
kill process Name: ilogtail pid: 9
stop success
[root@iZbp1dsu6v77zfb40qfbiaZ ~]# kubectl exec logtail-gb92k -n kube-system /etc/init.d/ilogtaild start
ilogtail is running
