Image Search:Introduction to the Image Search console

Last Updated:Mar 08, 2024

You can create instances, add images, and search for images in the Image Search console. This topic describes the features and the layout of the Image Search console.

Overview

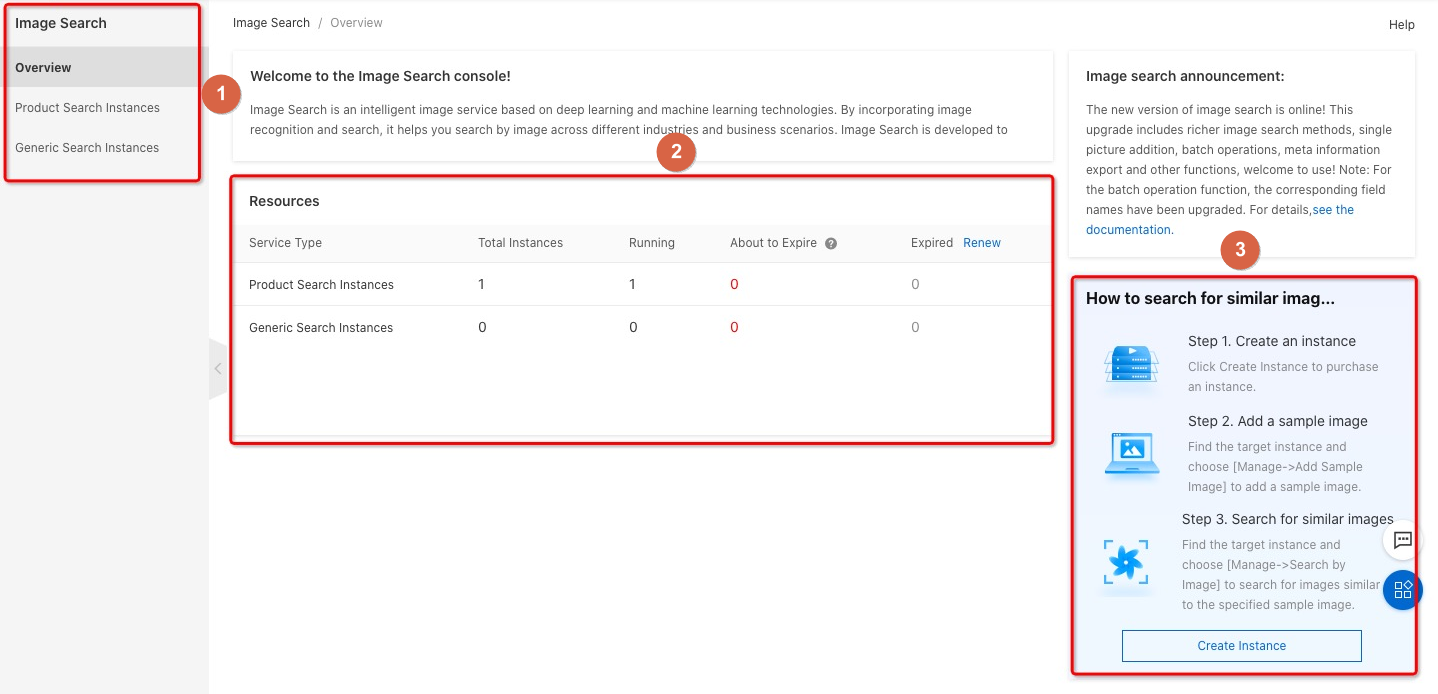

Overview

No.

Functionality

Left-side navigation pane: shows the resource overview and instance types.

Instance resource overview: shows the number and running status of instances of each type.

Service usage guide: describes how to use the Image Search service.

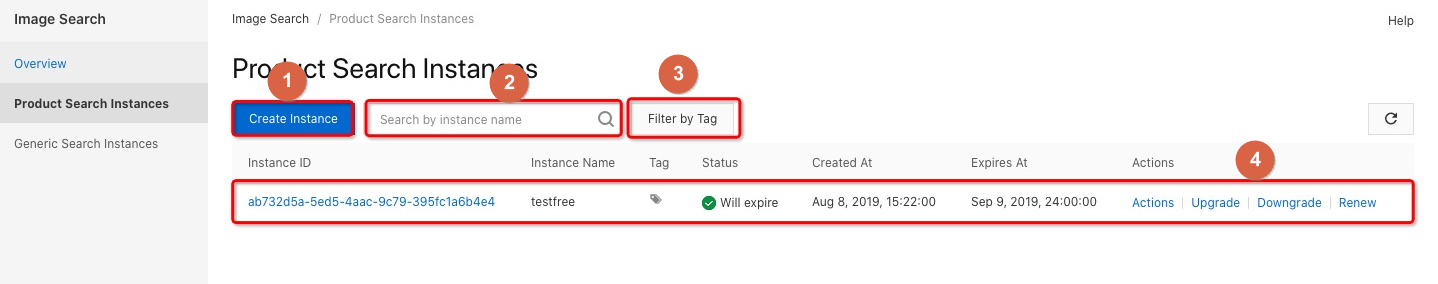

Instances


No.

Functionality

Create Instance: You can click this button to go to the buy page.

Search by instance name: You can enter an instance name in the search box, and click the Search icon to perform a fuzzy search.

Filter by Tag: You can click Filter by Tag and then select tags to filter instances.

The instance list displays the following basic information about instances:

  • Instance ID: the unique ID of an instance. You can click an instance ID to go to the Instance Details page.

  • Instance Name: the unique name of the instance. The instance name must be unique under the same account.

  • Tag: the custom tags of the instance. You can use these tags to classify and filter instances.

  • Status: the status of the instance. The instance status are Creating, Running, The creation failed, Overdue, Releasing, and Release Failed.

    Note

    The operations that you can perform depend on the status of the instance.

  • Created At: the time when the instance is created.

  • Expires At: the time when the instance expires.

  • Actions: You can click Actions in the Actions column to go to the Instance Details page. You can also upgrade and downgrade instance specifications and renew instances.

Instance Details page

Introduction to the Image Search console - Instance Details page

No.

Functionality

Basic Information: the basic information about the instance. The Basic Information section displays the values of the following parameters: Instance Name, Instance ID, Instance Status, Region, Created At, and Expires At.

Package and Usage: displays Package Type, Capacity, Max Queries/Sec, and Images.

Action buttons: Clear Images, Upgrade, Downgrade, and Renew.

Search by Image

Introduction to the Image Search console - Search by Image

No.

Functionality

Parameter configuration for image search: Before you search for images, you can specify the parameters for image search. For example, you can specify the parameters, such as Image Subject Recognition, Recognition Method, Number of images in results, No. of the first image in result for pagination, and Filter Condition.

Response: the query results that are returned.

Add Sample Image

Introduction to the Image Search console - Add Sample Image

No.

Functionality

Parameter configuration for adding images: Before you add an image, you must specify the parameters, such as Commodity ID, Image Name, Image Subject Recognition, Image Category, Custom Content, Integer Attribute, and String Attribute.

Response: the results that are returned.

Batch Operation

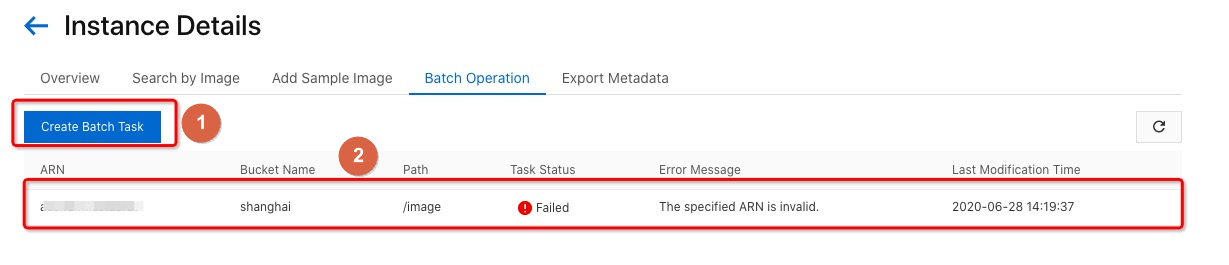

Introduction to the Image Search console - Batch Operation

No.

Functionality

Create Batch Task: You can click this button to go to the Create Batch Task page.

Historical batch tasks: You can view the historical batch tasks.

Export Metadata

Introduction to the Image Search console - Export Metadata

No.

Functionality

Create Export Task: You can click this button to create a metadata export task.

Task list: displays the metadata export tasks that have been created. You can download the results.
