This topic describes how to integrate HDFS with Ranger and how to configure related permissions.

Prerequisites

An E-MapReduce (EMR) Hadoop cluster is created, and Ranger is selected from the optional services during the cluster creation. For more information about how to create a cluster, see Create a cluster.

Integrate HDFS with Ranger

  1. Enable HDFS in Ranger.
    1. Log on to the EMR console.
    2. In the top navigation bar, select the region where your cluster resides and select a resource group based on your business requirements.
    3. Click the Cluster Management tab.
    4. On the Cluster Management page, find your cluster and click Details in the Actions column.
    5. In the left-side navigation pane, choose Cluster Service > RANGER.
    6. On the page that appears, choose Actions > EnabledHDFS in the upper-right corner.
      Enable HDFS PLUGIN
    7. In the Cluster Activities dialog box, configure relevant parameters and click OK. In the Confirm message, click OK.
      Click History in the upper-right corner to view the task progress.
  2. Add the HDFS service on the web UI of Ranger.
    1. Log on to Ranger. For more information, see Overview.
    2. Add the HDFS service.
      Ranger UI
    3. Configure relevant parameters.
      hdfs
      Parameter Description
      Service Name Set the value to emr-hdfs.
      Username Set the value to hadoop.
      Password Enter a custom password.
      Namenode URL
      • Enter hdfs://emr-header-1:9000 for a non-HA cluster.
      • Enter hdfs://emr-header-1:8020 for an HA cluster.
      Authorization Enabled Select No for a standard cluster and Yes for a high-security cluster.
      Authentication Type
      • Select Simple for a standard cluster.
      • Select Kerberos for a high-security cluster.
      dfs.datanode.kerberos.principal These parameters are required only for a high-security cluster. Set the value to hdfs/_HOST@EMR.${id}.com.
      Note You can log on to the host and run the hostname command to obtain the value of ${id}. The number in hostname is the value of ${id}.
      dfs.namenode.kerberos.principal
      dfs.secondary.namenode.kerberos.principal
      Add New Configurations
      • Name: Set the value to policy.download.auth.users.
      • Value: Set the value to hdfs.
    4. Click Add.
  3. Restart HDFS.
    1. In the left-side navigation pane, choose Cluster Service > HDFS.
    2. On the page that appears, choose Actions > Restart All Components in the upper-right corner.
    3. In the Cluster Activities dialog box, configure relevant parameters and click OK. In the Confirm message, click OK.
      Click History in the upper-right corner to view the task progress.

Example of permission configuration

For example, you can perform the following steps to grant user test the Write or Execute permission on resources in the /user/foo directory:

  1. Log on to Ranger. For more information, see Overview.

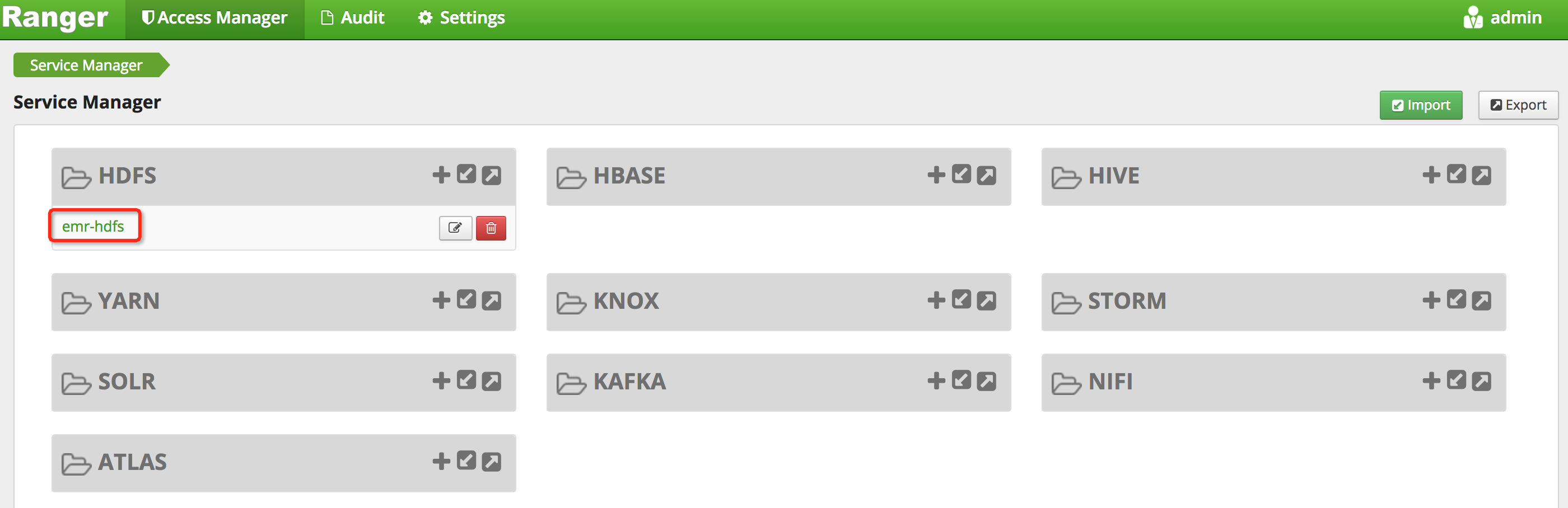

  2. Click emr-hdfs.
    Example of permission configuration

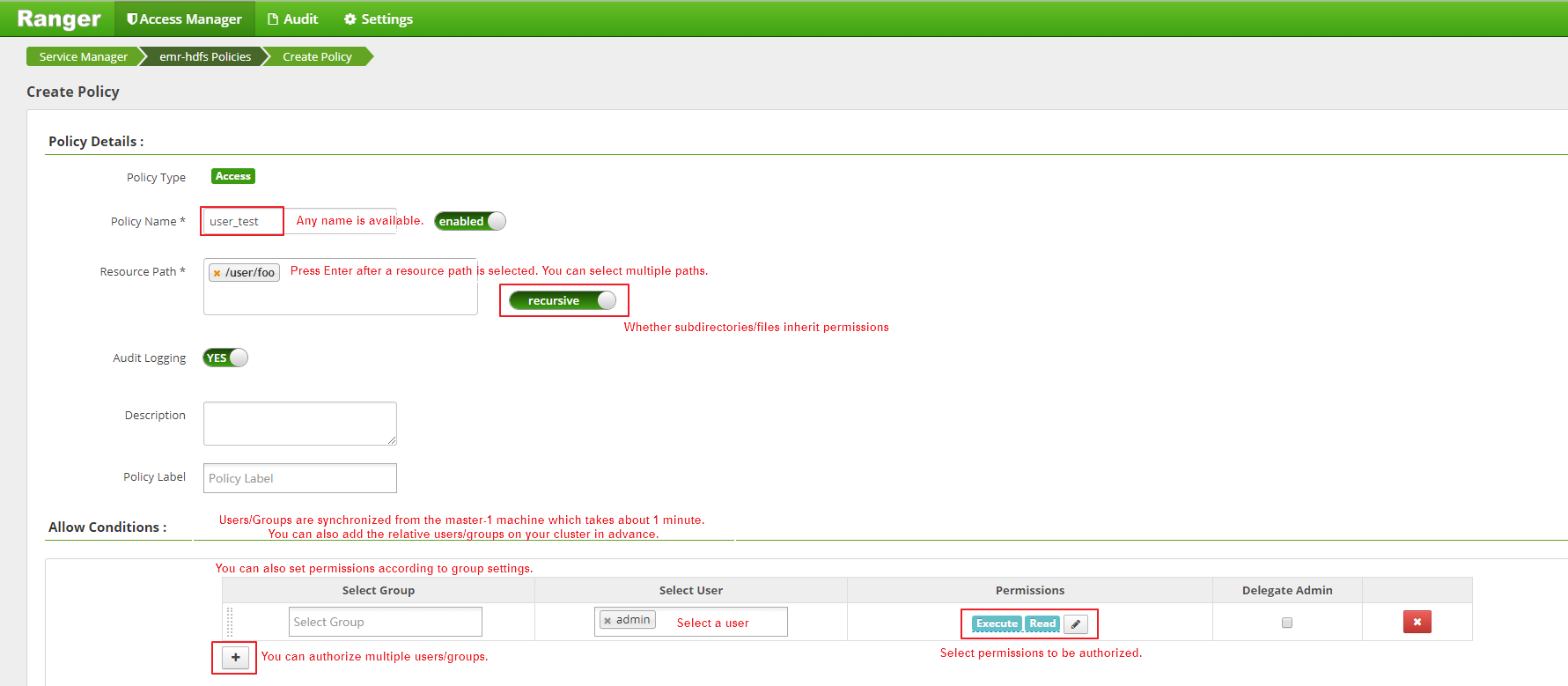

  3. Click Add New Policy in the upper-right corner.
  4. Configure relevant parameters.
    Parameter Description
    Policy Name The name of the policy. You can customize a name.
    Resoure Path The path of the resources.
    recursive Specifies whether the permissions take effect on subdirectories or files.
    Select Group The user group to which you want to add this policy.
    Select User The user to whom you want to add this policy.
    Permissions The permissions to be granted.
  5. Click Add.
    After the policy is added, authorization is completed. User test can access the /user/foo directory.
    Note After you add, remove, or modify a policy, it takes about one minute for the configuration to take effect.
