You can use Application Real-Time Monitoring Service (ARMS) to monitor applications that are deployed in Enterprise Distributed Application Service (EDAS). ARMS allows you to monitor applications based on various performance metrics, such as topology, API requests, abnormal transactions, slow transactions, and SQL analysis. To enable ARMS to monitor an EDAS application, you only need to perform a few operations in the EDAS console.

Prerequisites

If the JDK Version is 1.8.0_25 or 1.8.0_31, you may fail to install the arms Agent. In this case, upgrade the JDK to the latest version in 1.8.X.

Enable ARMS to monitor an application in the EDAS console

  1. Log on to the EDAS console.
  2. In the left-side navigation pane, choose Application Management > Applications.
  3. On the Applications page, select a region in the top navigation bar and click the name of the application to be monitored by ARMS.

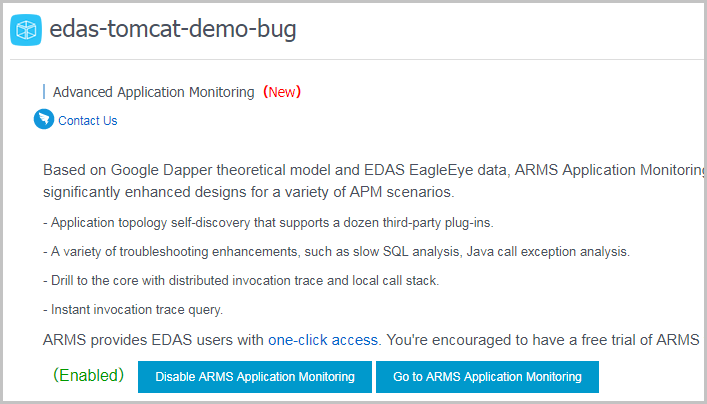

  4. In the left-side navigation pane, choose Application Monitoring > Advanced Monitoring or Monitoring > Advanced Monitoring. Then, click Enable Advanced Application Monitoring.
  5. In the Confirm dialog box, click Confirm.

View the monitoring data of the EDAS application in ARMS

After you enable ARMS to monitor the application, click Go to ARMS Application Monitoring. The Applications page of the ARMS console appears. On the Applications page, click the name of the application to view the detailed monitoring data.

After you enable ARMS to monitor the EDAS application, you can use multiple application monitoring capabilities, as shown in the following examples.

For more information about ARMS application monitoring, see Overview.
