Alibaba Cloud provides a default VPC and VSwitch for you if you do not have any existing VPC and VSwitch to use when creating a cloud product instance. A default VPC and VSwitch are created along with the creation of the instance. This document takes ECS as an example to introduce how to create a default VPC and VSwitch.

Background information

Configurations for the default VPC and VSwitch are as follows:
Note
A region can only have one default VPC but many default VSwitches. Because VPC is a region-based resource while VSwitch is a zone-based resource. Each zone can have a default VSwitch.
Default VPC Default VSwitch
The default VPC in each region is unique. The default VSwitch in each zone is unique.
The subnet mask for a default VPC is /16, such as 172.31.0.0/16, providing up to 65536 private IP addresses. The netmask for a default VSwitch is /20, such as 172.31.0.0/20, providing up to 4096 private IP addresses.
The default VPC does not occupy the VPC quota. The default VSwitch does not occupy the VSwitch quota.
The default VPC is created by the system, and all VPCs created by you are non-default VPCs. The default VSwitch is created by the system, and all VSwitches created by you are non-default VSwitches.
The operations and specifications for the default VPC and non-default VPCs are the same. The operations and specifications for the default VSwitch and non-default VSwitches are the same.

Procedure

  1. Log on to the ECS console.
  2. In the left-side navigation pane, click Instances and then click Create Instance.
  3. Select Advanced Purchase.
  4. On the Basic Configurations page, configure basic configurations for the instance and click Next: Networking.

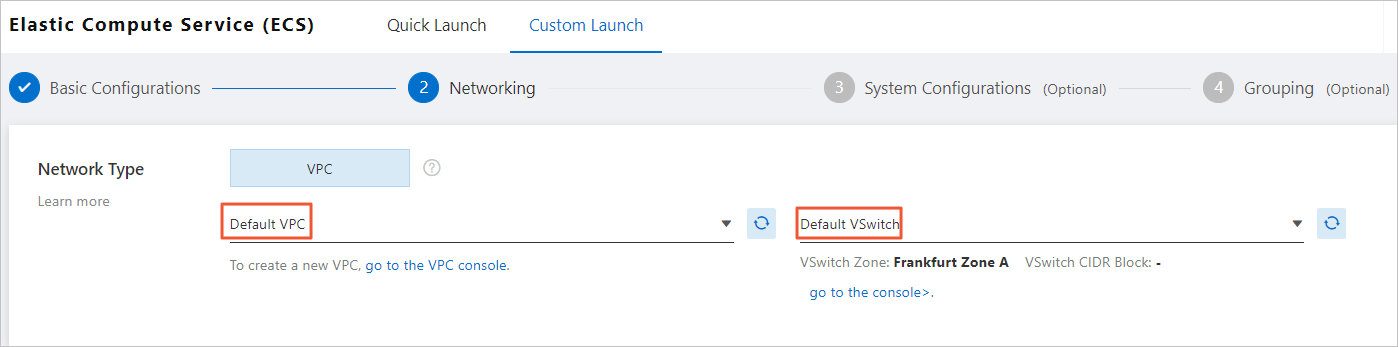

  5. On the Networking page, select the default VPC and the default VSwitch, and configure other configurations. Click Next: System Configurations.


  6. Configure the log on credential and instance name, and click Create Order.

    After the instance is created, a default VPC and a default VSwitch will be created in the region.

    Figure 1. Default VPC


    Figure 2. Default VSwitch
