Logtail allows you to configure plug-ins for data processing. Each plug-in defines a processing method. You can configure one or more processing methods for a data source. Then, Logtail executes the processing methods in sequence. This topic describes the available data processing methods and describes how to configure the methods.

Implementation

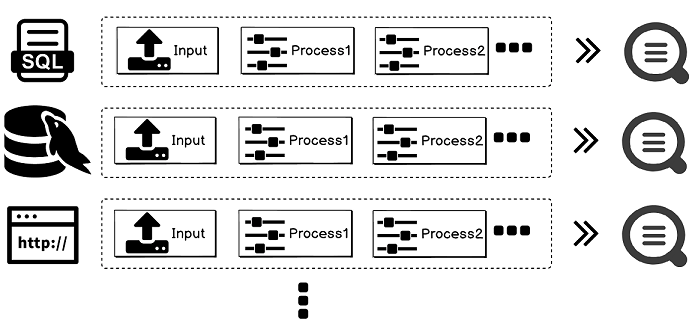

The following figure shows the implementation of Logtail data processing methods.Implementation

Instructions

When you configure data processing methods, you must set the key in the configuration file to processors and set the value to an array of JSON objects. Each object contains the details of a processing method.

Each object contains the type and detail fields. The type field specifies the type of the processing method and the detail field contains configuration details.
"processors" : [
        {
            "type" : "processor_anchor",
            "detail" : {
                ...
            }
        },
        {
            "type" : "processor_regex",
            "detail" : {
                ...
            }
        }
    ]

Processing methods

Regular expression-based extraction

This processing method extracts fields by using a regular expression to match the specified fields.

The type of the plug-in is processor_regex. The following table describes the parameters of the processing method.
Parameter Type Required Description
SourceKey String Yes The original field name.
Regex String Yes The regular expression. The field values to be extracted are enclosed in parentheses ().
Keys String array Yes The array of fields to be extracted, for example, ["key1", "key2" ...].
NoKeyError Boolean No Specifies whether to report an error if a field is not matched. Default value: false. This value indicates that no error is reported if a field is not matched.
NoMatchError Boolean No Indicates whether to report an error if the regular expression does not match the value of a field you specified. Default value: false. This value indicates that no error is reported if a field is not matched.
KeepSource Boolean No Specifies whether to retain the raw data. Default value: false. This value indicates that the raw data is not retained.
FullMatch Boolean No Default value: true. This value indicates that exact match is implemented when the regular expression specified by the Regex parameter attempts to match field values. If you set the value to false, partial match is implemented when the regular expression attempts to match field values.

The following example shows how to configure the processing method for access logs. The example also provides the processing results.

  • Raw data
    "content" : "10.200. **. ** - - [10/Aug/2017:14:57:51 +0800] \"POST /PutData?
    Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature> HTTP/1.1\" 0.024 18204 200 37 \"-\" \"aliyun-sdk-java"
  • Logtail configurations for data processing
    {
        "type" : "processor_regex",
        "detail" : {"SourceKey" : "content",
             "Regex" : "([\\d\\.] +) \\S+ \\S+ \\[(\\S+) \\S+\\] \"(\\w+) ([^\\\"]*)\" ([\\d\\.]+) (\\d+) (\\d+) (\\d+|-) \"([^\\\"]*)\" \"([^\\\"]*)\" (\\d+)",
             "Keys"   : ["ip", "time", "method", "url", "request_time", "request_length", "status", "length", "ref_url", "browser"],
             "NoKeyError" : true,
             "NoMatchError" : true,
             "KeepSource" : false
        }
    }
  • Results
    "ip" : "10.200. **.**"
    "time" : "10/Aug/2017:14:57:51"
    "method" : "POST"
    "url" : "/PutData? Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature>"
    "request_time" : "0.024"
    "request_length" : "18204"
    "status" : "200"
    "length" : "27"
    "ref_url" : "-"
    "browser" : "aliyun-sdk-java"

Anchor-based extraction

This processing method uses the start and stop keywords to anchor strings and extract fields. If an anchored substring is a JSON string, you can expand the substring and then extract fields.

The type of the plug-in is processor_anchor. The following table describes the parameters of the processing method.
Parameter Type Required Description
SourceKey String Yes The original field name.
Anchors Array Yes The calibration items.
NoAnchorError Boolean No Specifies whether to report an error if a keyword is not found. Default value: false. This value indicates that no error is reported if a keyword is not found.
NoKeyError Boolean No Specifies whether to report an error if a field is not matched. Default value: false. This value indicates that no error is reported if a field is not matched.
KeepSource Boolean No Specifies whether to retain the raw data. Default value: false. This value indicates that the raw data is not retained.
The following table describes the parameters in Anchors.
Parameter Type Required Description
Start String Yes The keyword that anchors the start of a substring in a string. If you set the value to null, the start of the string is matched.
Stop String Yes The keyword that anchors the end of a substring in a string. If you set the value to null, the end of the string is matched.
FieldName String Yes The name of the field to be extracted.
FieldType String Yes The data type of the field. Valid values: string and json.
ExpondJson Boolean No Specifies whether to expand an anchored JSON substring. Default value: false. This value indicates that an anchored JSON substring is not expanded. This parameter is available only if the value of the FieldType parameter is set to json.
ExpondConnecter String No The character that is used to connect expanded keys. Default value: _.
MaxExpondDepth Int No The maximum depth of JSON expansion. Default value: 0. This value indicates that the depth of JSON expansion is unlimited.

The following example shows how to configure the processing method for logs of mixed field types. The example also provides the processing results.

  • Raw data
    "content" : "time:2017.09.12 20:55:36\tjson:{\"key1\" : \"xx\", \"key2\": false, \"key3\":123.456, \"key4\" : { \"inner1\" : 1, \"inner2\" : false}}"
  • Logtail configurations for data processing
    {
       "type" : "processor_anchor",
       "detail" : {"SourceKey" : "content",
          "Anchors" : [
              {
                  "Start" : "time",
                  "Stop" : "\t",
                  "FieldName" : "time",
                  "FieldType" : "string",
                  "ExpondJson" : false
              },
              {
                  "Start" : "json:",
                  "Stop" : "",
                  "FieldName" : "val",
                  "FieldType" : "json",
                  "ExpondJson" : true
              }
          ]
      }
    }
  • Results
    "time" : "2017.09.12 20:55:36"
    "val_key1" : "xx"
    "val_key2" : "false"
    "val_key3" : "123.456"
    "value_key4_inner1" : "1"
    "value_key4_inner2" : "false"

Single-character delimiter-based extraction

This processing method uses a specified single-character delimiter to delimit fields. You can specify a quote to enclose the delimiter.

The type of the plug-in is processor_split_char. The following table describes the parameters of the processing method.
Parameter Type Required Description
SourceKey String Yes The original field name.
SplitSep String Yes The single-character delimiter. You can specify a non-printable character as a single-character delimiter, for example, \u0001.
SplitKeys String array Yes The names of the delimited fields, for example, ["key1", "key2"...].
QuoteFlag Boolean No Specifies whether to use a quote to enclose the specified delimiter. Default value: false. This value indicates that a quote is not used.
Quote String No The quote. The quote must be a single character. You can specify a non-printable character as a quote, for example, \u0001. This parameter is available only if the value of QuoteFlag is set to true.
NoKeyError Boolean No Specifies whether to report an error if a field is not matched. Default value: false. This value indicates that no error is reported if a field is not matched.
NoMatchError Boolean No Specifies whether to report an error if a delimiter is not matched. Default value: false. This value indicates that no error is reported if a delimiter is not matched.
KeepSource Boolean No Specifies whether to retain the raw data. Default value: false. This value indicates that the raw data is not retained.

The following example shows how to configure the processing method for delimited logs. The example also provides the processing results.

  • Raw data
    "content" : "10. **. **. **|10/Aug/2017:14:57:51 +0800|POST|PutData?
    Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature>|0.024|18204|200|37|-|
    aliyun-sdk-java"
  • Logtail configurations for data processing
    {
       "type" : "processor_split_char",
       "detail" : {"SourceKey" : "content",
          "SplitSep" : "|",
          "SplitKeys" : ["ip", "time", "method", "url", "request_time", "request_length", "status", "length", "ref_url", "browser"]
      }
    }
  • Results
    "ip" : "10. **. **.**"
    "time" : "10/Aug/2017:14:57:51 +0800"
    "method" : "POST"
    "url" : "/PutData? Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature>"
    "request_time" : "0.024"
    "request_length" : "18204"
    "status" : "200"
    "length" : "27"
    "ref_url" : "-"
    "browser" : "aliyun-sdk-java"

Multi-character delimiter-based extraction

This processing method uses a specified multi-character delimiter to delimit fields. You cannot specify a quote to enclose the delimiter.

The type of the plug-in is processor_split_string. The following table describes the parameters of the processing method.
Parameter Type Required Description
SourceKey String Yes The original field name.
SplitSep String Yes The multi-character delimiter. You can specify multiple non-printable characters as a multi-character delimiter, for example, \u0001\u0002.
SplitKeys String array Yes The names of the delimited fields, for example, ["key1", "key2"...].
PreserveOthers Boolean No Specifies whether to retain the excess fields if the number of fields is greater than the number of fields specified by the SplitKeys parameter. Default value: false. This value indicates that the excess fields are not retained.
ExpandOthers Boolean No Specifies whether to parse the excess fields. Default value: false. This value indicates that the excess fields are not parsed.
ExpandKeyPrefix String No The prefix of the names of excess fields. For example, if you specify expand_ for the parameter, the first two excess fields are named expand_1 and expand_2.
NoKeyError Boolean No Specifies whether to report an error if a field is not matched. Default value: false. This value indicates that no error is reported if a field is not matched.
NoMatchError Boolean No Specifies whether to report an error if a delimiter is not matched. Default value: false. This value indicates that no error is reported if a delimiter is not matched.
KeepSource Boolean No Specifies whether to retain the raw data. Default value: false. This value indicates that the raw data is not retained.

The following example shows how to configure the processing method for delimited logs. The example also provides the processing results.

  • Raw data
    "content" : "10. **. **. **|#|10/Aug/2017:14:57:51 +0800|#|POST|#|PutData?
    Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature>|#|0.024|#|18204|#|200|#|37|#|-|#|
    aliyun-sdk-java"
  • Logtail configurations for data processing
    {
       "type" : "processor_split_string",
       "detail" : {"SourceKey" : "content",
          "SplitSep" : "|#|",
          "SplitKeys" : ["ip", "time", "method", "url", "request_time", "request_length", "status"],
          "PreserveOthers" : true,
          "ExpandOthers" : true,
          "ExpandKeyPrefix" : "expand_"
      }
    }
  • Results
    "ip" : "10. **. **.**"
    "time" : "10/Aug/2017:14:57:51 +0800"
    "method" : "POST"
    "url" : "/PutData? Category=YunOsAccountOpLog&AccessKeyId=<yourAccessKeyId>&Date=Fri%2C%2028%20Jun%202013%2006%3A53%3A30%20GMT&Topic=raw&Signature=<yourSignature>"
    "request_time" : "0.024"
    "request_length" : "18204"
    "status" : "200"
    "expand_1" : "27"
    "expand_2" : "-"
    "expand_3" : "aliyun-sdk-java"

GeoIP conversion

This processing method transforms IP addresses in logs into geo locations. The geo locations include the country, province, city, longitude, and latitude.

Note GeoIP databases are not included in the Logtail installation package. You must download and configure a GeoIP database on local servers. We recommend that you download a database that provides the city information of an IP address.
The type of the plug-in is processor_geoip. The following table describes the parameters of the processing method.
Parameter Type Required Description
SourceKey String Yes The name of the field to be converted.
DBPath String Yes The absolute path of the GeoIP database. The database is in the MMDB format, for example, /user/data/GeoLite2-City_20180102/GeoLite2-City.mmdb.
NoKeyError Boolean No Specifies whether to report an error if a field is not matched. Default value: false. This value indicates that no error is reported if a field is not matched.
NoMatchError Boolean No Specifies whether to report an error if an IP address is invalid or is not matched in the database. Default value: false. This value indicates that no error is reported if an IP address is invalid or is not matched in the database.
KeepSource Boolean No Specifies whether to retain the raw data. Default value: true. This value indicates that the raw data is retained.
Language String No The language of the GeoIP database. Default value: zh-CN. Make sure that your GeoIP database can be displayed in languages that are suitable for your business.

The following example shows how to configure the processing method for IP addresses in logs. The example also provides the processing results.

  • Raw data
    "source_ip" : "**. **. **. **"
    Download a GeoIP database and install the database on the servers where Logtail resides. We recommend that you download a city database of MaxMind GeoLite2.
    Note Make sure that the database format is MMDB.
  • Logtail configurations for data processing
    {
       "type": "processor_geoip",
        "detail": {
             "SourceKey": "ip",
             "NoKeyError": true,
             "NoMatchError": true,
             "KeepSource": true,
             "DBPath" : "/user/local/data/GeoLite2-City_20180102/GeoLite2-City.mmdb"
        }
    }
  • Results
    "source_ip_city_" : "**. **. **.**"
    "source_ip_province_" : "Zhejiang"
    "source_ip_city_" : "Hangzhou"
    "source_ip_province_code_" : "ZJ"
    "source_ip_country_code_" : "CN"
    "source_ip_longitude_" : "120.********"
    "source_ip_latitude_" : "30. ********"

Regular expression-based filter

This processing method uses regular expressions to filter logs.

The type of the plug-in is processor_filter_regex. The following table describes the parameters of the processing method.
Parameter Type Required Description
Include The keys that are specified by this parameter are strings. The values of these keys are JSON objects. No A key is the name of a log field. A value is specified by a regular expression. If a key-value pair matches one of the fields of a log entry, the log entry is collected.
Exclude The keys that are specified by this parameter are strings. The values of these keys are JSON objects. No A key is the name of a log field. A value is specified by a regular expression. If a key-value pair matches one of the fields of a log entry, the log entry is dropped.
Note A log entry is collected only when it fully matches the regular expression specified by the Include parameter and does not match the regular expression specified by the Exclude parameter.

The following example shows how to configure the processing method for logs. The example also provides the processing results.

  • Raw data
    • Log entry 1
      "ip" : "10. **. **.**"
      "method" : "POST"
      ...
      "browser" : "aliyun-sdk-java"
    • Log entry 2
      "ip" : "10. **. **.**"
      "method" : "POST"
      ...
      "browser" : "chrome"
    • Log entry 3
      "ip" : "192.168. *.*"
      "method" : "POST"
      ...
      "browser" : "ali-sls-ilogtail"
  • Logtail configurations for data processing
    {
       "type" : "processor_filter_regex",
        "detail" : {
             "Include" : {
                "ip" : "10\\..*",
                "method" : "POST"
             },
             "Exclude" : {
                "browser" : "aliyun. *"
             }
        }
    }
  • Results
    Log entry Collected Cause
    Log entry 1 No The value of the browser field matches the regular expression specified by the Exclude parameter.
    Log entry 2 Yes N/A
    Log entry 3 No The value of the ip field does not match the regular expression specified by the Include parameter.

Field enrichment

This processing method adds fields to a log entry.

The type of the plug-in is processor_add_fields. The following table describes the parameters of the processing method.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
Fields Map No The JSON object that includes key-value pairs. You can specify multiple key-value pairs in the parameter.
IgnoreIfExist Boolean No Specifies whether to retain key-value pairs that have the same key. Default value: false. This value indicates that a key-value pair is not retained if the key is the same as another specified key.
The following example shows how to add the aaa2 and aaa3 fields to a log entry. The example also provides the processing results.
  • Raw data
    "aaa1":"value1"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_add_fields",
          "detail": {
            "Fields": {
              "aaa2": "value2",
              "aaa3": "value3"
            }
          }
        }
      ]
    }
  • Results
    "aaa1":"value1"
    "aaa2":"value2"
    "aaa3":"value3"

Field dropping

This processing method drops specified fields from a log entry.

The type of the plug-in is processor_drop. The following table describes the parameters of the processing method.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
DropKeys Array No The array that includes a set of strings. You can drop one or more fields of a log entry.
The following example shows how to drop the aaa1 and aaa2 fields from a log entry. The example also provides the processing results.
  • Raw data
    "aaa1":"value1"
    "aaa2":"value2"
    "aaa3":"value3"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_drop",
          "detail": {
            "DropKeys": ["aaa1","aaa2"]
          }
        }
      ]
    }
  • Results
    "aaa3":"value3"

Log time extraction (Go)

This processing method extracts time information from the specified log field, converts the time format, and includes the time information in another field. For more information about how to extract and convert time information, visit Golang Time Format.

The type of the plug-in is processor_gotime. The following table describes the parameters of the processing method.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
SourceKey String Yes The name of the source field from which time information is extracted. If the parameter value is null, the parameter does not take effect.
SourceFormat String Yes The format of the time information in the source field.
SourceLocation Int Yes The source time zone. If the parameter value is null, the current time zone of the server where Logtail is installed takes effects.
DestKey String Yes The name of the destination field. If the parameter value is null, the parameter does not take effect.
DestFormat String Yes The format of the time information in the destination field. The time is in the Go time format.
DestLocation Int No The destination time zone. If the parameter value is null, the current time zone of the server where Logtail is installed takes effects.
SetTime Boolean No Specifies whether to set the time field. Default value: true. This value indicates that the time field is set.
KeepSource Boolean No Specifies whether to retain the source field. Default value: true. This value indicates that the source field is retained.
NoKeyError Boolean No Specifies whether to report an error if the source field is not found. Default value: true. This value indicates that an error is reported if the source field is not found.
AlarmIfFail Boolean No Specifies whether to trigger an alert if the time information fails to be extracted. Default value: true. This value indicates that an alert is triggered if the time information fails to be extracted.
The following example shows how to configure the processing method for time information. The example also provides the processing results. The time information 2006-01-02 15:04:05 (UTC+8) is extracted from the s_key field, converted into 2006/01/02 15:04:05 (UTC+9), and included in the d_key field.
  • Raw data
    "s_key":"2019-07-05 19:28:01"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_gotime",
          "detail": {
            "SourceKey": "s_key",
            "SourceFormat":"2006-01-02 15:04:05",
            "SourceLocation":8,
            "DestKey":"d_key",
            "DestFormat":"2006/01/02 15:04:05",
            "DestLocation":9,
            "SetTime": true,
            "KeepSource": true,
            "NoKeyError": true,
            "AlarmIfFail": true
          }
        }
      ]
    }
  • Results
    "s_key":"2019-07-05 19:28:01"
    "d_key":"2019/07/05 20:28:01"

JSON expansion

This processing method expands specified fields in JSON objects.

The type of the plug-in is processor_json.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
SourceKey String Yes The source field to be expanded from a JSON object.
NoKeyError Boolean No Specifies whether to report an error the source field is not found. Default value: true. This value indicates that an error is reported if the source field is not found.
ExpandDepth Int No The depth of JSON expansion. Default value: 0. This value indicates the depth of JSON expansion is unlimited. If the value is n, the number of depths to expand is n.
ExpandConnector String No The character that is used to connect expanded keys. Default value: _. The null value is supported.
Prefix String No The prefix that is appended to the expanded keys. Default value: null.
KeepSource Boolean No Specifies whether to retain the source field. Default value: true. This value indicates that the source field is retained.
UseSourceKeyAsPrefix Boolean No Specifies whether to append the source field name as a prefix to all expanded keys. Default value: false. This value indicates that the source field name is not appended.
The following example shows how to JSON expand the s_key field. The example also provides the processing results.
  • Raw data
    "s_key":"{\"k1\":{\"k2\":{\"k3\":{\"k4\":{\"k51\":\"51\",\"k52\":\"52\"},\"k41\":\"41\"}}})"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_json",
          "detail": {
            "SourceKey": "s_key",
            "NoKeyError":true,
            "ExpandDepth":0,
            "ExpandConnector":"-",
            "Prefix":"j",
            "KeepSource": false,
            "UseSourceKeyAsPrefix": true
          }
        }
      ]
    }
  • Results
    "s_key":"{\"k1\":{\"k2\":{\"k3\":{\"k4\":{\"k51\":\"51\",\"k52\":\"52\"},\"k41\":\"41\"}}})"
    "js_key-k1-k2-k3-k4-k51":"51"
    "js_key-k1-k2-k3-k4-k52":"52"
    "js_key-k1-k2-k3-k41":"41"

Field encapsulation

This processing method encapsulates one or more fields into JSON-formatted fields.

The type of the plug-in is processor_packjson.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
SourceKeys Array Yes The string array-formatted field to be encapsulated.
DestKey String No The destination JSON-formatted field.
KeepSource Boolean No Specifies whether to retain the source field. Default value: true. This value indicates that the source field is retained.
AlarmIfIncomplete Boolean No Specifies whether to trigger an alert if the source field is not found. Default value: true. This value indicates that an error is reported if the source field is not found.
The following example shows how to encapsulate the a and b fields into the d_key field. The example also provides the processing results.
  • Raw data
    "a":"1"
    "b":"2"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_packjson",
          "detail": {
            "SourceKeys": ["a","b"],
            "DestKey":"d_key",
            "KeepSource":true,
            "AlarmIfEmpty":true
          }
        }
      ]
    }
  • Results
    "a":"1"
    "b":"2"
    "d_key":"{\"a\":\"1\",\"b\":\"2\"}"

Field renaming

This processing method renames one or more specified fields.

The type of the plug-in is processor_rename.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
NoKeyError Boolean Yes Specifies whether to report an error if a field to be renamed is not found. Default value: false. This value indicates that no error is reported if a field to be renamed is not found.
SourceKeys Array Yes The array of source fields to be renamed.
DestKeys Array Yes The array of renamed fields.
The following example shows how to rename the aaa1 field into bbb1 and the aaa2 field into bbb2. The example also provides the processing results.
  • Raw data
    "aaa1":"value1"
    "aaa2":"value2"
    "aaa3":"value3"
  • Logtail configurations for data processing
    {
      "processors":[
        {
          "type":"processor_rename",
          "detail": {
            "SourceKeys": ["aaa1","aaa2"],
            "DestKeys": ["bbb1","bbb2"],
            "NoKeyError": true
          }
        }
      ]
    }
  • Results
    "bbb1":"value1"
    "bbb2":"value2"
    "aaa3":"value3"

Log time extraction (Strptime)

This processing method extracts time from a log field and parses the time by using the Linux strptime() function.

The type of the plug-in is processor_strptime.
Note Only Logtail 0.16.28 or later supports the plug-in.
Parameter Type Required Description
SourceKey String Yes The name of the field from which time is extracted.
Format String Yes The time format that is used to parse the extracted time.
AdjustUTCOffset Boolean No Specifies whether to change the time zone. Default value: false. This value indicates that the time zone is not changed.
UTCOffset Int No The offset that is used to adjust the time zone. Unit: seconds. For example, a value of 28800 indicates that the time zone is changed to UTC+8.
AlarmIfFail Boolean No Specifies whether to trigger an alert if the time information fails to be extracted. Default value: true. This value indicates that an alert is triggered if the time information fails to be extracted.
KeepSource Boolean No Specifies whether to retain the source field. Default value: true. This value indicates that the source field is retained.
The following example shows how to parse the value of the log_time filed into the %Y/%m/%d %H:%M:%S format. The example also provides the processing results.
  • Example 1: The time zone is UTC+8.
    • Raw data
      "log_time":"2016/01/02 12:59:59"
    • Logtail configurations for data processing
      {
        "processors":[
          {
            "type":"processor_strptime",
            "detail": {
              "SourceKey": "log_time",
              "Format": "%Y/%m/%d %H:%M:%S"
            }
          }
        ]
      }
    • Results
      "log_time":"2016/01/02 12:59:59"
      Log.Time = 1451710799
  • Example 2: The time zone is UTC+7.
    • Raw data
      "log_time":"2016/01/02 12:59:59"
    • Logtail configurations for data processing
      {
        "processors":[
          {
            "type":"processor_strptime",
            "detail": {
              "SourceKey": "log_time",
              "Format": "%Y/%m/%d %H:%M:%S",
              "AdjustUTCOffset": true,
              "UTCOffset": 25200
            }
          }
        ]
      }
    • Results
      "log_time":"2016/01/02 12:59:59"
      Log.Time = 1451714399

Custom methods

You can use multiple processing methods to process logs. The following example shows how to use a single-character delimiter to delimit a log entry into several fields and then specify anchor points to extract fields from the detail field.

  • Raw data
    "content" :
    "ACCESS|QAS|11. **. **.**|1508729889935|52460dbed4d540b88a973cf5452b1447|1238|appKey=ba,env=pub,requestTime=1508729889913,latency=22ms,
    request={appKey:ba,optional:{\\domains\\:\\daily\\,\\version\\:\\v2\\},rawQuery:{\\query\\:\\The route to Location A\\,\\domain\\:\\Navaigation\\,\\intent\\:\\navigate\\,\\slots\\:\\to_geo:level3=Location A\\,\\location\\:\\Location B\\},
    requestId:52460dbed4d540b88a973cf5452b1447},
    response={answers:[],status:SUCCESS}|"
  • Logtail configurations for data processing
    "processors" : [
          {
              "type" : "processor_split_char",
              "detail" : {"SourceKey" : "content",
                  "SplitSep" : "|",
                  "SplitKeys" : ["method", "type", "ip", "time", "req_id", "size", "detail"]
              }
          },
          {
              "type" : "processor_anchor",
              "detail" : "SourceKey" : "detail",
                  "Anchors" : [
                      {
                              "Start" : "appKey=",
                          "Stop" : ",env=",
                          "FieldName" : "appKey",
                          "FieldType" : "string"
                      },
                      {
                          "Start" : ",env",
                          "Stop" : ",requestTime=",
                          "FieldName" : "env",
                          "FieldType" : "string"
                      },
                      {
                          "Start" : ",requestTime=",
                          "Stop" : ",latency",
                          "FieldName" : "requestTime",
                          "FieldType" : "string"
                      },
                      {
                          "Start" : ",latency=",
                          "Stop" : ",request=",
                          "FieldName" : "latency",
                          "FieldType" : "string"
                      },
                      {
                          "Start" : ",request=",
                          "Stop" : ",response=",
                          "FieldName" : "request",
                          "FieldType" : "string"
                      },
                      {
                          "Start" : ",response=",
                          "Stop" : "",
                          "FieldName" : "response",
                          "FieldType" : "json"
                      }
                  ]
              }
          }
      ]
  • Results
    "method" : "ACCESS"
    "type" : "QAS"
    "ip" : "**. **. **.**"
    "time" : "1508729889935"
    "req_id" : "52460dbed4d540b88a973cf5452b1447"
    "size" : "1238"
    "appKey" : "ba"
    "env" : "pub"
    "requestTime" : "1508729889913"
    "latency" : "22ms"
    "request" : "{appKey:nui-banma,optional:{\\domains\\:\\daily-faq\\,\\version\\:\\v2\\},rawQuery:{\\query\\:\\\345\216\273\344\271\220\345\261\261\347\232\204\350\267\257\347\272\277\\,\\domain\\:\\\345\257\274\350\210\252\\,\\intent\\:\\navigate\\,\\slots\\:\\to_geo:level3=\344\271\220\345\261\261\\,\\location\\:\\\345\214\227\344\272\254\\},requestId:52460dbed4d540b88a973cf5452b1447}"
    "response_answers" : "[]"
    "response_status" : "SUCCESS"
