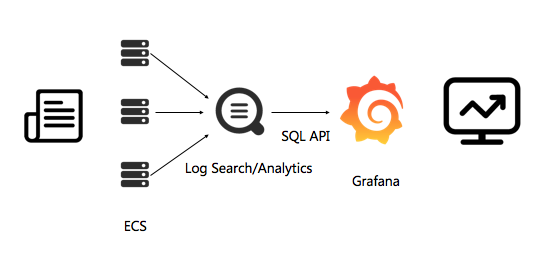

This topic describes how to use Grafana to analyze and visualize NGINX logs that are collected by Log Service.

Prerequisites

Step 1: Install Grafana and plug-ins

  1. Install Grafana. For more information, see Grafana documentation.
    Note
    • Before you install Grafana on an on-premises machine, you must enable port 3000 in the browser.
    • Before you use a pie chart, you can run the following command to install the pie chart plug-in:
      grafana-cli plugins install grafana-piechart-panel
  2. Install the Log Service plug-in.
    1. Run the following command to go to the plug-in installation directory of Grafana.
      For example, install the plug-in in the /var/lib/grafana/plugins/ directory on your Ubuntu system.
      cd /var/lib/grafana/plugins/
    2. Run the following command to install the plug-in:
      git clone --depth 1 https://github.com/aliyun/aliyun-log-grafana-datasource-plugin

      You can also download master.zip to the /var/lib/grafana/plugins/ directory and install the plug-in.

    3. Run the following command to restart the Grafana service:
      service grafana-server restart
  3. To install Grafana version 7.0 or later, modify the Grafana configuration file.
    1. Open the configuration file.
      • The file path in macOS is /usr/local/etc/grafana/grafana.ini.
      • The file path in Linux is /etc/grafana/grafana.ini.
    2. Set the allow_loading_unsigned_plugins parameter in plugins.
      allow_loading_unsigned_plugins = aliyun-log-service-datasource,grafana-log-service-datasource

Step 2: Configure a data source

  1. Log on to Grafana.
  2. In the left-side navigation pane, choose G1 > Data Sources.
  3. On the Data Sources tab, click Add data source.
  4. On the Add data source page, click the Select button on the LogService card.
  5. Configure the data source.
    The following table describes the required parameters.
    Parameter Description
    Name The name of the data source.
    HTTP Set the URL, Access, and Whitelisted Cookies parameters. The following list describes the parameters:
    • URL: The format is http://Endpoint. Replace the Endpoint variable with the actual value. For more information, see Endpoints. Example: http://cn-qingdao.log.aliyuncs.com.
    • Access: Select Server or Browser. Default value: Server.
    • Whitelisted Cookies: Add a whitelist.
    Auth Use the default settings.
    log service details Specify a project name, Logstore name, and AccessKey pair that has the read permissions. To ensure the security of your Alibaba Cloud account, we recommend that you use the AccessKey pair of a RAM user.
  6. Click Save & Test.

Step 3: Add a dashboard

  1. In the left-side navigation pane, choose Icon 1 > Dashboards.
  2. In the New Panel panel, click Choose Visualization.
  3. Configure template variables.

    You can configure template variables in Grafana. This way, different results can be displayed in the same chart if you select different variable values.

    1. Configure a template variable for time ranges.
      1. In the upper-right corner of the New dashboard page, select a time range and click the Icon 2 icon.
      2. Click Variables.
      3. Click Add variable.
      4. Set the required parameters to configure a template variable. Then, click Add.
        The following table describes the parameters.
        Parameter Description
        Name The variable name, for example, myinterval. When you use a variable in a search condition, the variable name must be in the $myinterval format.
        Type Select Interval.
        Lable Enter time interval.
        Values Enter 1m,10m,30m,1h,6h,12h,1d,7d,14d,30d in the Values field.
        Auto Option Turn on the Auto Option switch and use the default settings for other parameters.
    2. Configure a template variable for domains.
      1. On the Variables page, click New.
      2. Set the required parameters to configure a template variable. Then, click Add.
        Parameter Description
        Name The variable name, for example, hostname. When you use a variable in a search condition, the variable name must be in the $hostname format.
        Type Select Custom.
        Lable Enter a domain name.
        Custom Options Enter *,www.host.com,www.host0.com,www.host1.com in the "Values separated by comma" field. This value indicates that you can view the access to all domains. You can also view the access to www.host.com, www.host0.com, or www.host1.com.
        Selection Options Use the default settings.
    3. In the left-side navigation pane, click Save.
  4. Add visualized panels.
    • Add a graph panel to show page views (PVs) and unique visitors (UVs).
      1. Click the Icon 3 icon in the upper-right corner.
      2. In the New Panel panel, click Add Query.
      3. Click the Icon 4 icon and select Graph from the Visualization drop-down list.
      4. Click the Icon 5 icon and enter UV&PV in the Title field.
      5. Click the Icon 6 icon, select Logservice from the Query drop-down list, and then set the required parameters. The following table describes the parameters. grafana-pv&uv01
        Parameter Description
        Query The query statement. In this example, the following query statement is executed:
        $hostname| select approx_distinct(remote_addr) as uv ,count(1) as pv , __time__ - __time__ % $$myinterval as time group by time order by time limit 1000
        In the query result, $hostname is replaced by a specified domain name, and $$myinterval is replaced by a specified time interval.
        Notice Two dollar signs ($$) precede myinterval and one dollar sign ($) precedes hostname.
        X-Column Enter time.
        Y-Column Enter uv,pv.
      6. If a significant difference exists between the value of UV and the value of PV, you can use a dual Y-axis chart to show UV and PV. grafana-pv&uv02
      7. Click the Save icon icon to save your settings.
    • Add a graph panel to show inbound and outbound traffic.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select sum(body_byte_sent) as net_out, sum(request_length) as net_in,__time__ - __time__ % $$myinterval as time group by __time__ - __time__ % $$myinterval limit 10000
      In the query result, $hostname is replaced by a specified domain name, and $$myinterval is replaced by a specified time interval.
      Notice Two dollar signs ($$) precede myinterval and one dollar sign ($) precedes hostname.
      X-Column Enter time.
      Y-Column Enter net_in,net_out.
    • Add a pie chart panel to show the proportions of HTTP request methods.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select count(1) as pv ,method group by method

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter pie.
      Y-Column Enter method,pv.
    • Add a pie chart panel to show the proportions of HTTP request codes.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select count(1) as pv ,status group by status

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter pie.
      Y-Column Enter status,pv.
    • Add a pie chart panel to show the request sources of frequently accessed pages.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select count(1) as pv , referer group by referer order by pv desc

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter pie.
      Y-Column Enter referer,pv.
    • Add a table panel to show pages that rank in the top places for high latency.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select URL as top_latency_URL ,request_time order by request_time desc limit 10

      In the query result, $hostname is replaced by a specified domain name.

      X-Column You do not need to set this parameter.
      Y-Column Enter top_latency_url,request_time.
    • Add a table panel to show hot pages.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select count(1) as pv, split_part(URL,'?',1) as path group by split_part(URL,'?',1) order by pv desc limit 20

      In the query result, $hostname is replaced by a specified domain name.

      X-Column You do not need to set this parameter.
      Y-Column Enter path,pv.
    • Add a table panel to show the pages with the most access requests to which a non-200 HTTP status code is returned.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname not status:200| select count(1) as pv , url group by url order by pv desc

      In the query result, $hostname is replaced by a specified domain name.

      X-Column You do not need to set this parameter.
      Y-Column Enter uv,pv.
    • Add a singlestat panel to show average latency.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname | select avg(request_time) as response_time, avg(upstream_response_time) as upstream_response_time ,__time__ - __time__ % $$myinterval as time group by __time__ -  __time__ % $$myinterval limit 10000
      In the query result, $hostname is replaced by a specified domain name, and $$myinterval is replaced by a specified time interval.
      Notice Two dollar signs ($$) precede myinterval and one dollar sign ($) precedes hostname.
      X-Column Enter time.
      Y-Column Enter upstream_response_time,response_time.
    • Add a logs panel to show detailed logs.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Note Each page can show a maximum of 100 log entries. The maximum value of the Logs Per Page parameter is 100.
    • Add a pie chart panel to show client statistics.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname  | select count(1) as pv, case when  regexp_like(http_user_agent , 'okhttp') then 'okhttp' when  regexp_like(http_user_agent ,  'iPhone') then 'iPhone' when regexp_like(http_user_agent ,  'Android')  then 'Android' else 'unKnown' end as http_user_agent group by  http_user_agent order by pv desc limit 10

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter pie.
      Y-Column Enter http_user_agent,pv.
    • Add a graph panel to show the total number of requests for each HTTP code. The total number is calculated within 1 minute.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname  | select to_unixtime(time) as time,status,count from (select time_series(__time__, '1m', '%Y-%m-%d %H:%i', '0')  as time,status,count(*) as count from log group by status,time order by time limit 10000)

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter time.
      Y-Column Enter col1#:# col2. col1 is the aggregated column and col2 is one of the other columns.
    • Add a worldmap panel to show the distribution of source IP addresses.
      For more information about how to add a panel, see Add a graph panel to show PV and UV statistics. The following table describes the related parameters.
      Parameter Description
      Query The query statement. In this example, the following query statement is executed:
      $hostname  | select   count(1) as pv ,geohash(ip_to_geo(arbitrary(remote_addr))) as geo,ip_to_country(remote_addr) as country  from log group by country having geo <>'' limit 1000

      In the query result, $hostname is replaced by a specified domain name.

      X-Column Enter map.
      Y-Column Enter country,geo,pv.
      Parameter Description
      Location Data Select geohash.
      Location Name Field Enter country.
      geo_point/geohash Field Enter geo.
      Metric Field Enter pv.

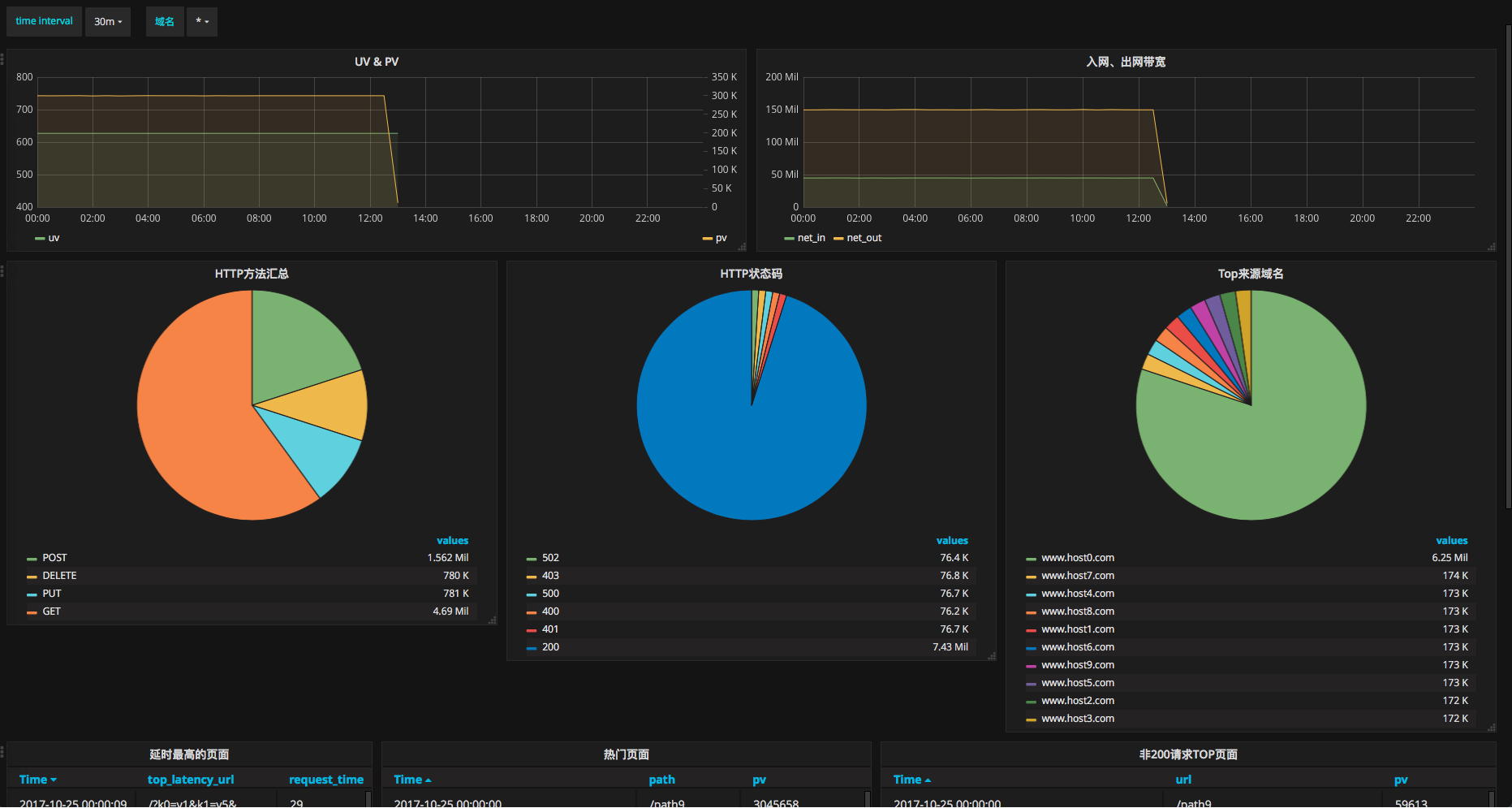

  5. View the results.

    On the top of Dashboard page, you can select a time range. You can also filter the results by time interval and hostname.

FAQ

  • Where are Grafana logs stored?
    Grafana logs are stored in the following directories:
    • macOS: /usr/local/var/log/grafana
    • Linux: /var/log/grafana
  • What can I do if aliyun-log-plugin_linux_amd64: permission denied appears in logs?

    Grant the execute permissions on the dist/aliyun-log-plugin_linux_amd64 directory of the plug-in directory.
