MQ for MQTT allows you to query information about online MQTT clients (devices). You can query the number of online devices that subscribe to a topic or correspond to a group ID, or query the online status and subscriptions of a device with the specified client ID.

You can go to the query page from one of the following paths:

  • In the left-side navigation pane, choose Connections.

  • In the left-side navigation pane, choose Groups. Locate the row that contains the target group ID and click Connections in the Actions column.

Query by topic

You can query information about all the devices that subscribe to the specified topic.

  1. On the Connections page, click the Search by Topic tab.

  2. Enter complete topic information, including Parent Topic and Subtopic.

  3. Click Search.

Query by group ID

You can query the number of online devices that correspond to the specified group ID. This function is applicable to macro statistics.

  1. On the Connections page, click the Search by Group ID tab.

  2. Enter a group ID and set the query time range.

  3. Click Search.

The Connected Clients chart shows the number of online devices whose names start with the specified group ID in the selected time range. The statistics are collected by the distributed data collection component, which may result in delays and some errors.

Query by client ID

Each device has a unique client ID that is concatenated by the group ID and device ID. You can query the online status and subscriptions of the device by using the specified client ID.

  1. On the Connections page, click the Search by Client ID tab.

  2. Enter a group ID and device ID.

  3. Click Search.

The query result consists of two parts:

  • Connection Information: includes the client address and the last update time of the device.

  • Subscription Information: displays all the topics that are managed by the current client ID and the QoS information.

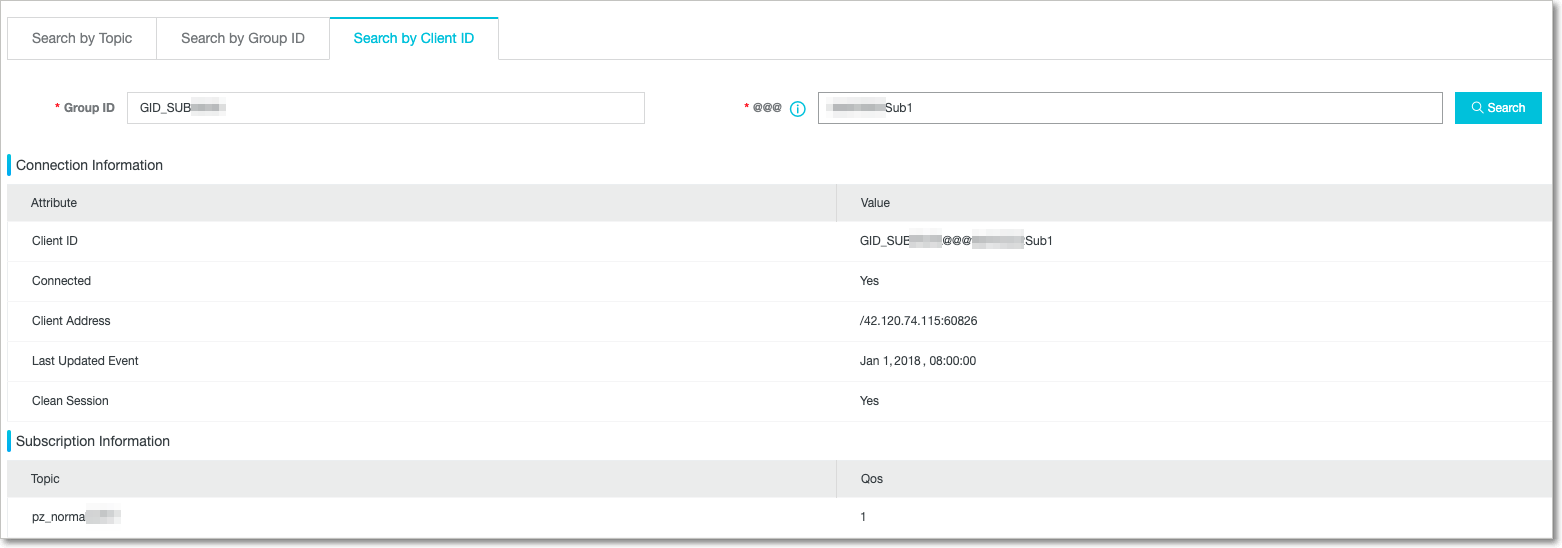

Figure 1. Connection query
