Overview

Last Updated: Mar 27, 2018

Table Store Stream is a data channel that retrieves incremental data from Table Store tables. You can use the Table Store Stream API to obtain these changes. You can process incremental data streams in real time and replicate changes.

How Stream works

As a distributed NoSQL database, Table Store stores changes in the commit logs of Table Store when executing write operations (including put, delete, and update). Meanwhile, the database also performs regular checkpoints to flush earlier commit log entries.

When Stream is enabled, the log file is retained. The incremental data can be read through the channels provided by Stream during the retention period.

Table Store stores data in shards. Therefore, operations made to the same shard share one commit log. The incremental data is also retrieved at shard level.

When Stream is enabled, the system generates and maintains an offset value (an iterator) to indicate the current read position. You can obtain the iterator of the current shard using the GetShardIterator operation. The iterator can be passed in later when you read incremental data stored in this shard. This makes sure that Stream knows which row of log records to read from and return the incremental data. When the incremental data is returned, Stream also returns a new offset for subsequent reads. The whole process can be compared to reading paged data where the iterator is equivalent to the offset of the page.

For example, your database generates some database log files in sequence, as shown in the following figure.

stream4

When you enable Stream on row 3 of file A, the iterator points to row 3 of file A. When reading data, you can pass in the iterator to read modifications that occurred after the third operation pk3 in this figure.

The Stream API also provides an operation to disable this data stream. When you enable it again, Stream generates a new iterator for the current shard, pointing to a new offset that marks the current time. You can use this iterator to read incremental data that occurs after the current time.

Write operations that occur on the same primary key must be read in sequence to guarantee consistency. However, before reading the incremental data, you do not know which primary keys have changes. Therefore, the operation for reading incremental data takes a shard ID and reads from a specific shard. To read the incremental data of the entire table, you can list all shards of the current table. Stream makes sure that write operations made to the same shard are returned in the sequence they were made. In this way, data changes made to a specific shard are read in the same sequence as they were written, and the data consistency for the same primary key can be guaranteed. If you continue to read the Stream data for all the shards, you can make sure that all incremental data in the table is read.

You can either enable Stream when creating a table or enable or disable Stream later using the UpdateTable operation. When a put, update, or delete operation occurs, a modification record is written to Stream. The record indicates the primary key values of the row that you modified and the actual modifications.

Note:

  • Each modification record exists in Stream only once.
  • For each shard, Stream processes modifications in the sequence they were made. However, modifications made to different shards are not sequenced.

Example

stream1

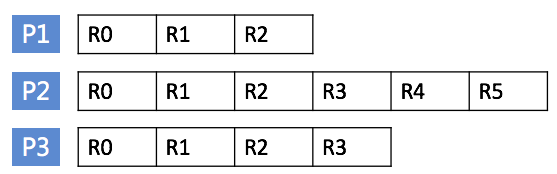

In this figure, the current table has three shards. Each row in this figure represents a shard, and each column represents an update operation on a specific shard. Each shard maintains its own update log. You can use the DescribeStream operation to obtain information about the shard, and then read the changes in sequence for this shard. However, the system may split or merge shards in response to varying loads. New shards are created during merge or split operations, and earlier shards no longer generate new incremental data.

stream2

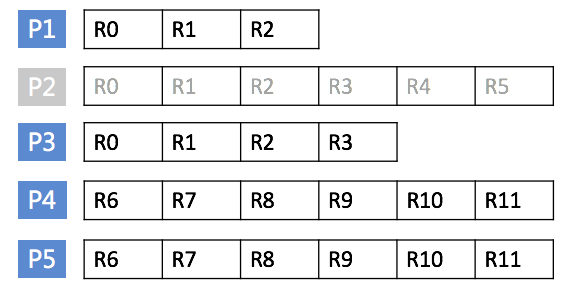

In this figure, shard P2 splits into shards P4 and P5. You can read data from shards P4 and P5 in parallel, without affecting one another. However, before you read from shards P4 and P5, make sure that you have read all incremental data on shard P2.

stream3

For example, in this figure, when you start reading the R6 log entry of shard P4, make sure that R5 of shard P2 has already been read. After R5 is read, shard P2 does not generate new data.
