Before creating VPCs and VSwitches, you need to plan the quantity and CIDR blocks of VPCs and VSwitches according to specific business.

VPC (Virtual Private Cloud) is a private network dedicated to you in Alibaba Cloud. VPCs are logically isolated from other VPCs in Alibaba Cloud. More and more users use the VPC network because:

  • Isolated network environment

    Based on tunneling technology, VPC isolates the data link layer and provides an independent, isolated, and safe network for each user.  Resources within a VPC can communicate with each other over the intranet, but cannot directly communicate with resources in other VPCs unless you have configured an EIP or a NAT IP.

  • Controllable network configurations

    VPC is a private network dedicated to you in Alibaba Cloud. You have full control over your VPC, such as specifying its IP address range, and configuring route tables and network gateways. You can also use Alibaba Cloud resources such as ECS, RDS, and SLB in your own VPC. Additionally, you can connect a VPC to another VPC or to an on-premises IDC network to form an on-demand network environment, which allows you to smoothly migrate applications to Alibaba Cloud and expand the on-premises IDC.

    For more information, see What is VPC.

To use a VPC, you must first plan a VPC network. You can start planning and designing your VPC by answering the following questions:

Q1: How many VPCs are required?

  • One VPC

    We recommend that you create one VPC if you do not have requirements to deploy your system in multiple regions and the system is not required to be isolated by the VPC.  Currently, a VPC can run up to 15,000 cloud product instances, which is large enough to meet your requirements.

  • Multiple VPCs

    We recommend that you create multiple VPCs if you have the following requirements:

    Deploy cloud product resources in different regions.

    VPCs are a region-specific resource that cannot be deployed across regions. If you have to deploy different systems in different regions, you have to create multiple VPCs. You can use products such as Express Connect, VPN Gateway and CEN to connect VPCs.

  • Isolate different systems

    If you have to isolate your systems, such as isolate the production environment from the test environment, create multiple VPCs. Different VPCs are completely isolated.

Question 2: How many VSwitches are required?

In general, we recommend that you create at least two VSwitches for each VPC, and deploy these two VSwitches in two different zones (Zones are physical areas with independent power supplies and networks in a region. Zones within the same region are interconnected over the intranet). This protects your applications from failure of a single location.

Network latency between different zones in the same region is very small.  You have to verify the network latency in your real business system. The network latency might be larger than expected due to complicated systems calls or cross-zone calls.  Optimize and adjust the system to find a balance between high availability and low latency.

Additionally, the number of VSwitches is related to the system size and system design.  If the front-end system requires mutual access to the Internet, consider deploying different front-end systems under different VSwitches for better disaster tolerance. Then, deploy the backend system in other VSwitches.

Question 3: How to specify the private IP address range?

When creating VPCs and VSwitches, you have to specify the private IP address range for the VPC and the VSwitch in the form of a Classless Inter-Domain Routing (CIDR) block.
  • Private IP address range of VPC

    Use 192.168.0.0/16, 172.16.0.0/12, and 10.0.0.0/8 or their subsets as the private IP address range for your VPC. Note the following when planning the private IP address range of VPC:

    • If you have only one VPC and it does not have to communicate with a local data center, you are free to use any IP address range as listed in the previous table.

    • If you have multiple VPCs, or you want to build a hybrid cloud composed of one or more VPCs and local data centers, we recommend that you use the subset of these standard IP address ranges as the IP address range for your VPC and make sure that the netmask is no larger than /16.

    • You also need to consider whether the classic network is used when selecting a VPC CIDR block. If you plan to connect cloud product instances in a classic network with a VPC, we recommend that you do not use the IP address range 10.0.0.0/8, which is also used by the classic network.

  • Private IP address range of VSwitch

    The IP address range of a VSwitch can be the same as the VPC that it belongs to, or a subset of the IP address range of the VPC. For example, if the IP address range of a VPC is 192.168.0.0/16, then the IP address range of the VSwitch can be 192.168.0.0/16, or any IP address ranges from 192.168.0.0/17 to 192.168.0.0/29.

    Note the following when planning the IP address range of a VSwitch:

    • The allowed block size for a VSwitch is between a /16 netmask and /29 netmask, which can provide 8 to 65,536 IP addresses. The reason for this limitation is that the /16 netmask is larger enough to use with 65,532 IP addresses, while the /29 netmask is too small.

    • The first and last three IP addresses of a VSwitch are reserved by the system.  For example, for the VSwitch of the IP address range 192.168.1.0/24,  The addresses 192.168.1.253, 192.168.1.254, and 192.168.1.255 are system reserved addresses.

    • The ClassicLink function enables ECS instances in the classic network to communicate with ECS instances in VPC CIDR blocks of 192.168.0.0/16, 10.0.0.0/8, and 172.16.0.0/12. If you want to connect an ECS instance in the classic network to a VSwitch using the ClassicLink function, and the IP address range of the VPC is 10.0.0.0/8, make sure the IP address range of the VSwitch is 10.111.0.0/16.  For more information, see ClassicLink overview.

    • Consider the number of cloud product instances running in the VSwitch.

Question 4: How to specify the private IP address range when planning to connect a VPC to a local data centers or other VPCs?

When you have to connect a VPC with other VPCs or local data centers, make sure that the CIDR block for each VPC is not the same.

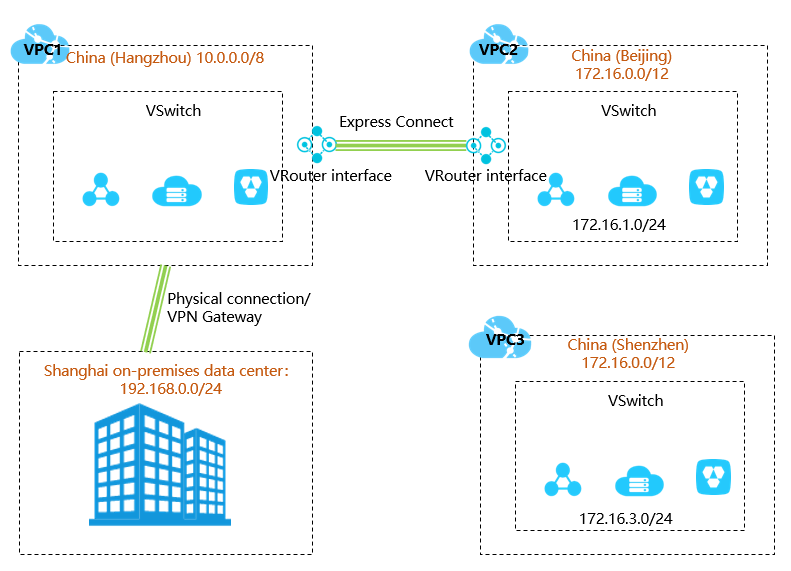

You have VPC1 in China (Hangzhou), VPC2 in China (Shanghai) and VPC3 in China (Beijing). VPC1 and VPC2 can communicate with each other over the intranet through Express Connect. VPC3 has no requirements to communicate with other VPCs, but might need to communicate with VPC2 in the future.   In addition, you have a local data center, which is connected to VPC1 by applying for a leased line.

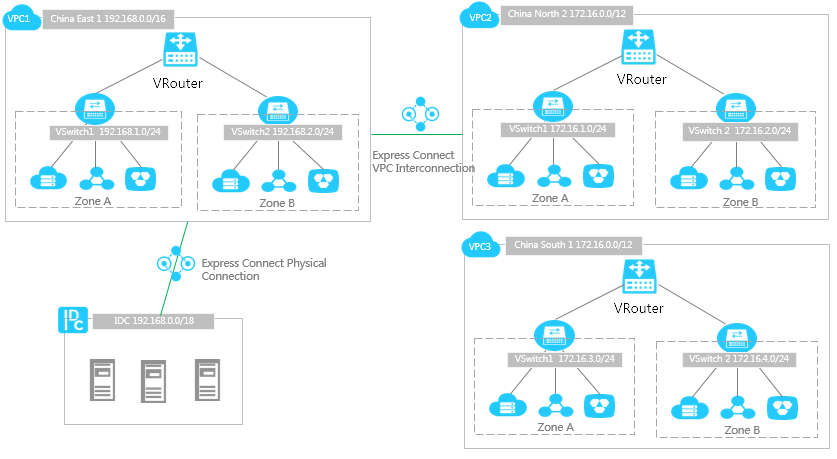

When you have to connect a VPC with other VPCs or local data centers, make sure that the CIDR block for each VPC is not the same. Therefore, in this example, the CIDR blocks of VPC1 and VPC2 are different, while the CIDR block of VPC3 is the same as VPC2.  However, the VSwitches in these two VPCs use completely different CIDR blocks to meet future demands for communication with each other. For communication among VPCs, the CIDR blocks of VSwitches to communicate with each other cannot be the same, but the CIDR blocks of the VPCs can be the same.

When specifying IP address ranges for VPCs requiring communication with other VPCs or local data centers, follow these rules:

  • Try to use different IP address ranges for different VPCs. You can use the subsets of the standard IP address ranges to increase the number of VPCs.

  • If the IP address ranges of the VPCs are the same, then use different IP address ranges for VSwitches in the VPCs.

  • If neither of the first or second rule is met, make sure that the IP address ranges of VSwitches requiring communication are different.
