:Test results of ApsaraDB RDS instances that run MySQL 5.6

Last Updated:Oct 25, 2023

This topic describes the performance test results of general-purpose ApsaraDB RDS instances that run MySQL 5.6.

Note

Environment

In this stress testing, SysBench is used to test the performance of the five RDS instances that use local disks. These RDS instances use different instance types.

  • Instance types: rds.mysql.t1.small, rds.mysql.s2.large, rds.mysql.m1.medium, rds.mysql.c1.xlarge, and rds.mysql.c2.xlarge

  • Instance family: general-purpose

  • Edition: RDS High-availability Edition

  • Storage type: local disk

Configurations

The performance is significantly affected by the data volume, stress testing duration, and parameter settings. The following configurations are used for this stress testing:

  • Data volume: The data volume and the number of tables on each RDS instance that you want to test are different. Therefore, the test results for some of the five RDS instances may be similar.

  • Stress testing duration: The stress testing duration is 60 seconds for all the RDS instances.

  • Parameter settings:

    • sync_binlog=1and innodb_flush_log_at_trx_commit=1: ensure that the data submitted each time is completely written to disks.

    • rpl_semi_sync_master_enabled=ON: enables the semi-synchronous mode for an RDS instance to ensure data consistency between the primary and secondary RDS instances.

    • Performance_schema=ON: automatically enables Performance Schema for RDS instances that use instance types with a memory size greater than or equal to 8 GB.

      Note

      These parameter settings are contained in the standard parameter template for ApsaraDB RDS for MySQL. If the standard parameter template is applied to all the RDS instances, data consistency is maximized, and the test environment is more similar to the production environment.

Results

Two types of queries can be used to perform stress testing. You can determine the type of stress testing based on your data volume.

  • Stress testing for cache-based queries: This type of stress testing is suitable for scenarios that involve a small amount of data. You can store all data in the InnoDB buffer pool for access. For more information about how to change the size of the InnoDB buffer pool, see Change the size of the InnoDB buffer pool for an ApsaraDB RDS for MySQL instance.

  • Stress testing for disk I/O-based queries: This type of stress testing is suitable for scenarios that involve a large amount of data. You can store only the most frequently used data in the InnoDB buffer pool for access. During the stress testing, data is read from or written to disks, and the InnoDB buffer pool is updated.

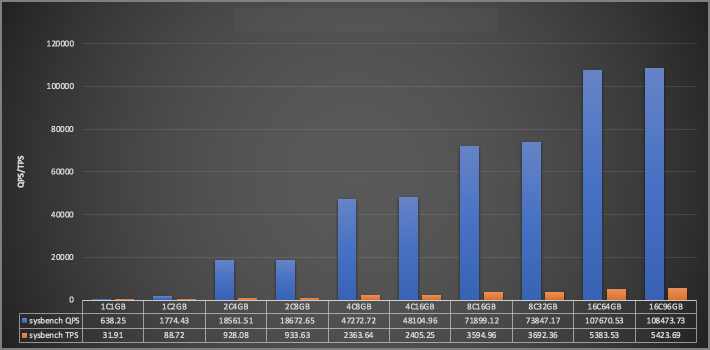

Type 1: Stress testing for cache-based queries

内存命中型

Specification (instance type)

Data volume in a single table

Number of tables

Maximum number of connections

IOPS

Number of SysBench threads

Number of SysBench reads

Number of SysBench writes

1 core and 1 GB of memory

(rds.mysql.t1.small)

25000

32

300

600

8

450394

128684

2 cores and 4 GB of memory

(rds.mysql.s2.large)

25000

32

1200

2000

8

1045100

298598

4 cores and 16 GB of memory

(rds.mysql.m1.medium)

25000

128

4000

7000

16

1063846

303956

8 cores and 32 GB of memory

(rds.mysql.c1.xlarge)

25000

128

8000

12000

32

2177504

622144

16 cores and 64 GB of memory

(rds.mysql.c2.xlarge)

25000

128

16000

14000

64

4686654

1339044

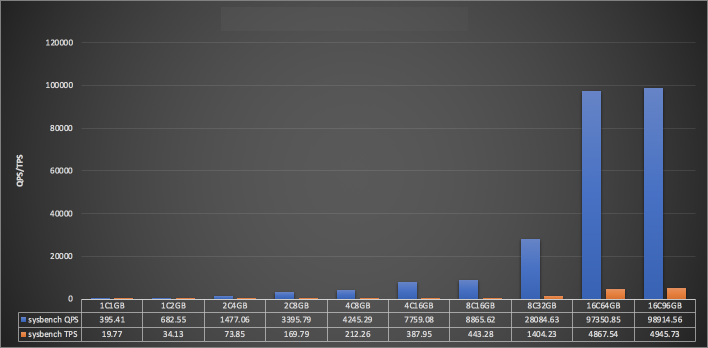

Type 2: Stress testing for disk I/O-based queries

磁盘I/O型

Specification (instance type)

Data volume in a single table

Number of tables

Maximum number of connections

IOPS

Number of SysBench threads

Number of SysBench reads

Number of SysBench writes

1 core and 1 GB of memory

(rds.mysql.t1.small)

80000

32

300

600

8

406238

116068

2 cores and 4 GB of memory

(rds.mysql.s2.large)

80000

32

1200

2000

8

1013614

289604

4 cores and 16 GB of memory

(rds.mysql.m1.medium)

800000

128

4000

7000

16

1040154

295768

8 cores and 32 GB of memory

(rds.mysql.c1.xlarge)

800000

128

8000

12000

32

2119922

605692

16 cores and 64 GB of memory

(rds.mysql.c2.xlarge)

800000

128

16000

14000

64

4434220

1266920
