DirectMail monitoring service

Last Updated: Sep 27, 2017

The DirectMail monitoring service provides monitoring indicators for web/API-based mailing, SMTP mailing, and account exceptions. It helps you monitor the status of your DirectMail service in real time.

Access DirectMail monitoring service

The DirectMail monitoring service is available in the CloudMonitor console. You can access the service using either of the following methods:

  • Click the entry link on the overview page of the DirectMail console. You will then be redirected to the DirectMail monitoring page in the CloudMonitor console.

CloudMonitor1

  • Log on to the CloudMonitor console, and in the left-side navigation pane, click Cloud Service Monitoring > DirectMail.

CloudMonitor2

DirectMail monitoring service page

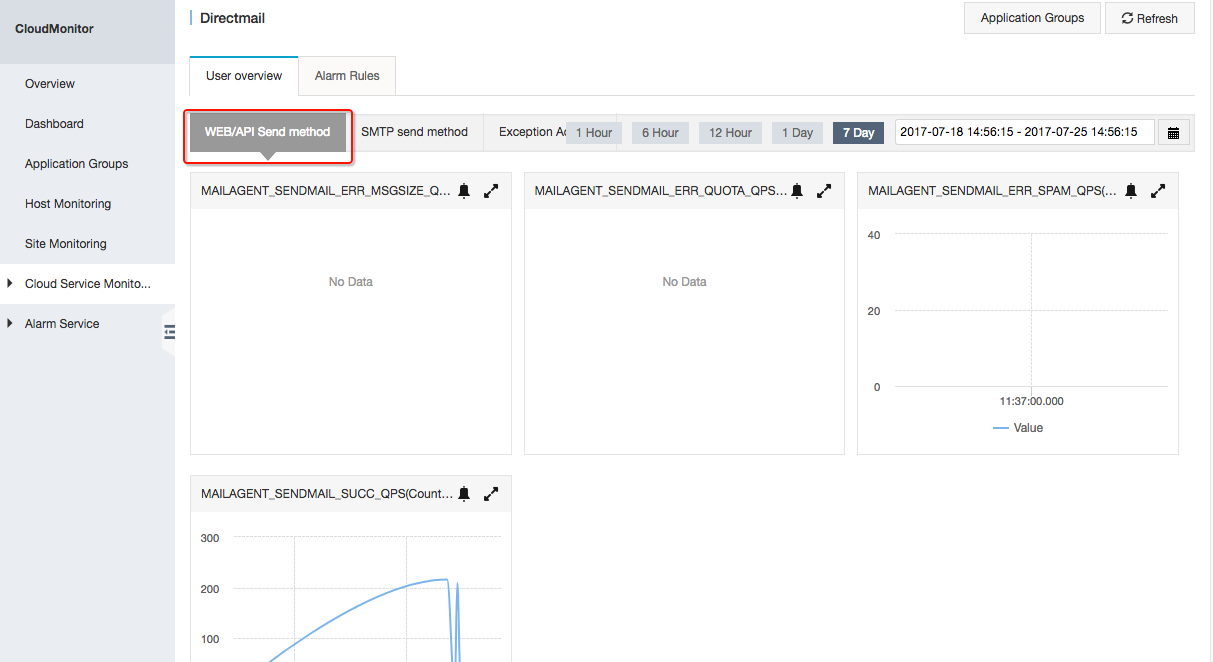

The DirectMail monitoring service page contains the User Overview and Alarm Rules sections.

CloudMonitor3

View DirectMail monitoring information

The overview page displays monitoring information at the user level. After you have purchased and activated the DirectMail service, CloudMonitor automatically collects data on monitoring metrics such as web/API-based mailing, SMTP mailing, and account exceptions.

Web/API-based mailing monitoring

Web/API-based Mailing

SMTP mailing monitoring

SMTP Mailing

  • Account exception monitoring

    Account Exceptions

Create alarm rules

You can view and manage all your alarm rules on the alarm rule list page.

  1. On the DirectMail monitoring page, click Alarm Rules.Alert Policy List

  2. At the upper-right corner, click New Alarm Rule.Alert Policy

  3. Configure all the required settings, and then click Confirm.
    Note: If you have no contact group yet, click Quickly Create a Contact Group to create a new contact group.contact group

DirectMail monitoring indicators

Metric Unit Minimum monitoring granularity
WEB/API error - overlong QPS Count/Min 1 minute
WEB/API error - over-quota QPS Count/Min 1 minute
WEB/API error - junk mail QPS Count/Min 1 minute
WEB/API mail success QPS Count/Min 1 minute
SMTP authentication failure QPS Count/Min 1 minute
SMTP authentication success QPS Count/Min 1 minute
SMTP error - overlong QPS Count/Min 1 minute
SMTP error - over-quota QPS Count/Min 1 minute
SMTP error - junk mail QPS Count/Min 1 minute

Note:

  • Monitoring data is stored for up to 31 days.
  • You can view up to 14 consecutive days of monitoring data.
