This topic describes how to renew, change the configuration of, and perform O&M on MQTT instances. Instance renewal and configuration change are only applicable to subscription instances, and are not applicable to Pay-As-You-Go instances.

Renew an instance

During the seven days before an MQTT instance expires, renewal notifications are sent to the mobile phone that is registered with the account. If you receive such notifications, renew your instance promptly. If the instance is not renewed upon expiration, it is retained for seven days and then is automatically released.

  1. In the left-side navigation pane, choose Instances.

  2. On the Instances page, select the target instance.

  3. On the Instance Information tab that appears by default, click Renew.

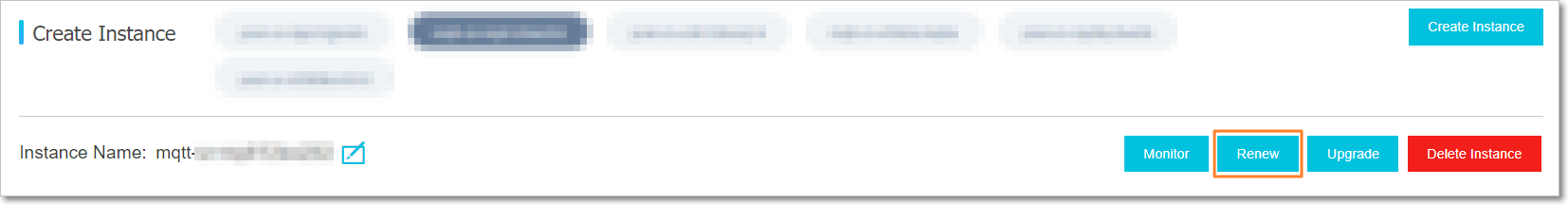

Figure 1. Renew an instance


Activate automatic renewal

You can configure automatic renewal for subscription instances in the Alibaba Cloud console to avoid impact to services resulting from instance expiration.

  1. On the top navigation bar, choose Billing Management > Renew and go to the Renew console.

  2. In the left-side navigation pane, choose MQTT. Locate the row that contains the target instance and click Auto Renew in the Actions column.

Change instance configuration

You need to scale out instances through configuration changes to handle the increasing service scale.

  1. In the left-side navigation pane, choose Instances.

  2. On the Instances page, select the target instance.

  3. On the Instance Information tab that appears by default, click Upgrade. The following figure shows the page that appears.

    Note
    • The upgraded configuration of a Basic Edition instance takes effect in real time. The upgrade of an Enterprise Platinum Edition instance must be performed by a technical engineer of MQ for MQTT. The upgrade may take some time and does not affect service operation.

    • Instance downgrading takes effect in real time. Note that refunds are unavailable for downgrades, so we recommend that you downgrade configuration near the end of a billing cycle.

    • Cross-version downgrading is not supported. That is, the Basic Edition configuration cannot be changed to the Enterprise Platinum Edition, and vice versa.

Perform instance O&M

You can view instance statistics during the instance runtime, including the message sending and receiving TPS, subscriptions, and client connections. You can set the instance alarm function to monitor instance usage in real time.

View instance statistics

  1. In the left-side navigation pane, choose Instances.

  2. On the Instances page, select the target instance.

  3. Click the Statistics tab and set the time range. Then, click Search.

    Figure 2. Instance O&M statistics


Set the instance monitoring alarm

MQ for MQTT provides a series of metrics on a per-instance basis, such as message sending and receiving TPS, subscriptions, and client connections. You can configure the sending of alarm messages to the mobile phone numbers of contacts when these metrics exceed the alarm thresholds, to notify them to promptly upgrade specifications.

The alarm thresholds are set to 70% of the capacity by default. You can define the alarm thresholds and alarm switches.

  1. In the left-side navigation pane, choose Instances.

  2. On the Instances page, select the target instance.

  3. On the Instance Information tab that appears by default, click Monitor.

  4. In the Monitoring Alarms dialog box, enter an alarm threshold and select Enable for Alarms. Then, click OK.

    Figure 3. Monitoring Alarms
