Object Storage Service:Use event notifications to monitor object changes in real time

Last Updated:Feb 21, 2024

You may want to monitor changes to objects in Object Storage Service (OSS) for various reasons, such as real-time processing, synchronization, listening, business logic triggers, and logging. You can configure event notification rules to monitor objects and receive notifications so that you can act accordingly at the earliest opportunity.

Prerequisites

Message Service (MNS) is activated. You can activate MNS on the MNS product page.

Usage notes

  • Event notifications require OSS and MNS to work in a coordinated manner. When an operation is performed on your OSS resources, an event notification rule is triggered for MNS to send a message. MNS may fail to be triggered to send a message. You can check the value (Base64-encoded) of the x-oss-event-status header in the response to determine whether MNS is triggered. If the decoded value of the x-oss-event-status header is {"Result": "Ok"}, MNS is triggered. If the decoded value of the x-oss-event-status header is not {"Result": "Ok"}, MNS is not triggered.

  • You are charged by MNS when you use the event notification feature. For more information, see Pricing.

  • You can configure event notification rules for objects in buckets that reside in the following regions: China (Hangzhou), China (Shanghai), China (Qingdao), China (Beijing), China (Zhangjiakou), China (Shenzhen), China (Chengdu), China (Hong Kong), US (Silicon Valley), US (Virginia), Japan (Tokyo), Singapore, Australia (Sydney), Indonesia (Jakarta), Philippines (Manila), India (Mumbai), Germany (Frankfurt), and UK (London).

  • You can configure up to 10 event notification rules in a region.

  • Notifications are not triggered for TS and M3U8 objects that are generated by ingesting streams over Real-Time Messaging Protocol (RTMP). For more information about stream ingest over RTMP, see Overview.

How it works

If an operation performed on your OSS resources triggers an event notification rule, MNS sends a notification about the operation to the specified HTTP server or MNS queue. The following figure shows the process in detail.


Events

Important
  • The ObjectCreatedGroup, ObjectDownloadedGroup, and ObjectRemovedGroup events are supported only in the following regions: China (Hong Kong), US (Silicon Valley), US (Virginia), Germany (Frankfurt), Australia (Sydney), Singapore, and UK (London).

  • The FinishRestore event is supported only for Cold Archive and Deep Cold Archive objects.

Event

Description

PutObject

An object is created or overwritten by using simple upload.

PostObject

An object is created or overwritten by using form upload.

CopyObject

An object is created or overwritten by copying an object.

InitiateMultipartUpload

A multipart upload task is initiated.

UploadPart

An object is created or overwritten by using multipart upload.

UploadPartCopy

An object is created or overwritten by using multipart copy.

CompleteMultipartUpload

A multipart upload task is completed.

AbortMultipartUpload

A multipart upload task is canceled and uploaded parts are deleted.

AppendObject

An object is created or appended by using append upload.

GetObject

An object is obtained by using simple download.

DeleteObject

An object is deleted.

DeleteObjects

Multiple objects are deleted.

ObjectReplication:ObjectCreated

An object is created in a data replication task.

ObjectReplication:ObjectRemoved

An object is deleted in a data replication task.

ObjectReplication:ObjectModified

An object is overwritten in a data replication task.

ObjectCreatedGroup

An object creation or overwrite operation is performed.

ObjectDownloadedGroup

An object download operation is performed.

ObjectRemovedGroup

An object deletion operation is performed.

FinishRestore

An object restoration operation is complete.

Event notifications

The content of OSS event notifications is Base64-encoded. After the content is decoded, the content is in the JSON format. The following sample code provides an example on decoded event notification content:

{"events": [
      {
        "eventName": "",  // The event name.
        "eventSource": "", // The source that triggers event notifications. Valid value: acs:oss.
        "eventTime": "", // The time when the event occurred. The time is a timestamp in the ISO 8601 standard.
        "eventVersion": "", // The version of the event notification. The current version is 1.0.
        "oss": {
            "bucket": {
                "arn": "", // The Alibaba Cloud Resource Name (ARN) of the bucket in the following format: acs:oss:region:uid:bucketname.
                "name": "", // The name of the bucket that contains the objects to which the event notification rule applies.
                "ownerIdentity": "" // The owner of the bucket.
            },
            "object": {
                "deltaSize": "", // The size difference between the new object and the original object. If you create an object, the value of this parameter indicates the size of the object. If you overwrite an object, the value indicates the difference between the sizes of the new object and the original object. The value may be negative.
                "eTag": "", // The ETag value of the object.
                "key": "", // The name of the object.
                "position": "", // The position from which the AppendObject operation starts. This parameter applies only to the ObjectCreated:AppendObject event. The first AppendObject operation on an object starts from byte 0 of the object.
                "readFrom": "", // The position from which the GetObject operation starts. This parameter applies only to the ObjectDownloaded:GetObject event. If the GetObject operation is not performed by range, the value of this parameter is 0. Otherwise, the value refers to the position of the byte from which the GetObject operation starts.
                "readTo": "", // The position at which the GetObject operation ends. This parameter applies only to the ObjectDownloaded:GetObject event. If the GetObject operation is not performed by range, the value of this parameter is the object size. Otherwise, the value refers to the position of the first byte after the byte at which the GetObject operation ends.
                "size": "" // The size of the object.
                },
        "ossSchemaVersion": "", // The version of the schema. The current value is 1.0.
        "ruleId": "GetObject", // The ID of the rule that matches the event.
        "region": "", // The region in which the bucket is located.
        "requestParameters": {
            "sourceIPAddress": "" // The source IP address from which the request is sent.
            },
        "responseElements": {
            "requestId": "" // The ID of the request.
            },
        "userIdentity": {
            "principalId": "" // The UID of the requester.
            },
        "xVars": {  // Custom parameters for an OSS callback.
            "x:callback-var1":"value1",
            "x:vallback-var2":"value2"
            }
        }
     }
  ]
}

The following sample code provides an event notification example:

{"events": [
      {
        "eventName": "ObjectDownloaded:GetObject",
        "eventSource": "acs:oss",
        "eventTime": "2016-07-01T11:17:30.000Z",
        "eventVersion": "1.0",
        "oss": {
            "bucket": {
                "arn": "acs:oss:cn-shenzhen:114895646818****:event-notification-test-shenzhen",
                "name": "event-notification-test-shenzhen",
                "ownerIdentity": "114895646818****"},
            "object": {
                "deltaSize": 0,
                "eTag": "0CC175B9C0F1B6468E1199E269772661",
                "key": "test",
                "readFrom": 0,
                "readTo": 1,
                "size": 1
            },
        "ossSchemaVersion": "1.0",
        "ruleId": "GetObjectRule",
        "region": "cn-shenzhen",
        "requestParameters": {
            "sourceIPAddress": "198.51.100.1"
            },
        "responseElements": {
            "requestId": "5FF16B65F05BC932307A3C3C"
            },
        "userIdentity": {
            "principalId": "114895646818****"
            },
        "xVars": {
            "x:callback-var1":"value1",
            "x:vallback-var2":"value2"
            }
        }
     }
  ]
}

Procedure

  1. Log on to the OSS console.

  2. In the left-side navigation pane, click Buckets. On the Buckets page, find and click the desired bucket.

  3. In the left-side navigation tree, choose Data Processing > Event Notification.

  4. On the Event Notification page, click Create Rule.

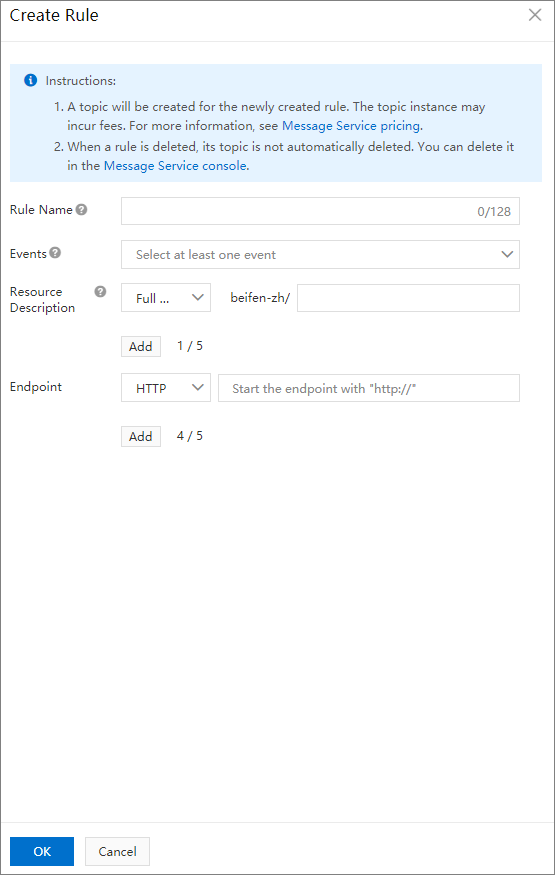

  5. In the Create Rule panel, configure the parameters that are described in the following table.

    Parameter

    Description

    Rule Name

    Specify the name of the event notification rule.

    The name of each event notification rule that is created by using the same Alibaba Cloud account must be unique in the same region. The name of an event notification rule must start with a letter and can contain only letters, digits, and hyphens (-). The name of an event notification rule cannot exceed 85 characters in length.

    Event Type

    Select one or more events from the drop-down list. For example, if you want to receive a notification when a specific object is created or overwritten by copying an object, select CopyObject.

    You can configure an event notification rule for a specific object and specify multiple events that can trigger the rule. You can also configure multiple event notification rules for an object. When you configure multiple event notification rules, take note of the following items:

    • If multiple event notification rules apply to the same object, the events configured in these rules must be different. For example, if you select CopyObject for Event Type when you create an event notification rule for objects whose names contain the images prefix, you cannot select CopyObject for Event Type when you create another event notification rule that applies to objects whose names contain the same prefix.

    • If multiple event notification rules apply to different objects, the values of this parameter in these rules can be the same or different. For example, if you select PutObject for Event Type when you create an event notification rule for objects whose names contain the images prefix and the .png extension, you can select PutObject or DeleteObject for Event Type when you create another event notification rule for objects whose names contain the log prefix and the .jpg extension.

    Important

    If you delete an object from a versioning-enabled bucket without specifying a version ID, the DeleteObject or DeleteObjects event notification is not triggered. In this case, no version of the object is deleted. The current version of the object is stored as a previous version and a delete marker is added to the object.

    For more information about object operations that can trigger events, see Events.

    Resource Description

    Specify the objects to which the event notification rule applies.

    • Select Full Name to apply the rule to an object whose name is the same as the specified name.

      • To create a rule that applies to an object named exampleobject.txt in the root directory of the bucket, enter exampleobject.txt.

      • To create a rule that applies to an object named myphoto.jpg in the destdir directory within the root directory of the bucket, enter destdir/myphoto.jpg.

    • Select Prefix/Suffix to apply the rule to objects whose names contain the specified prefix and extension.

      • To create a rule that applies to all objects in the bucket, leave Prefix and Suffix empty.

      • To create a rule that applies to all objects in the examplefolder directory within the root directory of the bucket, set Prefix to examplefolder/ and leave Suffix empty.

      • To create a rule that applies to all JPG objects in the bucket, leave Prefix empty and set Suffix to .jpg.

      • To create a rule that applies to all MP3 objects in the examplefolder directory within the root directory of the bucket, set Prefix to examplefolder/ and Suffix to .mp3.

    To add another Resource Description entry, click Add. You can specify up to five Resource Description entries in an event notification rule.

    Endpoint

    Specify the terminal to which notifications are sent. Valid values: HTTP endpoints and Queue.

    • HTTP: Enter the HTTP endpoint to which notifications are sent. Example: http://198.51.100.1:8080. For more information about endpoints, see Manage topics and HttpEndpoint.

    • Queue: Enter the name of an MNS queue. For more information about how to create a queue, see Create a queue.

    To add more endpoints or queues, click Add. You can specify up to five Endpoint entries in an event notification rule.

  6. Click OK.

    After you configure the event notification rule, the rule takes effect after approximately 10 minutes.

FAQ

Why do I receive no notifications when I delete objects?

References
