MaxCompute Studio supports Java user-defined function (UDF) and MapReduce development. First, a MaxCompute Java module must be created.

Create a module

Choose File > New > Module, set the module type to MaxCompute Java,  and configure Java  JDK.  Click Next, enter a module name, and click Finish.  MaxCompute Studio automatically creates a Maven  module and introduces MaxCompute dependencies.

Module structure

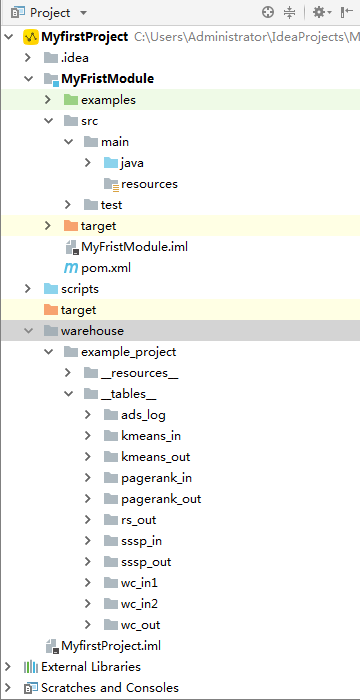

So far, a module for developing a MaxCompute Java program has been established, that is the mDev shown in the following figure.  Its main directories include:

  • src/main/java: Source code for Java program development.

  • examples: Sample code, including unit test (UT) examples. You can see the examples to develop or compile UT.

  • warehouse: Schema and data required for running locally.
