SLB supports forwarding client request based on the domain name and request URL. You can forward client requests from different URLs to different backend servers by adding forwarding rules.

Introduction to domain-name based or URL-based forwarding rules

Layer-7 listeners support configuring forwarding rules to distribute requests based on domain names or request URLs. You can add different forwarding rules associated with different VServer groups to a Layer-7 listener (A VServer group consists of multiple ECS instances). For example, you can forward all read requests to a group of backend servers and forward all write requests to another group of backend servers to optimize resource usage.

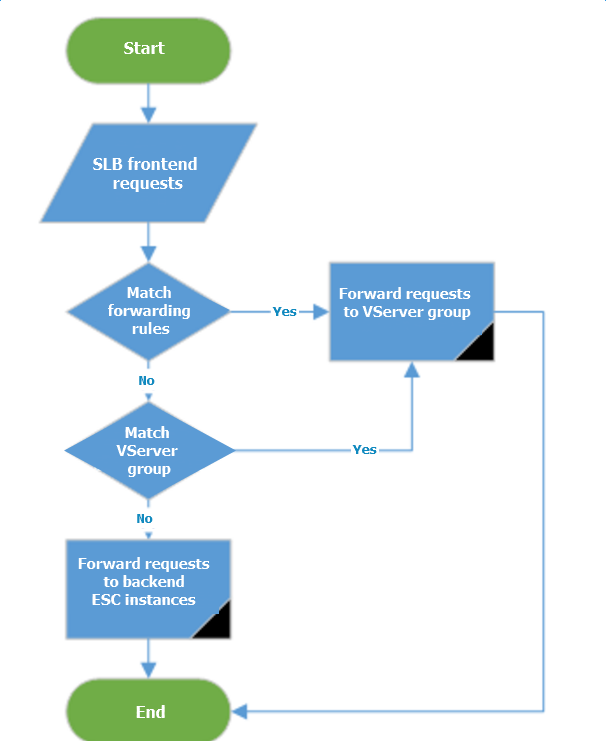

After forwarding rules are configured, the system will check whether a client request matches the configured forwarding rules:

  • If the client request matches a forwarding rule, the request will be forwarded to the VServer group specified in the forwarding rule.
  • If not, the request will be forwarded to the VServer group configured in the listener.
  • If none of the above conditions are met, the request will be forwarded to all the backend ECS instances added to the backend server pool.


You do not need to configure health check settings for each forwarding rule. The following table shows how the health check is done with different configurations.

Dimension Health check configuration The backend server where the health check is performed
Backend servers Use the health check configurations of the listener. All the ECS instances.
VServer group Use the health check configurations of the listener. The ECS instances in the VServer group.
Forwarding rules Use the health check configurations of the listener. The ECS instances in the VServer group associated with the listener.
Note
Because the port numbers of the backend servers are different in a server group, do not specify the health check port when a server group is used. Otherwise, the health check may fail due to inconsistent port numbers.

Configurations of domain-name based or URL-based forwarding rules

You can configure forwarding rules based on the domain name, URL, or both:

  • Domain name only

    When configuring forwarding rules based on a domain name, omit the URL field. For the domain name, only letters, digits, dashes (-), and periods (.) are permitted.



    The domain name supports both exact matching and wildcard matching. For example:

    • Exact domain name: www.aliyun.com
    • Wildcard domain name: *.aliyun.com, *.market.aliyun.com

      When a request matches multiple forwarding rules, the exact domain takes high priority.

      Mode  Request URL Domain name
      www.aliyun.com *.aliyun.com *.market.aliyun.com
      Exact match www.aliyun.com
      Wildcard domain name match market.aliyun.com
      Wildcard domain name match info.market.aliyun.com
  • URL only

    When configuring forwarding rules based on the request path, omit the domain name field. Note the following rules when configuring a URL-based forwarding rule:

    • Only letters, numbers and the following special characters are allowed:

      -. /%? #&

    • The URL must start with a slash (/), but cannot contain only one slash (/).
      Note
      If only one slash (/) is entered, the URL based forwarding rule will not apply correctly.
    • The URL forwarding supports string matching according to the string order.  For example /admin、/bbs、/test.


  • Domain-name and URL-based forwarding

    If you want to forward traffic based on the same domain name, but different paths, you can configure a forwarding rule with both domain name and URL. We recommend further configuring a domain-only forwarding rule to avoid access errors due to no matching URLs.

    For example, there are two domain names: www.aaa.com and www.bbb.com. The requirement is to forward the requests from www.aaa.com/index.html to ServerGroup1 and forward other requests from xxx.html to ServerGroup2. You need to configure the following forwarding rules. If rule2 is absent, requests from www.aaa.com will get a 404 error.



Configure domain-name based or URL-based forwarding rules

Before adding forwarding rules, make sure:

  • You have created a Layer-7 (HTTP/HTTPS) listener. For more information, see Layer-7 listeners.
  • You have created a VServer group.  For more information, see Create a VServer group.

To add a forwarding rule, complete these steps:

  1. Log on to the SLB console.
  2. On the Instances page, select a region.
  3. Click the ID of the SLB instance.
  4. In the left-side navigation pane, click Listeners.
  5. Find the target HTTP/HTTPS listener, click Add Forwarding Rules.

  6. On the Forwarding Rules page, click Add Forwarding Rules.
  7. In the Add Forwarding Rules dialog box, configure rules and click Confirm.
  8. Click Add Forwarding Rules +to add another rule.
