With HTTP ACL policy, you can customize access control rules to filter HTTP requests by client IP, request URL, and commonly used HTTP fields.

Function description

HTTP ACL Policy supports customizing HTTP access control to filter HTTP requests based on a combination of criteria of commonly used HTTP fields, such as IP, URL, Referer, UA, and parameters. This feature applies to different business scenarios, such as anti-leech protection and website admin console protection.

HTTP ACL policy rule

Each HTTP ACL policy rule consists of a Matching condition and Action. When creating a rule, you define the matching condition by configuring matching fields, logical operators, and the corresponding match content, and select the action to be triggered in a match case.

Matching condition

A match condition is composed of matching fields, logical operators, and matching content. The matching content does not support regular expression descriptions, but is allowed to be set to null.

The following table lists all matching fields supported by HTTP ACL policy rules.
Note For WAF Pro instances, only IP, URL, Referer, User-Agent, and Params are supported in matching fields, and a maximum of 20 rules are allowed for each domain name. For WAF Business or Enterprise instances, all the listed matching fields are supported, and you can define up to 100 or 200 rules for each domain name respectively.
Matching field Description Supported logical operators
IP The client IP address.
Note You can add up to 50 IPs or IP segments, separated by commas (,).
  • Has
  • Does not have
URL The requested URL.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
Referer The address of the previous web page with a link to the current request page.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
  • Does not exist
User-Agent The user agent string that identifies information about the client's browser.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
Params The parameters in the request URL, which start after "?". For example, the parameter of the URL www.abc.com/index.html? action=login is action=login.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
Cookie The cookie in the request URL.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
  • Does not exist
Content-Type The Media type of the body of the request (used with POST and PUT requests).
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
X-Forwarded-For The x-forward-for field in the request URL. X-Forwarded-For (XFF) identifies the originating IP address of a client connecting to a web server through an HTTP proxy or load balancer.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
  • Does not exist
Content-Length The length of the request body in octets (8-bit bytes).
  • Value less than
  • Value equals
  • Value more than
Post-Body The response content of the request.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
Http-Method The request method, such as GET, POST.
  • Equals to
  • Does not equal to
Header The customized header field.
  • Includes
  • Does not include
  • Equals to
  • Does not equal to
  • Length less than
  • Length equals
  • Length more than
  • Does not exist
Note Each rule allows a combination of three conditions at most. Multiple conditions in a rule are connected by “AND”, that is, a request must satisfy all the conditions to match the rule.

Action

The following actions can be performed after a rule is matched:

  • Block: blocks the request that matches the condition.
  • Allow: allows the request that matches the condition.
  • Warn: allows the request that matches the condition and triggers an alarm.
Note After specifying Allow or Warn, you can further decide whether to proceed to perform Web application protection, HTTP flood protection, new intelligent protection, regional blocking, and data risk control.

Sort rules

Matching rules follow a specific order. The rule with the higher ranking is matched first.

You can adjust the order of the rules to achieve the optimal protection performance.

Procedure

Follow these steps to add a HTTP ACL policy rule for the protected domain name:
Note Before you perform the following operations, make sure that you have added the domain to WAF for protection. For more information, see WAF deployment guide.
  1. Log on to the Alibaba Cloud WAF console.
  2. Go to the Management > Website Configuration page, and select the region of your WAF instance (Mainland China or International).
  3. Select the domain to be configured, and click Policies.
  4. Enable HTTP ACL Policy, and click Settings.
  5. Click Add Rule, configure the expected rule, and click OK.
    Note For more information about the configuration, see HTTP ACL policy rule. For more information about configuration examples, see Configuration examples.
  6. For a created rule, you can either Edit its content or Delete it. If multiple rules are created, you can click Sort Rules to change the default order of them. By using Move up, Move down, Move to top, and Move to bottom, you decide which rule is matched first.

Configuration examples

HTTP ACL Policy supports various configuration methods. You can work out the best rules based on your business characteristics. You can also use HTTP ACL policy to fix certain Web vulnerabilities.

Some examples are as follows.

Configure IP blacklist and whitelist

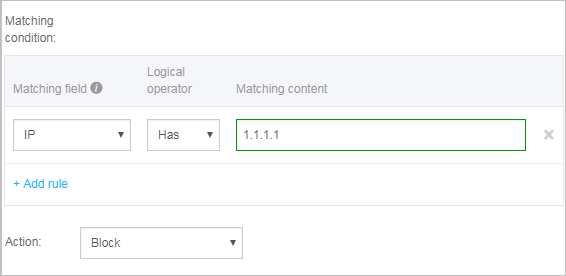

Use the following configuration to block all access from 1.1.1.1.

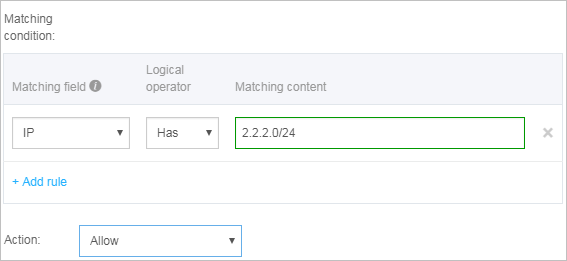

Use the following configuration to allow all access from 2.2.2.0/24.
Note Do not check Proceed to execute web application attack protection or Proceed to execute HTTP flood attack protection.

For more information, see Set up IP whitelist and blcaklist.

Block malicious requests

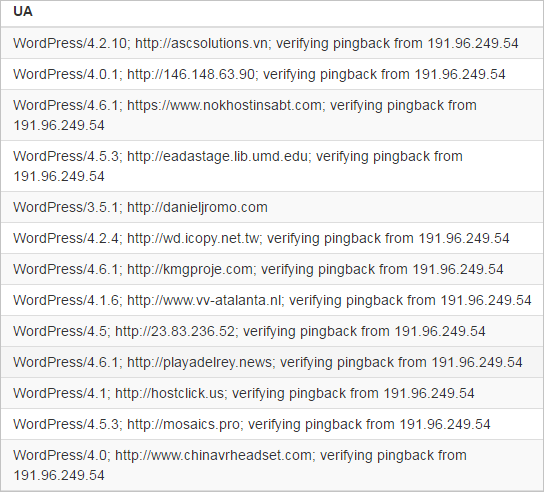

The following figure shows an example of WordPress bounce attack, featuring that the UA contains WordPress.

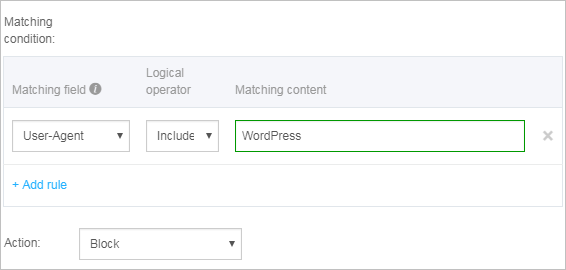

Use the following configuration to defend against this type of attack.

For more information, see Prevent Wordpress pingback attacks.

Block specific URLs

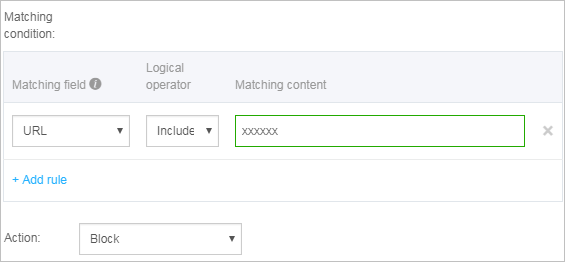

If a large number of IP addresses are requiring a specific but nonexistent URL, you can use the following configuration.

Anti-Leech

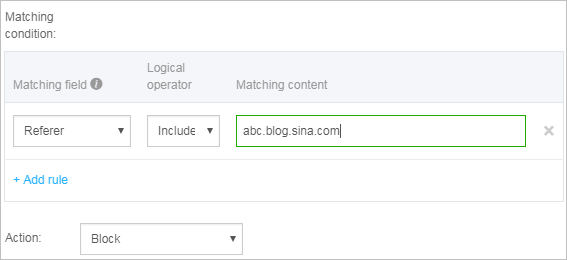

You can configure a Referer-based access condition. For example, if you find abc.blog.sina.com is using a large quantity of pictures on your site, you can use the following configuration.
