How to deploy WAF and CDN together - Web Application Firewall

Network architecture

Traffic flows through three layers:

CDN (ingress layer): accelerates content delivery to end users
WAF (intermediate layer): inspects traffic and blocks attacks
Origin servers: receive only clean, filtered traffic

Origin servers can run on Elastic Compute Service (ECS) instances, Server Load Balancer (SLB) instances, in virtual private clouds (VPCs), or in on-premises data centers.

Prerequisites

Before you begin, make sure you have:

Alibaba Cloud CDN enabled with a domain name already added. See Getting started with Alibaba Cloud CDN
A WAF instance purchased

Choose an access mode

WAF supports two ways to integrate with CDN. Pick the one that matches your infrastructure before starting the configuration steps.

	CNAME record mode	Transparent proxy mode
How it works	CDN sends traffic to WAF's CNAME address; WAF forwards clean traffic to your origin	CDN sends traffic directly to your origin IP; WAF intercepts traffic transparently via SLB or ECS
What you configure in CDN	Set the CDN origin to WAF's CNAME	Set the CDN origin to your origin server's IP
Best for	Most deployments; simpler DNS-based routing	Environments where you want WAF to operate without changing DNS origin settings

Step 1: Add a domain name to WAF

Log in to the WAF console. In the top navigation bar, select the resource group and the region where your WAF instance is deployed (Chinese Mainland or Outside Chinese Mainland).
In the left-side navigation pane, choose Asset Center > Website Access.
On the Domain Names tab, click Website Access.

Add the domain name using your chosen access mode:

CNAME record mode

Note

On the Add Domain Name page, Access Mode defaults to CNAME Record. No change is needed.

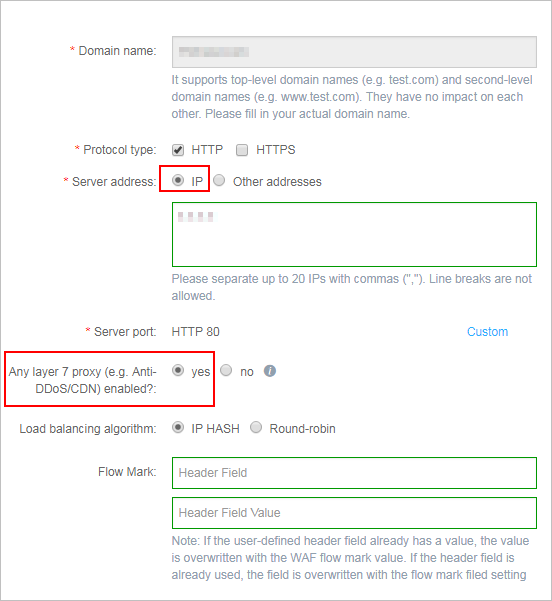

In the Enter Your Website Information step, configure the following parameters and click Next.

Parameter	Description
Domain Name	The domain name of the website to protect
Protection Resource	The type of protection resource to use
Protocol Type	The protocol your website supports
Origin Server Address	IP: the public IP address of the SLB or ECS instance, or your non-Alibaba Cloud origin server IP
Destination Server Port	The port your origin server uses, based on the Protocol Type
Load Balancing Algorithm	If you have multiple origin server addresses, select the algorithm based on your requirements
Whether Layer 7 Proxy, Such as Anti-DDoS Pro, Anti-DDoS Premium, or Alibaba Cloud CDN, Is Deployed in Front of WAF	Set to Yes.
Enable Traffic Mark	Specify whether to enable WAF's traffic marking feature
Resource Group	Select the resource group for this domain name

On the Domain Names tab, find the domain you added and copy the CNAME that WAF assigned to it.

Transparent proxy mode

On the Add Domain Name page, set Access Mode to Transparent Proxy Mode.
In the Add Domain Name step, configure the following parameters and click Next.

Parameter	Description
Domain Name	The domain name of the website to protect
SLB-based Domains, Layer 7 SLB-based Domains, Layer 4 SLB-based Domains, and ECS-based Domains	Select the instance type and corresponding ports
Whether Layer 7 Proxy, Such as Anti-DDoS Pro, Anti-DDoS Premium, or Alibaba Cloud CDN, Is Deployed in Front of WAF	Set to Yes.
Enable Traffic Mark	Specify whether to enable WAF's traffic marking feature
Resource Group	Select the resource group for this domain name

In the Check and Confirm Added Information step, review the information and click Next.
Click Completed. Return to the website list. On the Servers tab, select Resource Instance ID from the drop-down list and enter an instance ID to find the IP address and port of the instance you added.

Step 2: Point CDN to WAF

Log in to the Alibaba Cloud CDN console.
In the left-side navigation pane, click Domain Names.
Find the domain name and click Manage in the Actions column.

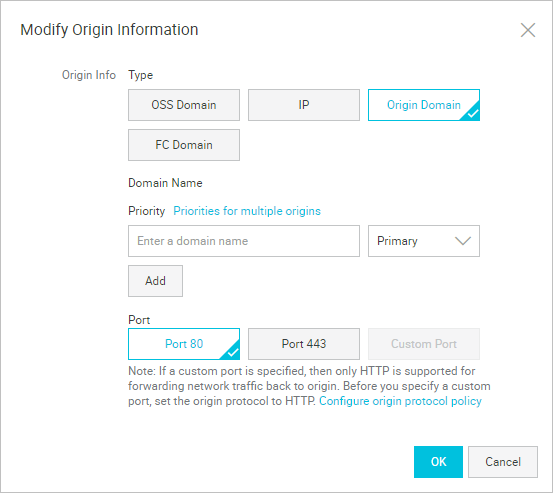

In the left-side navigation pane, click Basics. In the Origin Information section, click Add Origin Server. In the dialog box, configure the following parameters and click OK.

Parameter	Description
Origin Info	CNAME record mode: select Site Domain and enter the WAF CNAME from Step 1. Transparent proxy mode: select IP and enter the public IP address of your origin server from Step 1.
Priority	A primary origin server has higher priority than a secondary one
Weight	When multiple origin servers share the same priority, CDN distributes requests by weight
Port	The port on the origin server that handles requests

In the left-side navigation pane, click Back-to-origin. On the Configurations tab, confirm that Default Origin Host is disabled.
Update your DNS record to map the domain name to the CNAME assigned by Alibaba Cloud CDN. See Add a CNAME record for a domain name.

After these steps, CDN accelerates static content delivery, and WAF continues to inspect and protect dynamic traffic.

Note

To forward traffic sent to Domain Name B to Domain Name A (which is added to WAF), add a URL forwarding record in the Alibaba Cloud DNS console. See the "Add an explicit or implicit URL forwarding record" section in Add a DNS record.

Verify the configuration

Run the following checks to confirm the setup is working:

Connectivity: Open the domain name in a browser. If the website loads, traffic is routing through CDN and WAF correctly.
Attack blocking: Append a test XSS payload to the URL — for example, <your-domain>/alert(xss) and alert(xss). If a 405 error page appears, WAF is blocking the attack.

More operations

If you want to provide WAF protection for a domain that is accelerated by Dynamic Route for CDN, you can enable and configure Edge WAF in the DCDN console. After the configuration is complete, WAF protection is applied to the DCDN nodes. For more information, see Quick start for Edge WAF.

To protect a domain name that uses Dynamic Route for CDN (DCDN), enable WAF in the DCDN console. See Getting started with WAF (new).
