Server Load Balancer checks the service availability of the backend servers (ECS instances) by performing health checks. The health check function improves the overall availability of your services and avoids the impact of backend server failures.
After enabling the health check function, SLB stops distributing requests to the instance that is discovered as unhealthy and restarts forwarding requests to the instance only when it is declared healthy.
If your business is highly sensitive to traffic load, frequent health checks may impact normal service. You can reduce this impact by reducing the frequency of health checks, increasing the health check interval, or changing the HTTP health check to TCP health check. To guarantee the service availability, we do not recommend removing all health checks.
Health check process
Server Load Balancer is deployed in clusters. Data forwarding and health checks are handled at the same time by the node servers in the LVS cluster and Tengine cluster.

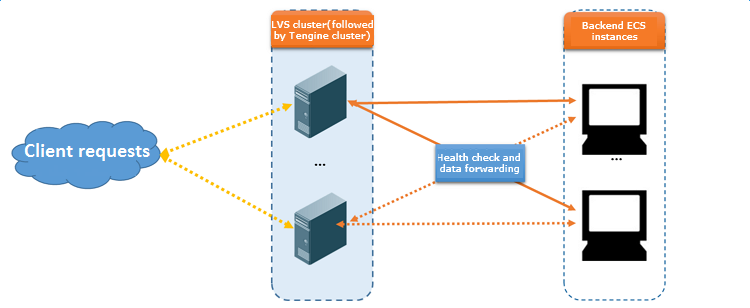

The node servers in the cluster independently perform health checks in parallel, according to the health check configuration. If a node server discovers an ECS instance is unhealthy, the node server will stop distributing requests to the ECS instance. This operation is synchronized through all node servers as shown in the following figure. The IP address range used to perform the health check is 100.64.0.0/10. If the backend ECS instances enable IP table forwarding or other access controls, authorize access for this CIRD block.
Health check of HTTP/HTTPS listeners

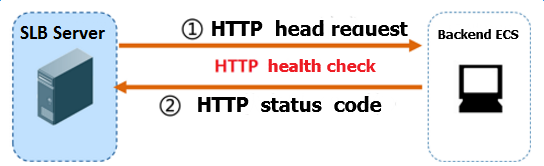

For Layer-7 (HTTP or HTTPS) listeners, SLB detects the status of backend servers by sending HTTP HEAD requests, as shown in the following figure.
For HTTPS listeners, certificates are managed in SLB. Data exchange (including health check data and service interaction data) between SLB and backend ECS instances is not transmitted over HTTPS to improve the system performance.
The health check process of a Layer-7 listener is as follows:
- The Tengine node server sends an HTTP HEAD request to the backend servers at [ECS internal IP:health check port:health check URL] according to the health check settings.
- After receiving the request, the backend server returns an HTTP status code based on the running status.
- If the Tengine node server does not receive the response from the backend server within the configured response timeout period, then the ECS instance is declared unhealthy.
- If the Tengine node server receives the response from the backend ECS instance within the configured response timeout period, then it compares the returned status code with the status code specified in the listener configuration. If the status code is the same, the backend server is declared healthy. Otherwise, the backend server is declared unhealthy.
Health check of TCP listeners
For TCP listeners, SLB detects the status of backend servers by sending TCP detections, as the following figure shows.
The health check process of a TCP listener is as follows:
- The LVS node server sends a TCP SYN packet to the intranet IP address of the backend ECS instance with the configured health check port.
- After receiving the request, the backend server returns a TCP SYN and ACK packet if the corresponding port is listening normally.
- If the LVS node server does not receive the required data packet from the backend server within the configured response timeout period, the ECS instance is declared unhealthy. Then, the LVS node server sends an RST data packet to the backend server to terminate the TCP connection.
- If the LVS node server receives the data packet from the backend ECS instance within the configured response timeout period, the ECS instance is declared healthy. Then, the LVS node server sends an RST data packet to the backend server to terminate the TCP connection.
| In general, TCP three-way handshakes are conducted to establish a TCP connection. After the LVS node server receives an SYN + ACK data packet from the backend ECS instance, the LVS node server sends an ACK data packet, and then immediately sends an RST data packet to terminate the TCP connection.
This process may cause backend server to think an error occurred in the TCP connection, such as an abnormal exit, and then throw a corresponding error message, such as
Health check of UDP listeners
For UDP listeners, Server Load Balancer detects the status of the backend servers through UDP packet detection, as shown in the following figure.
The health check process of a UDP listener is as follows:
- The LVS node server sends a UDP packet to the intranet IP address of the backend ECS instance with the configured health check port.
- If the corresponding port of the ECS instance is not listening normally, the system will return an ICMP error message, such as
port XX unreachable. Otherwise, no message is sent.
- If the LVS node server receives the ICMP error message within the configured response timeout period, the ECS instance is declared unhealthy.
- If the LVS node server does not receive any messages within the configured response timeout period, the ECS instance is declared healthy.
| For UDP health checks, the real status of the backend server and the health check result may not be the same in the following situation:
If the ECS instance uses a Linux operating system, the speed of sending ICMP messages in high-concurrency scenarios is limited due to the anti-ICMP attack protection in Linux. In this case, even if an exception occurs in the ECS instance, SLB may declare the backend server healthy because the error message
Set a pair of custom request and response for the UDP health check. If the custom response is returned, the ECS instance is considered healthy. Otherwise, the ECS instance is considered unhealthy. To achieve this, you must add corresponding configurations for the client.
Health check time window
The health check function has effectively improved the availability of your business services. However, to reduce impact on the system availability caused by frequent system switches because of health check failure, SLB declares an ECS instance healthy or unhealthy only after successive successes or failures within a specified timeframe. The health check time window is determined by the following three factors:
- Health check interval (How often the health check is performed.)
- Response timeout (The amount of time to wait for the response.)
- Health check threshold (The number of consecutive successful or failed health checks.)
The health status check window is calculated as follows:
- Health check failure time window = Response Timeout x Unhealthy Threshold + Health Check Interval X (Unhealthy Threshold) -1)
- Health check success time window = (Response Time of a Successful Health Check X Health Threshold) + Health Check Interval X (Health Threshold-1)
Note The success response time of a health check is the time from when the health check request is sent to the time when a response is received. When using TCP for health check, due to the detection of only the port for survival, therefore, the time is very short and can be ignored almost. For TCP health check, the time is very short and almost negligible because TCP health check only the detects whether the port is alive.
The health check result has the following impact on the requests forwarding:
- If the health check of the target ECS instance fails, the request will not be distributed to the ECS instance. Therefore, there is no impact on the client access.
- If the health check of the target ECS instance succeeds, the request will be distributed to it. The client access is normal.
- If a request arrives during an unhealthy status check window, the request is still sent to the ECS instance because the ECS instance is being checked and has not been declared unhealthy. As a result, the client access fails.
