This topic provides the sample code about how to send and subscribe to transactional messages by using Message Queue for Apache RocketMQ SDK for Java for TCP clients.

Message Queue for Apache RocketMQ provides a distributed transaction processing feature similar to X/Open XA to ensure transaction consistency in Message Queue for Apache RocketMQ.

Note If you are new to Message Queue for Apache RocketMQ, we recommend that you read Demo project to learn how to build a Message Queue for Apache RocketMQ project before you send and subscribe to messages.

Interaction process

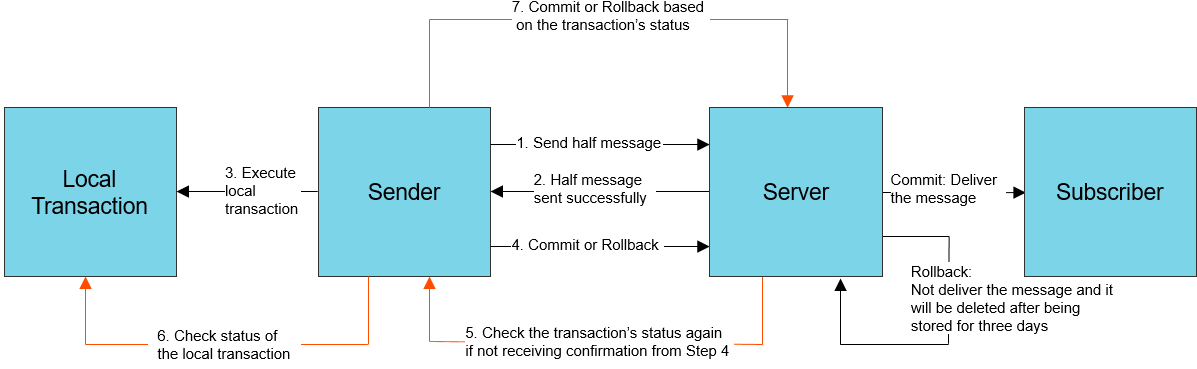

The following figure shows the interaction process of transactional messages.

process

For more information, see Transactional messages.

Prerequisites

Before you begin, make sure that the following operations are complete:

Send transactional messages

Note For more information about the sample code, see Message Queue for Apache RocketMQ code library.
Perform the following steps to send a transactional message:
  1. Send a half message and execute a local transaction. The following code shows an example:

    package com.alibaba.webx.TryHsf.app1;

    import com.aliyun.openservices.ons.api.Message;
    import com.aliyun.openservices.ons.api.PropertyKeyConst;
    import com.aliyun.openservices.ons.api.SendResult;
    import com.aliyun.openservices.ons.api.transaction.LocalTransactionExecuter;
    import com.aliyun.openservices.ons.api.transaction.TransactionProducer;
    import com.aliyun.openservices.ons.api.transaction.TransactionStatus;
    import java.util.Properties;
    import java.util.concurrent.TimeUnit;

    public class TransactionProducerClient {
     private final static Logger log = ClientLogger.getLog(); // Configures your own logger to facilitate troubleshooting.

     public static void main(String[] args) throws InterruptedException {
         final BusinessService businessService = new BusinessService(); // Your business.
         Properties properties = new Properties();
            // The group ID that you created in the Message Queue for Apache RocketMQ console. Note: Transactional messages cannot share group IDs with other types of messages.
         properties.put(PropertyKeyConst.GROUP_ID,"XXX");
            // The AccessKey ID that you created in the Alibaba Cloud Resource Access Management (RAM) console for authentication.
         properties.put(PropertyKeyConst.AccessKey,"XXX");
            // The AccessKey secret that you created in the Alibaba Cloud Resource Access Management (RAM) console for authentication.
         properties.put(PropertyKeyConst.SecretKey,"XXX");
            // The TCP endpoint. You can view the endpoint in the TCP Endpoint section on the Endpoints tab of the Instance Details page in the Message Queue for Apache RocketMQ console.
         properties.put(PropertyKeyConst.NAMESRV_ADDR,"XXX");

         TransactionProducer producer = ONSFactory.createTransactionProducer(properties,
                 new LocalTransactionCheckerImpl());
         producer.start();
         Message msg = new Message("Topic","TagA","Hello MQ transaction===".getBytes());
         try {
                 SendResult sendResult = producer.send(msg, new LocalTransactionExecuter() {
                     @Override
                     public TransactionStatus execute(Message msg, Object arg) {
                         // The message ID. Two messages may have the same message body but different message IDs. The current message is a half message. Therefore, its message ID cannot be viewed in the Message Queue for Apache RocketMQ console.
                         String msgId = msg.getMsgID();
                         // Calculate the message body by using CRC32 or other algorithms, such as MD5.
                         long crc32Id = HashUtil.crc32Code(msg.getBody());
                         // The message ID and CRC32 ID are used to prevent duplicated messages.
                         // You do not need to specify the message ID or CRC32 ID if your business itself achieves idempotence. Otherwise, set the message ID or CRC32 ID to ensure idempotence.
                         // To prevent duplicated messages, we recommend that you calculate the message body by using the CRC32 or MD5 algorithm.
                         Object businessServiceArgs = new Object();
                         TransactionStatus transactionStatus = TransactionStatus.Unknow;
                         try {
                             boolean isCommit =
                                 businessService.execbusinessService(businessServiceArgs);
                             if (isCommit) {
                                 // Commit the message if the local transaction succeeds.
                                 transactionStatus = TransactionStatus.CommitTransaction;
                             } else {
                                 // Roll back the message if the local transaction fails.
                                 transactionStatus = TransactionStatus.RollbackTransaction;
                             }
                         } catch (Exception e) {
                             log.error("Message Id:{}", msgId, e);
                         }
                         System.out.println(msg.getMsgID());
                         log.warn("Message Id:{}transactionStatus:{}", msgId, transactionStatus.name());
                         return transactionStatus;
                     }
                 }, null);
             }
             catch (Exception e) {
                    // Specify the logic to resend or persist the message if the message fails to be sent.
                 System.out.println(new Date() + " Send mq message failed.
     Topic is:"
     + msg.getTopic());
    e.printStackTrace();
    }
    // Use the demo example to prevent the process from exiting, which is not required in actual use.
    TimeUnit.MILLISECONDS.sleep(Integer.MAX_VALUE);
     }
    }
  2. Commit the status of the transactional message.

    After the local transaction is executed, the Message Queue for Apache RocketMQ broker must be notified of the transaction status of the current message. No matter whether the execution is successful or fails, the broker must be notified. The broker can be notified in one of the following ways:

    • Commit the status after the local transaction is executed.
    • Wait until the broker requests to check the transaction status of the message.

    A transaction can be in one of the following states:

    • TransactionStatus.CommitTransaction: The transaction is committed, and the consumer can consume the message.
    • TransactionStatus.RollbackTransaction: The transaction is rolled back, and the message is discarded and cannot be consumed.
    • TransactionStatus.Unknow: The transaction is in an unknown state, and the Message Queue for Apache RocketMQ broker is expected to query the status of the local transaction that corresponds to the message from the message sender.
    public class LocalTransactionCheckerImpl implements LocalTransactionChecker {

       private final static Logger log = ClientLogger.getLog();
       final  BusinessService businessService = new BusinessService();

       @Override
       public TransactionStatus check(Message msg) {
           // The message ID. Two messages may have the same message body but different message IDs. The current message is a half message. Therefore, its message ID cannot be viewed in the Message Queue for Apache RocketMQ console.
           String msgId = msg.getMsgID();
           // Calculate the message body by using CRC32 or other algorithms, such as MD5.
           long crc32Id = HashUtil.crc32Code(msg.getBody());
           // The message ID and CRC32 ID are used to prevent duplicated messages.
           // You do not need to specify the message ID or CRC32 ID if your business itself achieves idempotence. Otherwise, set the message ID or CRC32 ID to ensure idempotence.
           // To prevent duplicated messages, we recommend that you calculate the message body by using the CRC32 or MD5 algorithm.
           // The parameter object of your business. This is an example. Set the object based on the actual situation of your business.
           Object businessServiceArgs = new Object();
           TransactionStatus transactionStatus = TransactionStatus.Unknow;
           try {
               boolean isCommit = businessService.checkbusinessService(businessServiceArgs);
               if (isCommit) {
                   // Commit the message if the local transaction succeeds.
                   transactionStatus = TransactionStatus.CommitTransaction;
               } else {
                   // Roll back the message if the local transaction fails.
                   transactionStatus = TransactionStatus.RollbackTransaction;
               }
           } catch (Exception e) {
               log.error("Message Id:{}", msgId, e);
           }
           log.warn("Message Id:{}transactionStatus:{}", msgId, transactionStatus.name());
           return transactionStatus;
       }
     }

    Utility class

    import java.util.zip.CRC32;
    public class HashUtil {
        public static long crc32Code(byte[] bytes) {
            CRC32 crc32 = new CRC32();
            crc32.update(bytes);
            return crc32.getValue();
        }
    }

Mechanism of transaction status check

  • Why must the mechanism of transaction status check be implemented when transactional messages are sent?

    If the half message is sent in Step 1 but TransactionStatus.Unknow is returned for the local transaction, or no status is committed for the local transaction because the application exits, the status of the half message is unknown to the Message Queue for Apache RocketMQ broker. Therefore, the broker periodically requests the sender to check and report the status of the half message.

  • What does the business logic do when the check method is called back?

    The check method for transactional messages must contain the logic of transaction consistency check. After a transactional message is sent, Message Queue for Apache RocketMQ must call LocalTransactionChecker to respond to the request of the broker for the local transaction status. Therefore, the check method for transactional messages must contain the following check items:

    1. Check the status (committed or rollback) of the local transaction that corresponds to the half message.
    2. Commit the status of the local transaction that corresponds to the half message to the broker.

Subscribe to transactional messages

The mode for subscribing to transactional messages is the same as that for subscribing to normal messages. For more information, see Subscribe to messages.
