This topic describes how to change the configurations of one or more mongos nodes in an ApsaraDB MongoDB sharded cluster instance.

Pricing

For more information, see Configuration change fees.

Precautions

  • During a configuration change, you may experience a momentary service interruption or two lasting about 30 seconds each. To prevent a configuration change from interrupting your workloads, we recommend that you perform the configuration change at a time that has minimal impact on your business.
  • The time required to perform a configuration change depends on factors such as the network conditions, task queue status, and data volume. We recommend that you change the configurations of a sharded cluster instance during off-peak hours and make sure that your application is configured to automatically reconnect to the instance.
  • If the minor version of a sharded cluster instance expires or is not included in the maintenance list, ApsaraDB for MongoDB automatically updates the minor version of the instance to the latest version during a specification change. This ensures that the sharded cluster instance can provide higher performance and higher stability.

Procedure

  1. Log on to the ApsaraDB for MongoDB console.
  2. In the upper-left corner of the page, select the resource group and the region of the target instance.
  3. In the left-side navigation pane, click Sharded Cluster Instances.
  4. Find the target instance and click its ID.
  5. On the Basic Information page, select one or more mongos nodes.
    • Change the configurations of a mongos node

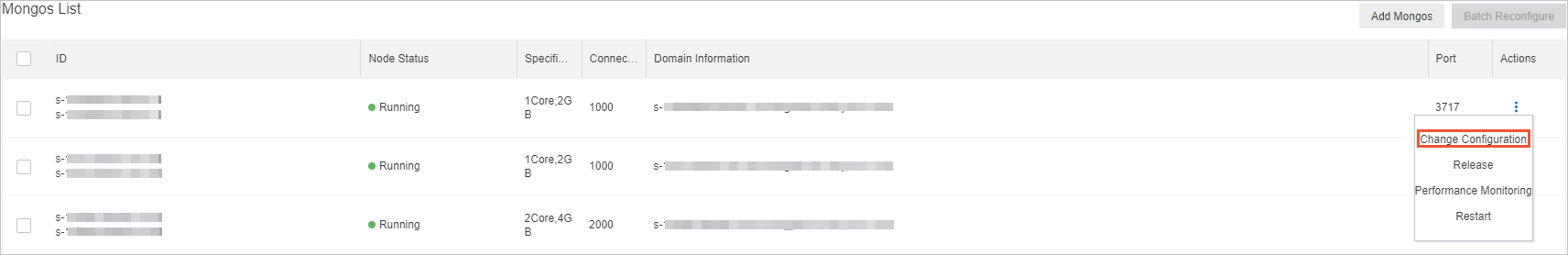

      In the Mongos List section of the page, find the mongos node. Click the More icon icon in the Actions column, and then select Change Configuration. Change the configurations of a mongos node
    • Change the configurations of multiple mongos nodes
      1. In the Mongos List section of the page, select multiple mongos nodes.
      2. Click Batch Reconfigure in the upper-right corner of the Mongos List section. Change the configurations of multiple mongos nodes
  6. In the Change Specification pane, configure the following parameters.
    Parameter Description
    Instance Specifications Select the specifications for all mongos nodes.
    Note For more information about the supported specifications of mongos nodes, see Instance types.
    Migration Time The time when you want to apply the configuration change.
    • Switch Immediately after Migration: ApsaraDB for MongoDB applies the configuration change immediately after you complete the payment.
    • Switch within Maintenance Window: ApsaraDB for MongoDB applies the configuration change within the maintenance window that you specify. You can view the maintenance window. You can also change the maintenance window by using one of the following methods:
      • Click Edit next to Switch within Maintenance Window.
      • Go to the Basic Information page. In the Specification Information section, click Edit next to Maintenance Period. For more information, see Specify a maintenance period.
  7. Purchase the node.
    Perform the following operations based on the billing method of the sharded cluster instance:
    • Pay-as-you-go: Click Pay Now. Then the system automatically collects the amount.
    • Subscription: Click Pay Now. On the Purchase page, complete the payment process.
    When the configuration change is being applied, the sharded cluster instance is in the Changing Configuration state. When the status of the instance changes to Running, the configuration change is applied.

Related API operations

Operation Description
ModifyNodeSpec Changes the configurations of a mongos or shard node in an ApsaraDB for MongoDB sharded cluster instance.
ModifyNodeSpecBatch Changes the configurations of multiple mongos or shard nodes in an ApsaraDB for MongoDB sharded cluster instance.
