This document describes how to use RAM roles to perform cross-account resource access and authorization in specific scenarios.

Scenario description

Account A and account B represent different enterprises (teams or projects). Assume that enterprise A has bought a lot of cloud resources, such as ECS instances, RDS instances, SLB instances, and OSS buckets for its business requirements.

  • Enterprise A wants to focus on its business systems, so it grants cloud resource O&M, monitoring management, and other tasks to the enterprise B.
  • Enterprise B can then further delegate O&M tasks to its employees. Enterprise B needs to precisely control the delegate operations that its employees can perform on the cloud resources of the enterprise A.
  • If A and B terminate this O&M entrustment contract, enterprise A is able to revoke the permissions of the enterprise B as needed.

Requirement analysis

The analysis of the preceding scenarios is as follows:

  • Authorization between two Alibaba Cloud accounts, A and B. Account A is the resource owner and wants to grant B permissions to perform operations on its resources.
  • Account B needs to further allocate permissions to its sub-users (employees or applications). If an employee of B joins or leaves the company, A does not have to make any changes to the permissions.
  • If A and B terminate their cooperation, A is able to revoke B’s permissions as needed.

Solution

For the requirements above, use the RAM role for cross-account authorization and resource access.

  • Account A creates a role in RAM and assigns appropriate permissions to the role, and allows account B to use this role. For the operation procedure, see the section "Cross-account authorization".
  • If an employee (RAM user) under account B needs to use this role, account B can perform authorization control independently. Under the O&M entrustment contract, the RAM user under account B can use the granted role identity to manipulate the resources of account A. For the operation procedure, see the section "Cross-account resource access".
  • If A and B terminate this O&M entrustment contract, account A only needs to revoke the enterprise B's use of this role. Once account B's use of this role is revoked, all RAM users under account B cannot use this role. For the operation procedure, see the section "Revocation of cross-account authorization".

Cross-account authorization

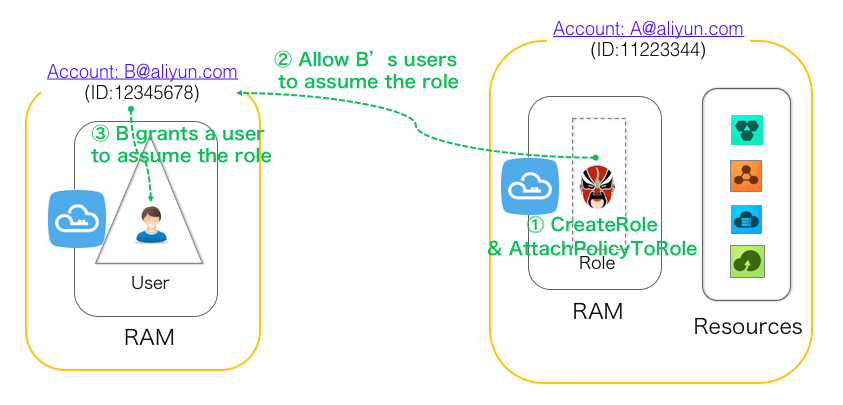

The following figure shows how to use the RAM role for cross-account authorization. Assume that enterprise A (AccountID=11223344, alias: company-a) needs to grant ECS operation permissions to the employees of enterprise B (AccountID=12345678, alias: company-b).



The operation procedure is as follows:
  1. Account A creates a user role (assuming the role is named ecs-admin) and selects Other Alibaba Cloud Account (account B: 12345678). As a trusted account, the RAM users under account B are allowed to assume this role. For the detailed operation, see Role.

    After creating the role, enterprise A can get the role information on the details page.

    • In this example, the role’s global name ARN is:
      acs:ram::11223344:role/ecs-admin
    • The role’s policy (only enterprise B can assume this role)  is as follows:

      "Statement": [

       "Action": "sts:AssumeRole",
       "Effect": "Allow",
       "Principal": {
         "RAM": [
           "acs:ram::12345678:root"

       }


      "Version": "1"

  2. Account A adds the authorization policy (AliyunECSFullAccess) to the role ecs-admin.
  3. Account B creates a RAM user for its employee (assuming the user name is Alice) and

Cross-account resource access

The RAM user Alice under account B accesses account A's ECS resources through the console. The operation procedure is as follows:

  1. The RAM user (Alice) under account B logs on to the console.

    When a sub-user logs on, the sub-user must enter enterprise alias (company-b), sub-user username (Alice), and sub-user password (123456) correctly.

  2. The RAM user (Alice) under account B switches the role.

    In the upper right corner of the console, move the mouse pointer to the logon user name and click Switch Role to go to the identity switching page. Enter enterprise alias (company-a) and role name (ecs-admin) correctly to switch the role.

  3. The RAM user (Alice) under account B manipulates the ECS resources under account A.

Revocation of cross-account authorization

Account A revokes account B's use of the role ecs-admin. The operation procedure is as follows:

  1. Account A logs on to the RAM console, finds the role ecs-admin on the Role Management page, and clicks the name of its role or the Manage button to go to the Role Details page.
  2. Click Edit Basic Information in the upper right corner. In the displayed dialog box, remove acs:ram::12345678:root from Policy Content. (That is, account B will be removed from the trusted cloud accounts of the role.)
    Note Alternatively, account A can Delete the role ecs-admin from the Role Management page. Before the deletion, ensure that the role does not have any authorization policies.
