Table 1. A complete cluster lifecycle includes the following statuses.
Status Description
Inactive The successfully created cluster does not contain any node.
Initial The cluster is applying for corresponding cloud resources.
Running The cluster successfully applied for the cloud resources.
Updating The cluster is upgrading the Agent.
Scaling Change the number of cluster nodes.
Failed The cluster application for cloud resources failed.
Deleting The cluster is being deleted.
DeleteFailed The cluster failed to be deleted.
Deleted (invisible to users) The cluster is successfully deleted.

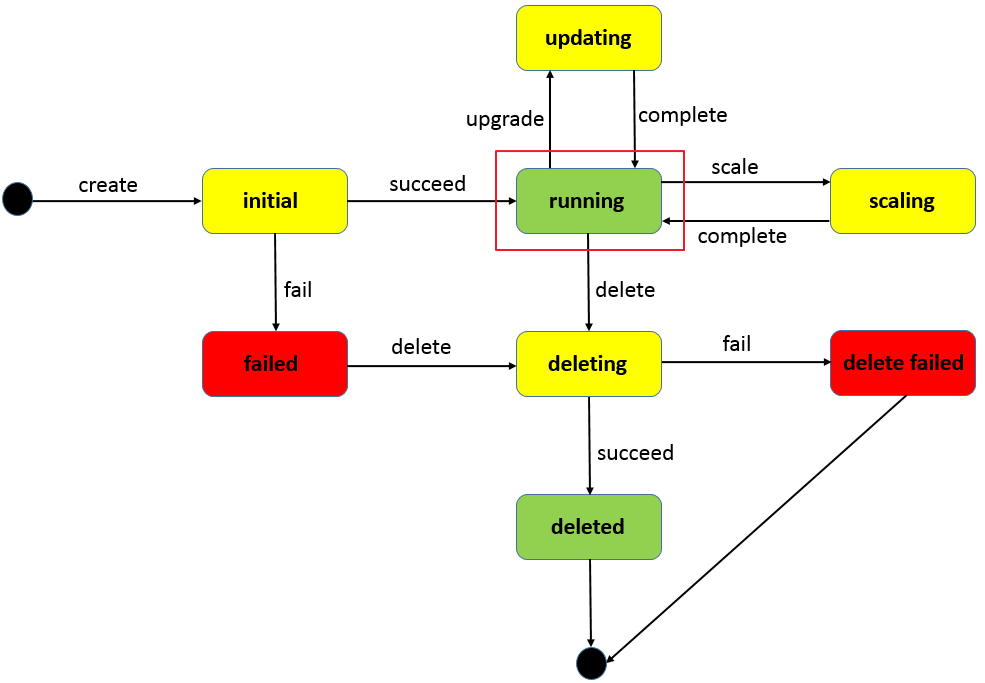

Figure 1. Cluster status flow
