This topic describes how to view a monitoring task. You can view the basic information, triggered rule, and monitoring information of a monitoring task. In this way, you can check the configuration of the monitoring task and the data change trend of the specified metric.

Background information

The details about a monitoring task include:
  • Basic information: the name, alert status, reference period, monitored scaling group, monitoring type, trigger condition, and description of the monitoring task, and whether the task is enabled.
  • Triggered rule: the scaling rule to be executed when an alert is triggered.
  • Monitoring information: the data change trend of the specified metric.

Procedure

  1. Log on to the Auto Scaling console.
  2. In the left-side navigation pane, choose Scaling Tasks > Event-Triggered tasks.
  3. In the top navigation bar, select a region.
  4. Select the monitoring type.
    • To select a system monitoring task, click the System Monitoring tab.
    • To select a custom monitoring task, click the Custom Monitoring tab.

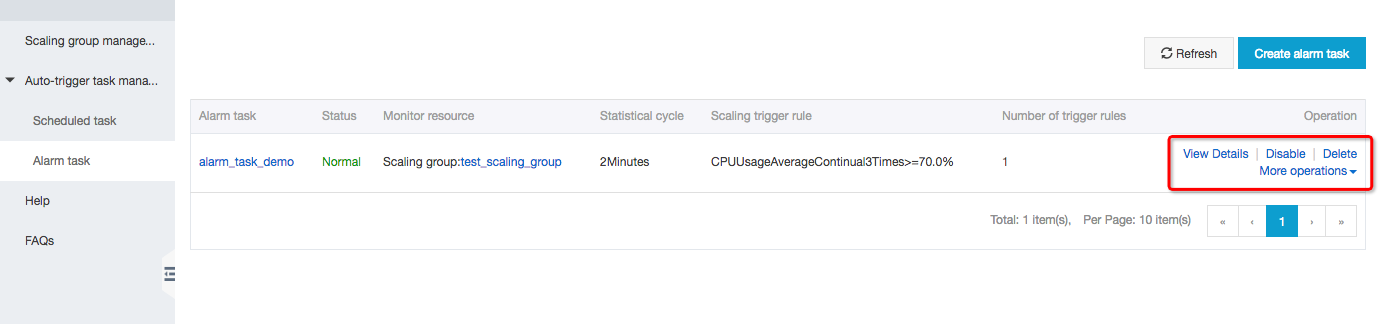

  5. Use one of the following methods to open the details page of a monitoring task.
    • Find the target monitoring task and click View Details in the Actions column.
    • Find the target monitoring task and click the name of the monitoring task in the Event-Triggered Task column.
  6. View the details about the monitoring task.
