You can resize a system disk or a data disk to extend its capacity. This topic describes how to resize a disk for a Windows instance without stopping the instance.

Prerequisites

The disk to be resized online and the instance to which the disk is attached meet the following requirements.
Resource Requirement
Instance
  • The instance is I/O optimized.
  • The instance does not run Windows Server 2003.
  • Disks on instances of the ecs.ebmc4.8xlarge, ecs.ebmhfg5.2xlarge, and ecs.ebmg5.24xlarge instance types cannot be resized online.
  • The instance is in the Running (Running) state.
  • The version of the Red Hat virtio SCSI driver is later than 58011. For information about how to check the version of a Red Hat virtio SCSI driver and upgrade the driver, see Update the Red Hat VirtIO driver of Windows ECS instances.
Note If your ECS instance does not meet the requirements to resize disks online, you can resize its disks offline. For more information, see Resize disks offline (Windows).
Disk
  • The disk is in the In Use (In Use) state.
  • The disk is an enhanced SSD (ESSD), a standard SSD, or an ultra disk.
  • The disk is formatted as New Technology File System (NTFS).
  • After you renew a subscription instance and downgrade its configurations, you cannot resize the subscription disks attached to the instance for the remainder of the current billing cycle.
  • When you resize a disk of a specific category, the specified new disk capacity cannot exceed the maximum single-disk capacity allowed for the disk category. For more information, see the "Elastic Block Storage limits" section in Limits.
Notice
If an existing partition of a disk is in the master boot record (MBR) format, the disk cannot be resized to 2 TiB or greater in size. If you want to resize a disk that has an MBR partition to more than 2 TiB, use one of the following methods:

Background information

The following table lists configurations of the instance and disks that are used in the examples of this topic.
Resource Description
Image used by the instance Windows Server 2012 R2 64-bit
System disk Is formatted as NTFS and resized from 40 GiB to 60 GiB.
Data disk Is formatted as NTFS and resized from 40 GiB to 60 GiB.

Step 1: Create a snapshot

Create a snapshot for the disk to back up the data on the disk before you resize the disk.

  1. Log on to the ECS console.
  2. In the left-side navigation pane, choose Instances & Images > Instances.
  3. In the top navigation bar, select a region.
  4. Find the instance whose disk you want to resize, and click the instance ID to go to the Instance Details page.
  5. In the left-side navigation pane, click Disks.
  6. Find the disk to be resized, and click Create Snapshot in the Actions column.
  7. In the dialog box that appears, enter a snapshot name, bind a tag, and then click Create.
  8. In the left-side navigation pane, click Snapshots to view the created snapshot.
    When 100% appears in the Progress column corresponding to the snapshot, the snapshot is created. You can continue to perform the following operations.

Step 2: Resize the disk in the console

  1. In the left-side navigation pane of the Instance Details page, click Disks.
  2. Find the disk to be resized and choose More > Resize Disk in the Actions column.

    To batch resize disks, log on to the ECS console by using your Alibaba Cloud account and choose Storage & Snapshots > Disks in the left-side navigation pane. On the Disks page, select the disks that you want to resize, and then click Resize Disk in the lower part of the page. Disks that are attached to the same instance cannot be batch resized.

  3. On the Resize Disks page, select Online Resizing, and set the Size after Resize parameter.
    The specified Size after Resize value cannot be less than the current capacity.
  4. Verify the price. Read and select ECS Service Terms, and then click Confirm.
  5. Read the notes, and click I have read the notes. Resize to complete the payment.
Notice After you resize the disk in the ECS console, you must resize the partitions and file systems of the disk within the instance before you can use the new capacity of the disk.

Step 3: Resize the file system of the system disk or data disk partition

After you resize a disk in the ECS console, the file systems of the disk partitions are not resized. You must connect to the instance to extend file systems. The disk is formatted as NTFS and will be resized from 40 GiB to 60 GiB. This procedure describes how to resize the file system of a system disk partition.

  1. Connect to the ECS instance. For more information, see Connect to a Windows instance by using VNC.
  2. On the Windows Server desktop, right-click the Start icon and select Disk Management.
    Disk Management

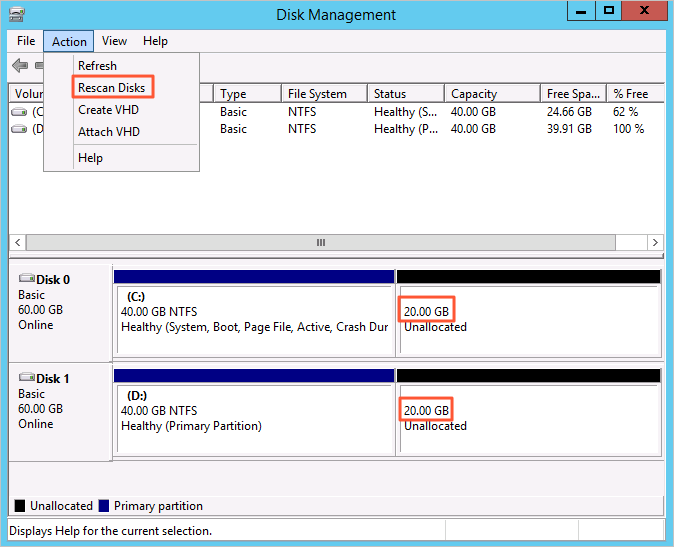

  3. In the Disk Management dialog box, choose Action > Rescan Disks to view the unallocated disk capacity.
    caozuo1

    Disk 0 is the system disk, and Disk 1 is a data disk.

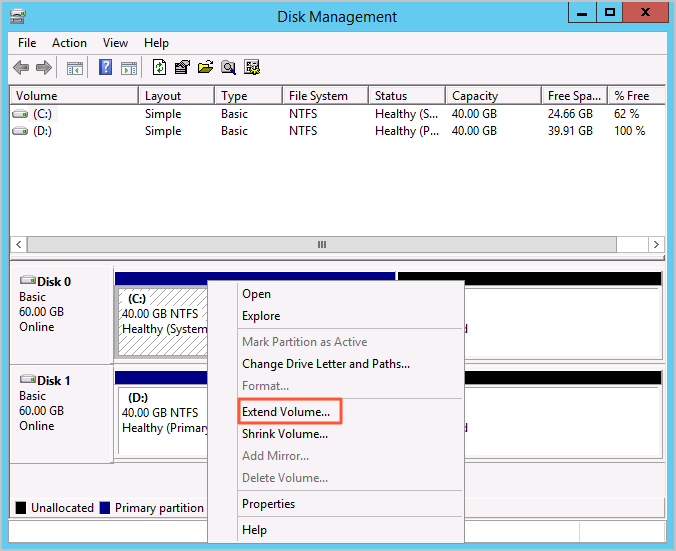

  4. Right-click the blank space in the Disk 0 section and select Extend Volume...
    Note If you are resizing the file system of a data disk partition, right-click the blank space in the data disk (for example, Disk 1) section to extend the file system.
    kuozhan
  5. Extend the volume as instructed in the Extend Volume Wizard dialog box.

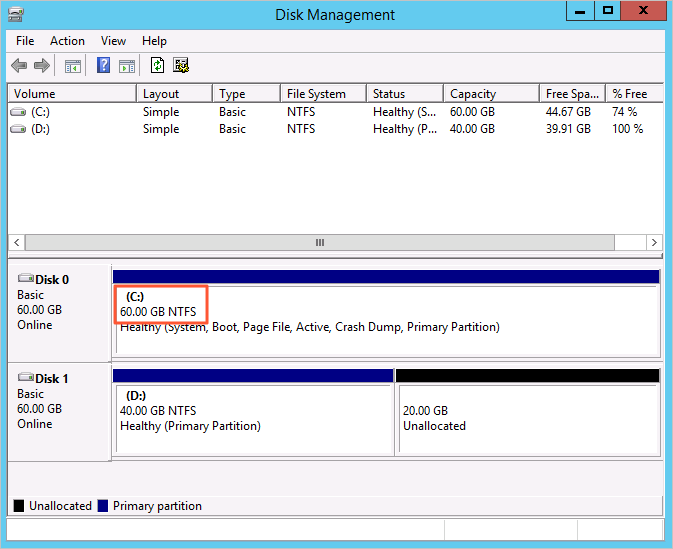

    The new space is automatically added to the original volume.The following figure shows the result.kuozhan2
    After the disk is resized, check whether the new capacity of the disk is consistent with the expected results.
    • If the resizing succeeds and the business programs in the instance can run properly, the resizing operation is complete.
    • If the resizing fails, use the backup snapshot to roll back the disk.

(Optional) Step 4: Create new partitions on the data disk

If you want to create new partitions in the new disk space, complete the following procedure.

  1. Connect to the ECS instance. For more information, see Connect to a Windows instance by using VNC.
  2. On the Windows Server desktop, right-click the Start icon and select Disk Management.
  3. In the Disk Management dialog box, choose Action > Rescan Disks to view the unallocated disk capacity.
    caozuo1

    Disk 0 is the system disk, and Disk 1 is a data disk.

  4. Right-click the blank space in the Disk 1 section and select New Simple Volume...
    jiandan1
  5. Extend the volume as instructed in the New Simple Volume Wizard dialog box.
    A new partition is created in the new disk space.
