Grafana provides a GUI that allows you to use the alerting feature. You can add a notification channel in Grafana. After you add a notification channel, Grafana sends alerts to the alerting system of Log Service. Then, the alerting system denoises the alerts and sends alert notifications.

Prerequisites

An alert ingestion application is created. For more information, see Configure webhook URLs for alert ingestion.

Configure Grafana

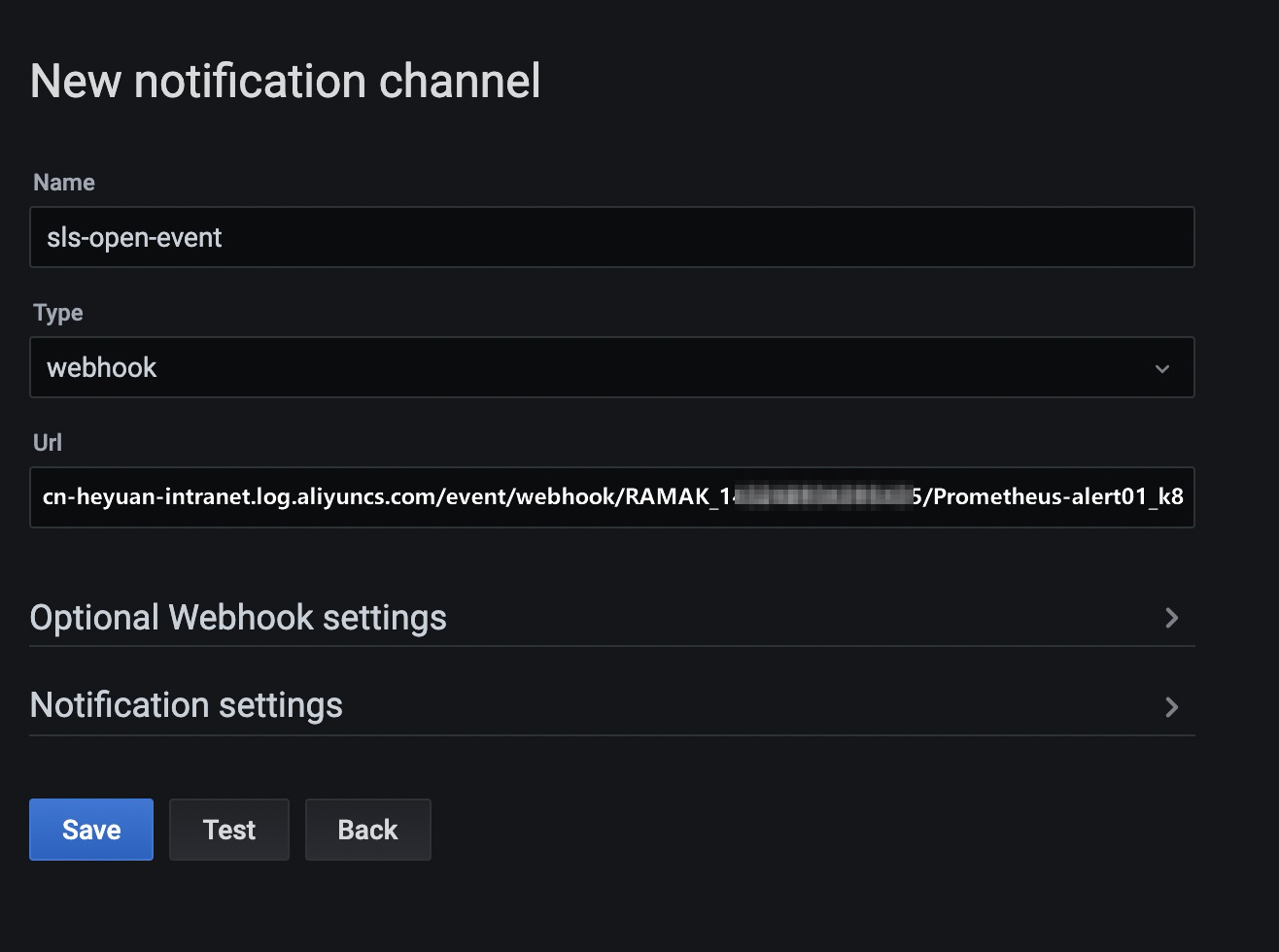

On the New notification channel page, set the required parameters. The following figure shows the parameters. Configure Grafana
Parameter Description
Name The custom name of the notification channel.
Type The type of the notification channel. Select webhook.
Url The URL of the notification channel. Set this parameter to the full URL of the webhook URL that is generated after you create an alert ingestion service and an alert ingestion application in the alert ingestion system of Log Service. For more information, see Obtain webhook URLs.
Note If your Grafana server is deployed on an Elastic Compute Service (ECS) instance, we recommend that you select the region where the ECS instance resides and use the related LAN or virtual private cloud (VPC) endpoint. You can also use the Internet webhook URL of a region.

Grafana alerts

The following code provides an example of a Grafana alert.

Note If the severity field exists in a Grafana alert, Log Service maps the severity of the alert to the corresponding severity after the alert is ingested into Log Service. If the severity field does not exist, the default severity of the Grafana alert is medium. For more information, see Severity levels.
{
    "dashboardId": 1,
    "evalMatches": [
        {
            "value": 173.14285714285714,
            "metric": "go_gc_duration_seconds_count{instance=\"localhost: 9090\", job=\"prometheus\"}",
            "tags": {
                "__name__": "go_gc_duration_seconds_count",
                "instance": "localhost:9090",
                "job": "prometheus"
            }
        }
    ],
    "message": "sadfasdf",
    "orgId": 1,
    "panelId": 4,
    "ruleId": 2,
    "ruleName": "fuxasdfasd",
    "ruleUrl": "http://localhost:3000/d/biSKHC8Mz/new-dashboard-copy?tab=alert&viewPanel=4&orgId=1",
    "state": "alerting",
    "tags": {
        "severity" : "crit",
        "xasdfasdf": "mveonasdf"
    },
    "title": "[Alerting] fuxasdfasd"
}

Field mapping

After a Grafana alert is ingested into Log Service, the alert is converted to an alert that is supported by Log Service by using field mapping. The following code provides an example of a Grafana alert:

{
    "aliuid": "{The ID of the Alibaba Cloud account to which the alert ingestion application belongs}",
    "alert_instance_id": "{The alert instance ID that is automatically generated}",
    "project": "{The project to which Alert Center belongs}",
    "region": "{The region of the endpoint to which the alert is sent}",
    "alert_id": "2",
    "alert_type": "sls_pub",
    "alert_name": "sadfasdf",
    "next_eval_interval": 0,
    "alert_time": 1603859020,
    "fire_time": 1603859020,
    "resolve_time": 0,
    "status": "firing",
    "labels": {
        "xasdfasdf": "mveonasdf"
    },
    "annotations": {
        "__pub_alert_region__": "{The region of the endpoint to which the alert is sent}",
        "__config_app__": "sls_pub_alert",
        "__pub_alert_service__": "{The ID of the alert ingestion service}",
        "__pub_alert_app__": "{The ID of the alert ingestion application}",
        "__pub_alert_protocol__": "grafana",
        "severity" : "crit",
        "orgId": "1",
        "dashboardId": "1",
        "panelId": "4",
        "ruleUrl": "http://localhost:3000/d/biSKHC8Mz/new-dashboard-copy?tab=alert&viewPanel=4&orgId=1",
        "imageUrl": "",
        "desc": "sadfasdf",
        "title": "[Alerting] fuxasdfasd"
    },
    "severity": 10,
    "policy": {
        "alert_policy_id": "{The alert policy that is specified for the alert ingestion application}",
        "action_policy_id": "{The action policy that is specified for the alert ingestion application}",
        "repeat_interval": "{The cycle that is specified for the alert ingestion application}"
    },
    "drill_down_query": "http://localhost:3000/d/biSKHC8Mz/new-dashboard-copy?tab=alert&viewPanel=4&orgId=1",
    "results": [{
        "query": "go_gc_duration_seconds_count{instance=\"localhost: 9090\", job=\"prometheus\"}",
        "fire_result": {
            "__name__": "go_gc_duration_seconds_count",
            "instance": "localhost:9090",
            "job": "prometheus",
            "value": "173.142",
        }
    }]
}

The following table describes the mappings between the alert attributes of Log Service and Grafana fields.

Alert attribute Grafana field Description
aliuid None The ID of the Alibaba Cloud account to which the alert ingestion application belongs.
alert_id ruleId The ID of the alert monitoring rule.
alert_type None The alert type. Valid value: sls_pub.
alert_name ruleName The name of the alert monitoring rule.
status state The status of the alert.
  • If the value of the state field in the Grafana alert is ok, the value of the status field in Log Service is resolved.
  • If the value of the state field in the Grafana alert is not ok, for example, alerting, the value of the status field in Log Service is firing.
next_eval_interval None The interval at which the alert is evaluated. Valid value: 0.
alert_time None The time when Log Service receives the Grafana alert.
fire_time None The time when Log Service receives the Grafana alert.
resolve_time None The time when the alert is cleared.
labels tags The labels of the alert.
  • If the severity field exists in the tags field of the Grafana alert, the severity field is added to the annotations field after the alert is ingested into Log Service.
  • If you add a label on the Enrichment tab when you create the alert ingestion application, the specified label is added to the labels field.
    Note If the key of the specified label on the Enrichment tab is the same as a subfield in the tags field of the Grafana alert, the label on the Enrichment tab prevails.
annotations None After the Grafana alert is ingested into Log Service, the following fields are added to the annotations field of the corresponding Log Service alert:
  • __config_app__: "sls_pub_alert"
  • __pub_alert_service__: {The ID of the alert ingestion service}
  • __pub_alert_app__: {The ID of the alert ingestion application}
  • __pub_alert_protocol__: "grafana"
  • __pub_alert_region__: {The region of the endpoint to which the alert is sent}
  • orgId : {The orgld field of the Grafana alert}
  • dashboardId: {The dashboardId field of the Grafana alert}
  • panelId: {The panelId field of the Grafana alert}
  • ruleUrl: {The ruleUrl field of the Grafana alert}
  • imageUrl: {The imageUrl field of the Grafana alert}
  • desc: {The message field of the Grafana alert}
  • title: {The title field of the Grafana alert}
If you add an annotation on the Enrichment tab when you create the alert ingestion application, the specified annotation is added to the annotations field.
Note If the key of the specified annotation on the Enrichment tab is the same as a subfield in the tags field of the Grafana alert, the annotation on the Enrichment tab prevails.
severity severity The alert severity. For more information, see Severity levels.
policy None The alert policy that is specified for the alert ingestion application. For more information, see Data structure of the policy variable.
project None The project to which Alert Center belongs. For more information, see Projects.
drill_down_query ruleUrl The value of the ruleURL field in the Grafana alert is displayed.
results evalMatches The data of the result set. Each object in the evalMatches array is mapped to a QueryData structure in the results field. For more information about the mappings, see Table 1. For more information about the results field, see Data structure of the results variable.
Table 1. Result set mapping
QueryData structure EvalMatch field Description
query metric A query statement.
fire_result tags and value The content of the tags field in the Grafana alert is expanded into key-value pairs and stored in the fire_result field. The value field is stored in the fire_result field.

The value of the value field is rounded to 3 decimal places.
