Manage distributed execution plans

Last Updated: Jun 18, 2021

You can use hints in distributed execution plan management to improve SQL query performance.

The distributed execution framework supports the ORDERED, LEADING, USE_NL, USE_HASH, and USE_MERGE hints.

NO_USE_PX

If you do not want to execute a query in parallel, use the NO_USE_PX hint to pull the data back and generate a local execution plan.

PARALLEL

Specifies the degree of parallelism of distributed execution. Three workers are activated to perform scanning in parallel, as shown in the following example:

obclient>SELECT /*+ PARALLEL(3) */ MAX(L_QUANTITY) FROM table_name;
Notice

In complex queries, the scheduler can schedule the parallel execution of 2 Data Flow Objects (DFOs). In this case, the number of activated workers is 2 times the degree of parallelism, which means PARALLEL * 2.

ORDERED

The ORDERED hint specifies the join order in a parallel execution plan. The order of items in the FROM clause is strictly followed.

In the following example, table customer is forced to be the table on the left of the join, while orders is the table on the right, and NESTED LOOP JOIN is used:

obclient>CREATE TABLE lineitem(
    l_orderkey           NUMBER(20) NOT NULL ,

    l_linenumber         NUMBER(20) NOT NULL ,
    l_quantity           NUMBER(20) NOT NULL ,
    l_extendedprice      DECIMAL(10,2) NOT NULL ,
    l_discount           DECIMAL(10,2) NOT NULL ,
    l_tax                DECIMAL(10,2) NOT NULL ,

    l_shipdate           DATE NOT NULL,

    PRIMARY KEY(L_ORDERKEY, L_LINENUMBER));
Query OK, 1 row affected (0.00 sec)

obclient>CREATE TABLE customer(
    c_custkey           NUMBER(20) NOT NULL ,
    c_name               VARCHAR(25) DEFAULT NULL,
    c_address            VARCHAR(40) DEFAULT NULL,
    c_nationkey         NUMBER(20) DEFAULT NULL,
    c_phone              CHAR(15) DEFAULT NULL,
    c_acctbal             DECIMAL(10,2) DEFAULT NULL,
    c_mktsegment         CHAR(10) DEFAULT NULL,
    c_comment            VARCHAR(117) DEFAULT NULL,
    PRIMARY KEY(c_custkey));
Query OK, 1 row affected (0.00 sec)

obclient>CREATE TABLE orders(
    o_orderkey           NUMBER(20) NOT NULL ,
    o_custkey             NUMBER(20) NOT NULL ,
    o_orderstatus       CHAR(1) DEFAULT NULL,
    o_totalprice          DECIMAL(10,2) DEFAULT NULL,
    o_orderdate           DATE NOT NULL,
    o_orderpriority     CHAR(15) DEFAULT NULL,
    o_clerk                 CHAR(15) DEFAULT NULL,
    o_shippriority       NUMBER(20) DEFAULT NULL,
    o_comment            VARCHAR(79) DEFAULT NULL,
    PRIMARY KEY(o_orderkey,o_orderdate,o_custkey));
Query OK, 1 row affected (0.00 sec)

obclient> INSERT INTO lineitem VALUES(1,2,3,6.00,0.20,0.01,'01-JUN-02');
Query OK, 1 row affected (0.01 sec)

obclient> INSERT INTO customer VALUES(1,'Leo',null,null,'13700461258',null,'BUILDING',null);
Query OK, 1 row affected (0.01 sec)

obclient> INSERT INTO orders VALUES(1,1,null,null,'01-JUN-20',10,null,8,null);
Query OK, 1 row affected (0.00 sec)

obclient>SELECT /*+ ORDERED USE_NL(orders) */o_orderdate, o_shippriority
        FROM customer, orders WHERE c_mktsegment = 'BUILDING' AND
         c_custkey = o_custkey GROUP BY o_orderdate, o_shippriority;

+-------------+----------------+
| O_ORDERDATE | O_SHIPPRIORITY |
+-------------+----------------+
| 01-JUN-20   |              8 |
+-------------+----------------+
1 row in set (0.01 sec)

The ORDERED hint is useful in manually writing a SQL statement. If you know the optimal order of JOIN, you can write table names in order after FROM and add the ORDERED hint.

LEADING

The LEADING hint specifies which tables are joined first in a parallel query plan. The order of tables in the LEADING hint is also the order of JOIN. It is more flexible than the ORDERED hint.

Notice

When ORDERED and LEADING hints are used at the same time, only the ORDERED hint takes effect.

PQ_DISTRIBUTE

The PQ_DISTRIBUTE hint, or PQ hint, specifies how the data is distributed in a parallel query plan. It changes the data distribution mode during a distributed JOIN.

Syntax of the PQ hint:

PQ_DISTRIBUTE(tablespec outer_distribution inner_distribution)

Where:

  • tablespec specifies the target table, which is the table on the right of the join.

  • outer_distribution specifies the data distribution mode for the table on the left.

  • inner_distribution specifies the data distribution mode for the table on the right.

Data of these two tables distributes in the following six modes:

  • Hash, Hash

  • Broadcast, None

  • None, Broadcast

  • Partition, None

  • None, Partition

  • None, None

The two modes that include the word PARTITION require partitions in the table on the left or right, and the PARTITION key serves as the JOIN key. If the requirement is not satisfied, the PQ hint is invalid.

obclient>CREATE TABLE t1(c1 INT PRIMARY KEY, c2 INT, c3 INT, c4 DATE);
Query OK, 0 rows affected (0.09 sec)

obclient>CREATE INDEX i1 ON t1(c3);
Query OK, 0 rows affected (0.09 sec)

obclient>CREATE TABLE t2(c1 INT(11) NOT NULL, c2 INT(11) NOT NULL, c3 INT(11)
       NOT NULL,
PRIMARY KEY (c1, c2, c3)) PARTITION BY KEY(c2) PARTITIONS 4;
Query OK, 0 rows affected (0.09 sec)

obclient>EXPLAIN BASIC SELECT /*+USE_PX PARALLEL(3) PQ_DISTRIBUTE
        (t2 BROADCAST NONE) LEADING(t1 t2)*/ * FROM t1 JOIN t2 ON
         t1.c2 = t2.c2\G;
*************************** 1. row ***************************
Query Plan:
================================================
|ID|OPERATOR                          |NAME    |
------------------------------------------------
|0 |EXCHANGE IN DISTR                 |        |
|1 | EXCHANGE OUT DISTR               |:EX10001|
|2 |  HASH JOIN                       |        |
|3 |   EXCHANGE IN DISTR              |        |
|4 |    EXCHANGE OUT DISTR (BROADCAST)|:EX10000|
|5 |     PX BLOCK ITERATOR            |        |
|6 |      TABLE SCAN                  |t1      |
|7 |   PX BLOCK ITERATOR              |        |
|8 |    TABLE SCAN                    |t2      |
================================================

USE_NL

The USE_NL hint specifies the use of the NESTED LOOP JOIN algorithm in a JOIN operation. The table specified in the USE_NL hint must be the table on the right of the join.

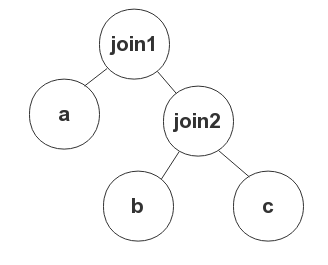

To apply NESTED LOOP JOIN for join1, write the hint like this: LEADING(a, (b,c)) USE_NL((b,c)).

When used in conjunction with the ORDERED or LEADING hint, the USE_NLJ hint is ignored if the table specified in the USE_NLJ hint is not the table on the right.

USE_NL

USE_HASH

The USE_HASH hint specifies the use of HASH JOIN for a JOIN operation. The table specified in the USE_HASH hint must be the table on the right of the join.

Notice

If neither the ORDERED hint nor the LEADING hint is used and tables specified in the JOIN order generated by the optimizer are not to be directly joined, the USE_HASH hint is ignored.

USE_MERGE

The USE_MERGE hint specifies the use of MERGE JOIN for a JOIN operation. The table specified in the USE_MERGE hint must be the table on the right of the join.

Notice

If neither the ORDERED hint nor the LEADING hint is used and tables specified in the JOIN order generated by the optimizer are not to be directly joined, the USE_MERGE hint is ignored.
