On the Tenant Statistics page, you can view the monitoring data and associated nodes of the tenant.
View the monitoring data of a tenant
You can filter the monitoring data by time range in the upper-right corner of the page. By default, the monitoring data of the last six hours is displayed.
You can view the following monitoring metrics:
Write Request Rate
tps. The number of write requests per second.
Read Request Rate
qps. The number of read requests per second.
Write Request Response Time
tps_rt. The average response time for a write request.
Read Request Response Time
qps_rt. The average response time for a read request.
disk_ob_data_size. The disk usage.
equest_queue_rt. The average time that a request waits in the queue.
trans_user_trans_count. The number of transactions committed per second.
Transaction Response Time
trans_commit_rt. The average response time for committing a transaction, in the unit of ms.

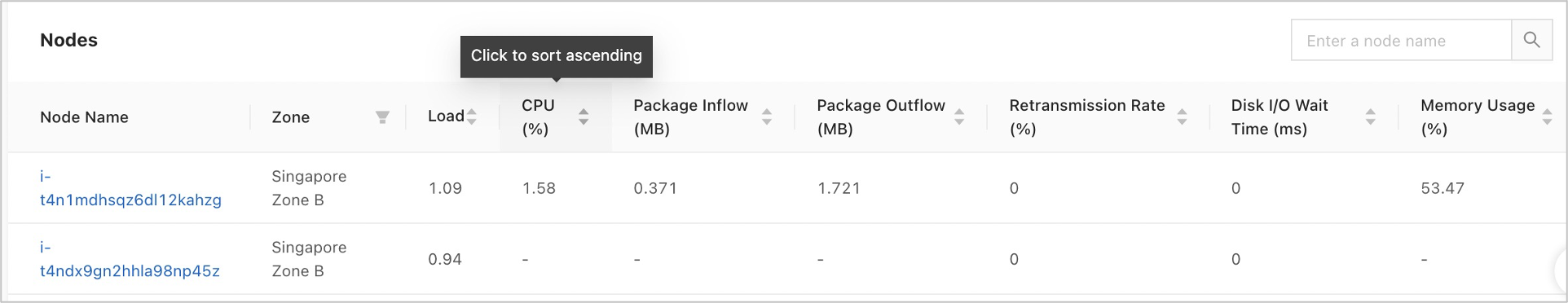

View associated nodes
The associated nodes list contains the following columns: Node Name, Zone, Load, CPU, Packet Inflow Rate, Packet Outflow Rate, Retransmission Rate, Disk I/O Wait Time, and Machine Memory Usage.
The Disk I/O Wait Time and Machine Memory Usage columns are available only for high-availability clusters.
