Container Service for Kubernetes:Customize the SAN of the API server certificate when you create an ACK cluster

Last Updated:Sep 07, 2023

The API server certificate of a Container Service for Kubernetes (ACK) cluster contains the Subject Alternative Name (SAN) field. By default, this field contains the domain name and IP address of the cluster. This field also contains the elastic IP address (EIP) and private IP address of the Server Load Balancer (SLB) instance that is associated with the API server of the cluster. You can customize the SAN if you want to access the ACK cluster by using a proxy or through a different domain name. This topic describes how to customize the SAN of the API server certificate when you create an ACK cluster. This topic also describes how to update the SAN of the API server certificate for an existing ACK cluster.

Prerequisites

Only managed Kubernetes clusters and ACK Serverless clusters are supported. Managed Kubernetes clusters include standard managed Kubernetes clusters and professional managed Kubernetes clusters. This section lists the methods that you can use to create three types of managed Kubernetes clusters. You need only to create one cluster in this example.

Background information

SAN is an extension to X.509. SAN allows you to associate various values with an SSL certificate by adding the values to the subjectAltName field. The values can be IP addresses, domain names, URIs, or email addresses.

Limits

  • You cannot customize the SAN of the API server certificate when you create an ACK Serverless cluster.

  • You can update the SAN of the API server certificate for an existing ACK Serverless cluster.

Customize the SAN of the API server certificate when you create an ACK cluster

This example describes how to customize the SAN of the API server certificate when you create a managed Kubernetes cluster.

On the Cluster Configurations wizard page, click Show Advanced Options. In the Custom Certificate SANs field, enter the SAN that you want to add to the API server certificate. For more information, see Create an ACK managed cluster.

Note

You can enter multiple values in the Custom Certificate SANs field. The values can be IP addresses, domain names, or URIs that comply with the conventions. Separate multiple values with commas (,).

an2

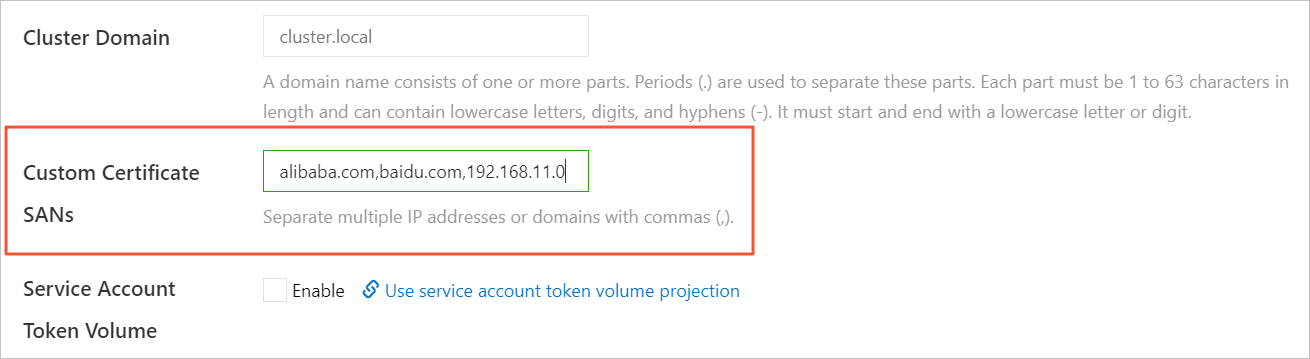

In the preceding figure, two domain names and an IP address are entered in the Custom Certificate SANs field.

Update the SAN of the API server certificate for an existing ACK cluster

Important

After you update the SAN of the API server certificate for an existing ACK cluster, the API server is restarted. Perform this operation during off-peak hours.

  1. Log on to the ACK console.

  2. In the left-side navigation pane of the ACK console, click Clusters.

  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.

  4. On the details page of the cluster, click the Basic Information tab and click Update on the right side of Custom Certificate SANs.

  5. In the Update Custom SAN dialog box, set the Custom Certificate SANs parameter.

  6. Click OK.
