By default, Container Service for Kubernetes (ACK) clusters are installed with the NVIDIA driver of version 418.87.01. If your CUDA Toolkit requires a higher version of the NVIDIA driver, you must specify a custom NVIDIA driver version for the cluster nodes. This topic describes how to use a node pool to create a node with a custom NVIDIA driver version.

Benefits

This solution allows you to manage the NVIDIA drivers of different nodes in batches. The following two scenarios are covered:

  • Node Pool A consists of nodes on which you want to install the NVIDIA driver of version 418.181.07. To schedule a task to a node that runs the NVIDIA driver of version 418.181.07, you need only to set the selector of the task to the label of Node Pool A.
  • You manage cluster nodes in two groups: A and B. You want to install the NVIDIA driver of version 418.181.07 in Group A and the NVIDIA driver of version 450.102.0 in Group B. In this case, you can add nodes in Group A to Node Pool A and nodes in Group B to Node Pool B.

Step 1: Determine the NVIDIA driver version

Note
  • To upgrade the NVIDIA driver for a node, you must remove the node from its cluster and add the node back to the cluster. When the node is added to the cluster, the operating system of the node is reinstalled and the NVIDIA driver of the specified version is installed. Before you perform the upgrade, make sure that no task is running on the node and critical data is backed up.
  • To lower risk of failures, we recommend that you first upgrade the NVIDIA driver for one node. If no error occurs during this process, you can then perform the upgrade on multiple nodes.

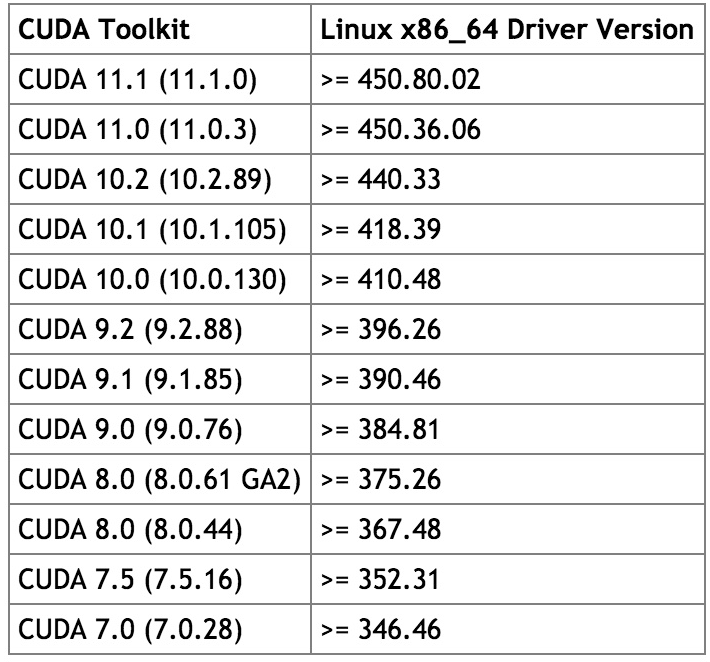

You must consider which CUDA Toolkit versions are compatible with the NVIDIA driver version that you want to use. The following figure displays a list of CUDA Toolkit versions and the compatible NVIDIA driver versions.
Note By default, ACK clusters are installed with the NVIDIA driver of version 418.87.01.
1

For more information, see CUDA compatibility.

Step 2: Create a node pool and specify the NVIDIA driver version

Method 1: Select an NVIDIA driver version provided by ACK

The following example shows how to set the NVIDIA driver version to 418.181.07:

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Nodes > Node Pools.
  5. In the upper-right corner of the Node Pools page, click Create Node Pool.
  6. In the Create Node Pool dialog box, set the required parameters. For more information about the parameters, see Create a dedicated Kubernetes cluster. The following section describes some of the parameters:
    1. Click Show Advanced Options.
    2. In the Node Label section, click 1, set Key to ack.aliyun.com/nvidia-driver-version, and then set Value to 418.181.07.

      ACK provides the following NVIDIA driver versions:

      • 418.181.07
      • 450.102.04
      • 460.32.03
      • 470.57.02
    3. After you set the parameters, click Confirm Order.

Method 2: Use a custom NVIDIA driver version

Custom driver version

The following example shows how to upload the NVIDIA-Linux-x86_64-460.32.03.run file to specify a custom driver version. You can download NVIDIA driver files from the NVIDIA official website.

Note The NVIDIA-Linux-x86_64-460.32.03.run file must be stored in the root directory of the specified Object Storage Service (OSS) bucket.
  1. Create an OSS bucket in the OSS console. For more information, see Create buckets.
  2. Upload the NVIDIA-Linux-x86_64-460.32.03.run file to the OSS bucket. For more information, see Upload objects.
  3. After the file is uploaded to the bucket, click Files in the left-side navigation pane of the bucket details page.
  4. On the Files page, find the file that you uploaded and click View Details in the Actions column.
  5. In the View Details panel, turn off the HTTPS switch to disable HTTPS.
    Note ACK downloads the driver file by using its URL, which uses the HTTP protocol. By default, OSS uses the HTTPS protocol. You must turn off the HTTPS switch to disable HTTPS.
  6. Check the URL of the driver file. Record the URL. The URL consists of the following parts: endpoint and runfile. For example, you can divide the following URL into two parts: http://nvidia-XXX-XXX-cn-beijing.aliyuncs.com/NVIDIA-Linux-x86_64-460.32.03.run.
    • endpoint: nvidia-XXX-XXX-cn-beijing.aliyuncs.com
    • runfile: NVIDIA-Linux-x86_64-460.32.03.run

Create a node pool with the custom driver version

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Nodes > Node Pools.
  5. In the upper-right corner of the Node Pools page, click Create Node Pool.
  6. In the Create Node Pool dialog box, set the required parameters. For more information about the parameters, see Create a dedicated Kubernetes cluster. The following section describes some of the parameters:
    1. Click Show Advanced Options.
    2. In the Node Label section, click 1 twice to add the following two labels:
      • For the first label, set Key to ack.aliyun.com/nvidia-driver-oss-endpoint and Value to nvidia-XXX-XXX-cn-beijing.aliyuncs.com.
      • For the second label, set Key to ack.aliyun.com/nvidia-driver-runfile and Value to NVIDIA-Linux-x86_64-460.32.03.run.
    3. After you set the parameters, click Confirm Order.

Method 3: Call an API operation to specify the NVIDIA driver version

You can call the CreateClusterNodePool operation to create a node pool with a specified NVIDIA driver version. For more information, see Create a node pool.

1. Specify the driver version in the API request

When you call API operations to create or scale out a cluster, you need only to add a specific tag to the tags field in the request body. The following sample code shows how to add a tag to specify the driver version:
{
  // Other fields are omitted.
  ......
    "tags": [
        {
            "key": "ack.aliyun.com/nvidia-driver-version",
            "value": "410.104"
        }
    ],
  // Other fields are omitted.
  ......
}

2. Specify the URL of the driver file in the API request

To specify the URL of the driver file in your API request, provide the endpoint and runfile values of the URL. These values indicate the location of the driver file in the OSS bucket. The following code provides an example: For more information about how to obtain the endpoint and runfile values of an object stored in an OSS bucket, see Check the URL of the driver file.
{
  // Other fields are omitted.
  ......
    "tags": [
      {
              "key": "ack.aliyun.com/nvidia-driver-oss-endpoint",
              "value": "nvidia-XXX-XXX-cn-beijing.aliyuncs.com"
      },
      {
        "key": "ack.aliyun.com/nvidia-driver-runfile",
        "value": "NVIDIA-Linux-x86_64-410.104.run"
      }
    ],
  // Other fields are omitted.
  ......
}

Step 3: Check whether the custom NVIDIA driver version is installed

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. In the ACK console, select the cluster to which the node belongs and click More > Open Cloud Shell in the Actions column.
  4. Run the following command to query pods that have the component: nvidia-device-plugin label:
    kubectl get po -n kube-system -l component=nvidia-device-plugin -o wide

    Expected output:

    NAME                                            READY   STATUS    RESTARTS   AGE   IP              NODE                       NOMINATED NODE   READINESS GATES
    nvidia-device-plugin-cn-beijing.192.168.1.127   1/1     Running   0          6d    192.168.1.127   cn-beijing.192.168.1.127   <none>           <none>
    nvidia-device-plugin-cn-beijing.192.168.1.128   1/1     Running   0          17m   192.168.1.128   cn-beijing.192.168.1.128   <none>           <none>
    nvidia-device-plugin-cn-beijing.192.168.8.12    1/1     Running   0          9d    192.168.8.12    cn-beijing.192.168.8.12    <none>           <none>
    nvidia-device-plugin-cn-beijing.192.168.8.13    1/1     Running   0          9d    192.168.8.13    cn-beijing.192.168.8.13    <none>           <none>
    nvidia-device-plugin-cn-beijing.192.168.8.14    1/1     Running   0          9d    192.168.8.14    cn-beijing.192.168.8.14    <none>           <none>

    You can check the NODE column to find the node that is newly added to the cluster. The name of the pod that runs on the node is nvidia-device-plugin-cn-beijing.192.168.1.128.

  5. Run the following command to query the NVIDIA driver version of the node:
    kubectl exec -ti nvidia-device-plugin-cn-beijing.192.168.1.128 -n kube-system -- nvidia-smi

    Expected output:

    Sun Feb  7 04:09:01 2021
    +-----------------------------------------------------------------------------+
    | NVIDIA-SMI 418.181.07   Driver Version: 418.181.07   CUDA Version: N/A      |
    |-------------------------------+----------------------+----------------------+
    | GPU  Name        Persistence-M| Bus-Id        Disp.A | Volatile Uncorr. ECC |
    | Fan  Temp  Perf  Pwr:Usage/Cap|         Memory-Usage | GPU-Util  Compute M. |
    |===============================+======================+======================|
    |   0  Tesla V100-SXM2...  On   | 00000000:00:07.0 Off |                    0 |
    | N/A   27C    P0    40W / 300W |      0MiB / 16130MiB |      0%      Default |
    +-------------------------------+----------------------+----------------------+
    |   1  Tesla V100-SXM2...  On   | 00000000:00:08.0 Off |                    0 |
    | N/A   27C    P0    40W / 300W |      0MiB / 16130MiB |      0%      Default |
    +-------------------------------+----------------------+----------------------+
    |   2  Tesla V100-SXM2...  On   | 00000000:00:09.0 Off |                    0 |
    | N/A   31C    P0    39W / 300W |      0MiB / 16130MiB |      0%      Default |
    +-------------------------------+----------------------+----------------------+
    |   3  Tesla V100-SXM2...  On   | 00000000:00:0A.0 Off |                    0 |
    | N/A   27C    P0    41W / 300W |      0MiB / 16130MiB |      0%      Default |
    +-------------------------------+----------------------+----------------------+

    +-----------------------------------------------------------------------------+
    | Processes:                                                       GPU Memory |
    |  GPU       PID   Type   Process name                             Usage      |
    |=============================================================================|
    |  No running processes found                                                 |
    +-----------------------------------------------------------------------------+

    The output shows that the NVIDIA driver version is 418.181.07. This indicates that the specified NVIDIA driver is installed.
