Before you use Hybrid Backup Recovery (HBR) to back up MySQL databases that are deployed on ECS instances, you can perform a precheck to identify conditions that may cause backup failure.

After you register a MySQL instance, you can precheck the instance to identify conditions that may cause backup failure. This way, you can prevent backup failure in advance. To start a precheck, perform the following steps:

  1. In the left-side navigation pane, choose Backup > ECS Database Backup. On the ECS Database Backup page, click MySQL in the top navigation bar.
  2. On the Database Instances tab, find the MySQL instance that you want to precheck, and click Precheck in the Actions column.
  3. On the Backup Precheck page, click Start Check.
    You can click View Last Precheck Result to view the results of the most recent backup precheck. The following table describes the check items of the precheck.
    Check items Description
    OSS connectivity Checks whether the Oracle instance is connected to the VPC Access from ECS (Internal Network) domain of the OSS instance. If the check fails, you cannot perform backup and recovery operations.
    Control network connectivity Checks whether the instance is connected to the control network. If the check fails, you cannot perform operations on this database instance.
    Support full backup version Checks the version of the MySQL database that supports full backup. MySQL 8.0 does not support incremental backup.
    BINLOG Checks whether the binlog configuration of the MySQL instance is correctly configured. If the check fails, you cannot backup the binary logs of the database.

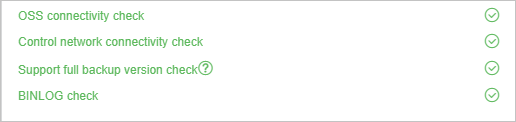

  4. The precheck requires about one minute to complete. The following figure indicates that the precheck is complete.
    If a check item fails the precheck, check whether the failure affects backup and recovery of the database.
    • If the failure does not affect backup and recovery of the database, the precheck is complete.
    • If the backup and recovery of the database are not affected, you can read the description in the preceding table to fix the issue.
