Problem description

When I commit a node, the system reports an error that the input and output of the node are not consistent with the data lineage in the code developed for the node.Lineage check

Possible causes

The table specified in the SELECT statement is inconsistent with the table added to Parent Nodes for the node, or the table specified in the INSERT or CREATE statement is inconsistent with the table added to Outputs for the node.

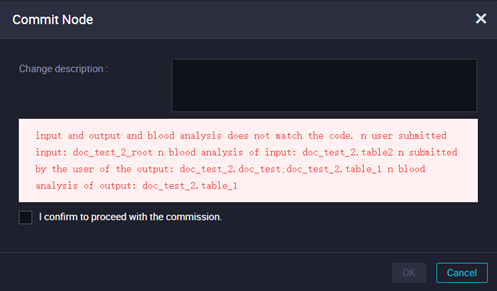

For example, in the preceding figure:
  • The SELECT statement in the code of the node that you committed specifies table2, but table2 is not added to Parent Nodes for the committed node.
  • doc_test is added to Outputs for the committed node, but the INSERT or CREATE statement in the code of the node does not specify a table named doc_test.

Solution

You must check whether the data lineage and scheduling dependencies are correctly configured. In principle, the data lineage must be consistent with scheduling dependencies. However, this does not apply to the scenario in which an inconsistency occurs because you delete node outputs configured by using tables that are not generated by auto triggered nodes.

If you forcibly commit a node without checking the preceding item, the following errors may occur:
  • Descendant nodes cannot obtain data from the ancestor nodes on which they depend. For example, the SELECT statement in the code of a node specifies Table A, and Table A is generated by a node scheduled to run every day. If Table A is not added to Parent Nodes for the node, and the running of the scheduled node that generates Table A fails one day, the node may fail to obtain the data generated by the last running of the scheduled node.
  • The output name of a dependent ancestor does not exist. For example, the CREATE or INSERT statement in the code of Node A specifies Table B, but Table B is not configured as the output of Node A. In this case, if the SELECT statement in the code of Node B specifies Table B, the system automatically configures Table B as the input of Node B to establish a dependency relationship between Node A and Node B. However, the system cannot find Node A based on the dependency relationship. Therefore, when you commit Node B, the system reports an error that the output name of the dependent ancestor node of Node B does not exist. For more information, see When I commit Node A, the system reports an error that the output name of the dependent ancestor node of Node A does not exist. What do I do?.
