This topic describes how to test and analyze the performance of an ApsaraDB RDS for MySQL instance in updating hot data in a single row of a table.

Test environment

In this example, two instances are used. One runs the High-availability Edition, and the other runs the Enterprise Edition. In addition, one uses the rds.mysql.st.v52 instance type, and the other uses the mysql.st.12xlarge.25 instance type.
  • Database engine and version: MySQL 5.7
  • Specifications: 90 CPU cores, 720 GB of memory (dedicated host instance family)
  • RDS editions: High-availability Edition and Enterprise Edition
  • Storage type: local SSD

Test data

The table that is used for the test contains 100 rows. The table complies with the following schema:
CREATE TABLE `sbtest1`
(
`id` INT(10) UNSIGNED NOT NULL AUTO_INCREMENT
,`k` INT(10) UNSIGNED NOT NULL DEFAULT '0'
,`c` CHAR(120) NOT NULL DEFAULT ''
,`pad` CHAR(60) NOT NULL DEFAULT ''
,PRIMARY KEY (`id`)
,KEY `k_1` (`k`)
)
ENGINE=InnoDB AUTO_INCREMENT=101 DEFAULT
CHARSET=utf8 MAX_ROWS=1000000

Test script

Execute the following SQL statement to perform concurrent updates on the row whose ID is 100:
UPDATE sbtest1 SET k=k+1 WHERE id=100
The following Lua script is used for the test:
pathtest = string.match(test,"(.*/)")
if pathtest then
   dofile(pathtest .."common.lua")
else
   require("common")
end
function thread_init(thread_id)
   set_vars()
end
function event(thread_id)
   local table_name
   table_name ="sbtest".. sb_rand_uniform(1, oltp_tables_count)
   rs = db_query("begin")
   rs = db_query("update /*+commit_on_success rollback_on_fail target_affect_row(1) */ sbtest1 SET k=k+1 WHERE id=100")
   rs =db_query("commit")
end

Test results

Instance configuration Maximum TPS on the single row
High-availability Edition 12,000
Enterprise Edition 31,000

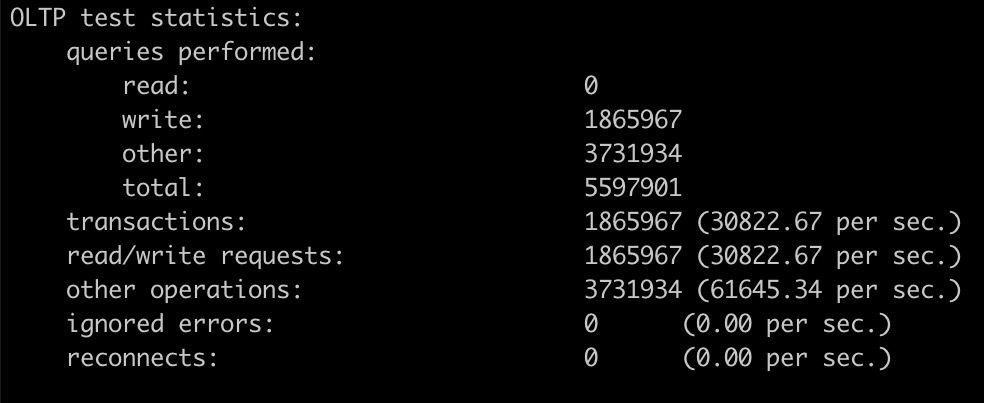

Figure 1. Test results for Enterprise Edition
Test results for Enterprise Edition
