This topic describes how to view the NoSQL analysis of an application.

Prerequisites

The application is monitored by Application Monitoring. For more information, see Overview.

Procedure

  1. Log on to the ARMS console. In the left-side navigation pane, choose Application Monitoring > Applications.
  2. On the Applications page, select a region in the top navigation bar and click the name of the application that you want to manage.
    Note If the Java icon icon is displayed in the Language column, the application is connected to Application Monitoring. If a hyphen (-) is displayed, the application is connected to Tracing Analysis.
  3. In the left-side navigation pane, click Application Details.
  4. On the Application Details page, select an application instance, set the time period, and then click the NoSql Analysis tab.
    NoSql Analysis

NoSQL analysis

The Call statistics section displays the time series curve that indicates the NoSQL data of the application in the specified time period.

Optional:In the Call statistics section, you can perform the following operations:
  • Move the pointer over a chart and view the detailed statistics.
  • Click the chart icon to view the statistics of the metric in a certain time period or compare the statistics of the metric in the same time period on different dates.
  • Click the code icon to view the API details of the metric.

Command list

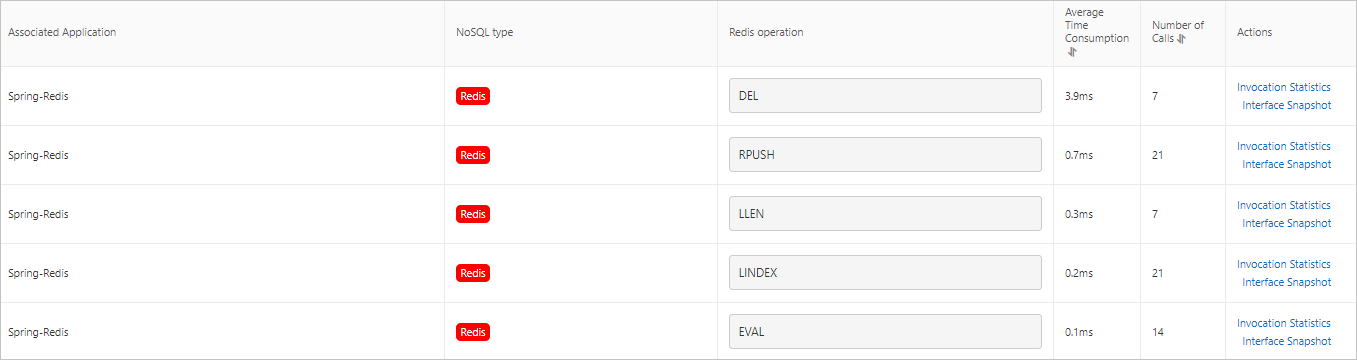

The command list displays all commands that are run in NoSQL calls of the application in the specified time period.

Optional:In the command list, you can perform the following operations:
  • To view the NoSQL data of a command, click Invocation Statistics in the Actions column.
  • To view the traces of a command, click Interface Snapshot in the Actions column.

    For more information, see Query traces.
