Container Service for Kubernetes (ACK) is integrated with the Velero open source tool to provide the application backup feature. This feature allows you to back up and restore applications and volumes in ACK clusters and registered external clusters. You can create and restore backups in the same cluster. You can also create backups in one cluster and restore backups to another cluster. This topic describes how to back up and restore applications in Kubernetes clusters. This helps protect your applications from service interruptions and data loss.

Prerequisites

This feature is in public preview. To use this feature, you must Submit a ticket to apply for the feature to be enabled on your account.
A Kubernetes cluster is created. For more information, see Create a managed Kubernetes cluster, Create a dedicated Kubernetes cluster, or Create a cluster registration proxy and register an on-premises cluster.

Note The Kubernetes version of your cluster must be later than 1.10. Otherwise, the feature may not function as expected.
An Object Storage Service (OSS) bucket is created. For more information, see Create buckets.

Background information

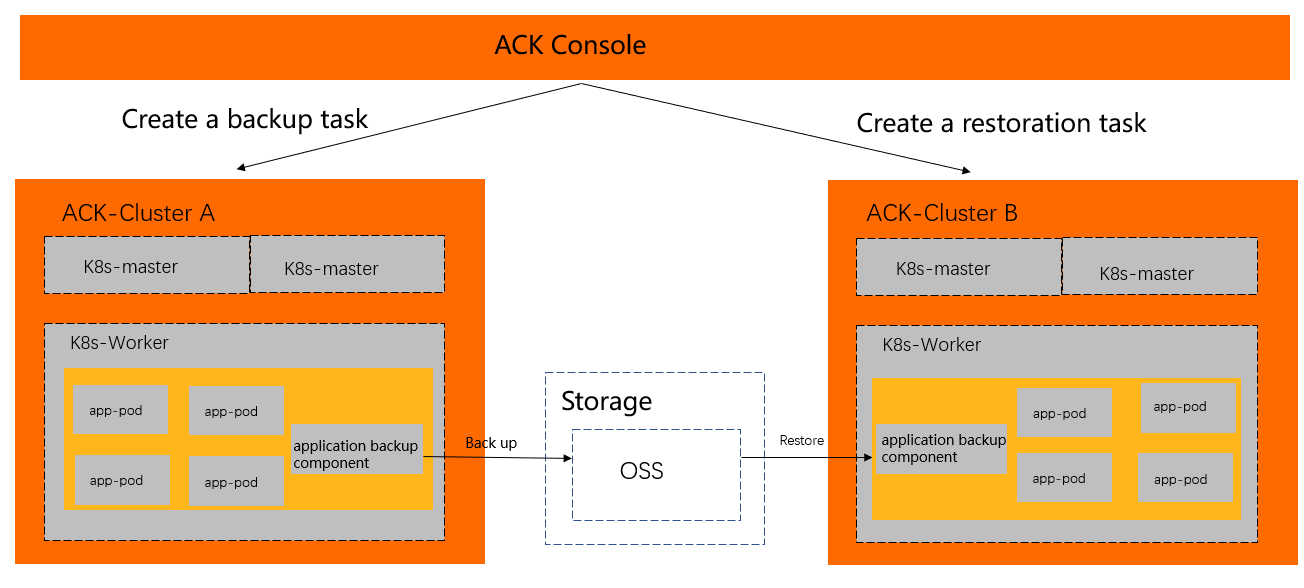

The number of enterprises that choose to deploy their applications on Kubernetes are increasing. Therefore, regular application backups are important. You can use application backups to restore applications that cannot be recovered after the applications are accidentally disrupted for a long period of time. Traditional backup solutions include single-server backups and disk backups. Compared with traditional solutions, application backups allow you to back up applications and the data, resource objects, configurations, and namespaces of the applications.

Limits

You can back up applications only by namespace.
You can create only full backups for applications. Incremental backups are not supported.
When you back up an application, the resources in the Deleting state are not backed up.

Step 1: Grant OSS permissions to the cluster

Configure permissions for managed or dedicated Kubernetes clusters

If you use a managed or dedicated Kubernetes cluster, you must grant the required OSS permissions to the cluster.

Create a custom permission policy that is used to access OSS. For more information, see Create a custom policy.

Note For information about how to regulate fine-grained access to an OSS bucket, see Use RAM to manage OSS permissions.

To grant full permissions to the cluster, create a permission policy based on the following content:

{
    "Version": "1",
    "Statement": [
        {
            "Action": [
                "oss:PutObject",
                "oss:GetObject",
                "oss:DeleteObject",
                "oss:GetBucket",
                "oss:ListObjects",
                "oss:ListBuckets"
            ],
            "Resource": [
                "*"
            ],
            "Effect": "Allow"
        }
    ]
}

To grant only read and write permissions to the cluster, create a permission policy based on the following content:

{
    "Version": "1",
    "Statement": [
        {
            "Action": [
                "oss:PutObject",
                "oss:GetObject",
                "oss:DeleteObject",
                "oss:GetBucket",
                "oss:ListObjects",
                "oss:ListBuckets"
            ],
            "Resource": [
                "acs:oss:*:*:mybackups",
                "acs:oss:*:*:mybackups/*"
            ],
            "Effect": "Allow"
        }
    ]
}

Replace the value of mybackups with the name of the OSS bucket that you created.

Grant permissions to the Resource Access Management (RAM) role of the managed Kubernetes cluster.

Log on to the ACK console.
In the left-side navigation pane of the ACK console, click Clusters.
On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
On the details page of the cluster, click the Cluster Resources tab and view the worker RAM role of the cluster.
Log on to the RAM console.
In the left-side navigation pane, click Grants.

On the Grants page, click Grant Permission. In the Add Permissions panel, specify the parameters and click OK.


Parameter	Description
Authorized Scope	Valid values: Alibaba Cloud Account and Specific Resource Group.
Principal	Enter the worker RAM role of the cluster that you previously obtained.
Select Policy	Click Custom Policy, enter the name of the permission policy that is created in Step 1, and then click the name of the policy.

Grant permissions to a registered cluster

If your applications are deployed in a registered cluster, you must create a RAM user for the cluster. Grant the RAM user the permissions to access other cloud resources and create an AccessKey pair for the RAM user.

Create a RAM user. For more information, see Create a RAM user.
Create a custom permission policy that is used to access OSS. For more information, see Step 1.
Grant permissions to the RAM user. For more information, see Grant permissions to a RAM user.
Create an AccessKey pair for the RAM user. For more information, see Obtain an AccessKey pair.
Create a Secret in the registered cluster.

To ensure that the AccessKey pair is used only within the registered cluster, you must use the AccessKey pair to deploy a Secret that is named alibaba-addon-secret in the cluster. This reduces the risk of information leakage.

ACK installs migrate-controller in the velero namespace, which is inherited from the open source Velero project. If the namespace does not exist, you must create a namespace that is named velero. After you create the namespace, use the AccessKey pair to create a Secret that is named alibaba-addon-secret Secret in the namespace.
1. Run the following command to create a namespace named velero:
```
kubectl create ns velero
```
2. Run the following command to create a Secret named alibaba-addon-secret:
```
kubectl -n velero create secret generic alibaba-addon-secret --from-literal='access-key-id=<your AccessKey ID>' --from-literal='access-key-secret=<your AccessKey Secret>'
```
  Replace your AccessKey ID and your AccessKey Secret with the AccessKey ID and AccessKey secret that are obtained in Step 4.

Step 2: Install the application backup component

Log on to the ACK console.
In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
In the left-side navigation pane of the details page, choose Operations > Application Backup (Public Preview).
On the Application Backup page, click Install.

Note If the velero namespace does not exist, the system automatically creates the namespace when the component is installed. Do not delete this namespace when you back up applications.

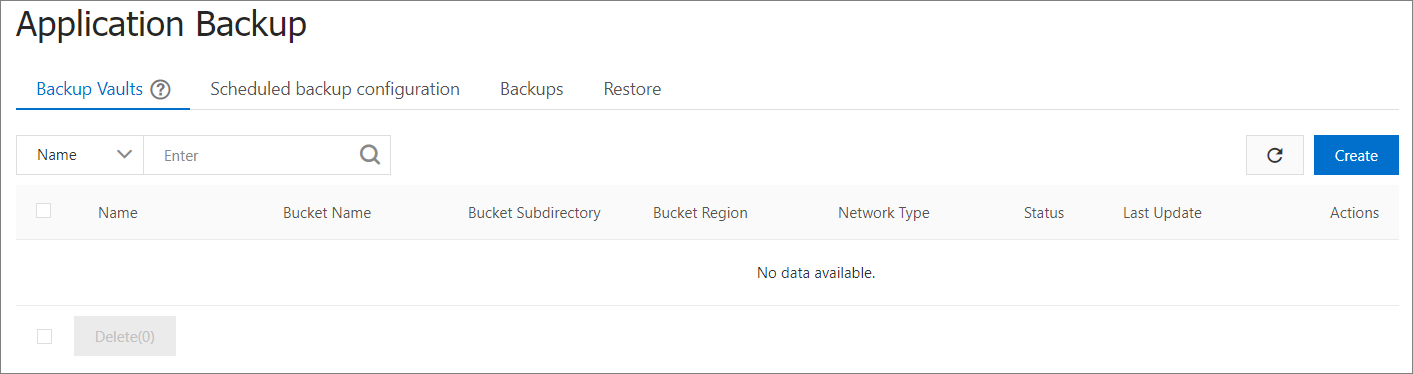

If the component is installed, the page in the following figure appears.

Step 3: Create a backup vault

When you back up applications in an ACK cluster, backup data is stored in an OSS bucket. The following content describes how to access an OSS bucket:

Log on to the ACK console.
In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
In the left-side navigation pane of the details page, choose Operations > Application Backup (Public Preview).
On the Application Backup page, click Create on the Backup Vaults tab.

In the Create panel, specify the parameters and click OK.


Parameter	Description
Name	The name of the backup vault. The name can contain lowercase letters and digits.
Bucket Region	The region where the OSS bucket is deployed.
Bucket Name	The name of the OSS bucket.
Bucket Subdirectory	The subdirectory of the OSS bucket. This parameter is optional.
Network Type	Valid values: Public Network and Internal Network. If your environment can connect to the internal endpoint of the OSS bucket to transfer data, select the internal network type. Otherwise, ACK transmits data over the Internet.

Step 4: Create a backup task

Log on to the ACK console.
In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
In the left-side navigation pane of the details page, choose Operations > Application Backup (Public Preview).
On the Application Backup page, click the Backups tab.
On the Backups tab, click Create.
If you want to back up a volume, run the following command to add an annotation to the pod on which the volume is mounted.
Note If you want to back up an application, skip this step.
```
kubectl -n <The name of the volume that you want to back up> annotate pod/<The name of the pod> backup.velero.io/backup-volumes=<The name of the persistent volume claim (PVC) that corresponds to the pod>
```
In the Create panel, specify the following parameters: Name, Backup Vaults, Backup Namespace, and Validity Period. After you specify the parameters, click OK.

Note The name can contain only lowercase letters and digits.

On the Backups tab, if the state of the backup task is Completed, the task is created.

Step 5: Create a restoration task

Log on to the ACK console.
In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
In the left-side navigation pane of the details page, choose Operations > Application Backup (Public Preview).
On the Application Backup page, click the Restore tab.
On the Restore tab, click Create Restoration Task.
In the Create Restoration Task panel, enter a name in the Name field, select a backup from the Backup Name drop-down list, and then click OK.
Note
- The name can contain only lowercase letters and digits.
- Existing resources in the cluster are not overwritten during restoration. Only resources that do not exist in the cluster are restored. You must delete the current resources of the application before you can restore an application to an earlier version.
In the message that appears, click OK.

Restore an application to a specified cluster

You must create two clusters before you can restore an application to a specified cluster. In this example, the two clusters are cluster_A and cluster_B. The following example shows how to back up an application in cluster_A and restore the application in cluster_B.

Notice Make sure that the two clusters use the same Kubernetes version. If the clusters use different Kubernetes versions, you cannot restore the application to the specified cluster.

Grant the required OSS permissions to cluster_A and cluster_B. For more information, see Step 1: Grant OSS permissions to the cluster.
Install the application backup component in cluster_A and cluster_B. For more information, see Step 2: Install the application backup component.
Create a backup vault for cluster_A and cluster_B. When you create backup vaults for cluster_A and cluster_B, select the same OSS bucket and set Network Type to Public Network. For more information, see Step 3: Create a backup vault.
Create a backup task in cluster_A. For more information, see Step 4: Create a backup task.
After the backup task is created, you can log on to cluster_B to view the backup task on the Backups tab of the Application Backup page.
On the Application Backup page, click the Restore tab and create a restoration task based on the backup task that is created in cluster_A. For more information, see Step 5: Create a restoration task.
