Container Service for Kubernetes (ACK) allows you to mirror network traffic across clusters. Traffic mirroring is used in system simulations and troubleshooting. This topic describes how to use an Ingress controller to mirror network traffic.

Prerequisites

Two ACK clusters are created. For more information, see Create a managed Kubernetes cluster. In this topic, a cluster named K8s Product Cluster is used as the production environment and another cluster named K8s Stage Cluster is used as the staging environment.

Scenarios

Traffic mirroring can be used in the following scenarios:
  • Before you make significant changes to a system or release new features, you must run stress tests to evaluate the stability of the system. In most cases, production workloads are simulated in a staging environment to test the stability of a new system before the system is released. However, the actual loads are difficult to estimate because the system may receive both normal and abnormal network traffic. To resolve this issue, you can mirror network traffic from applications that are deployed in the production environment to the staging environment. Then, you can simulate the production workloads in the staging environment.

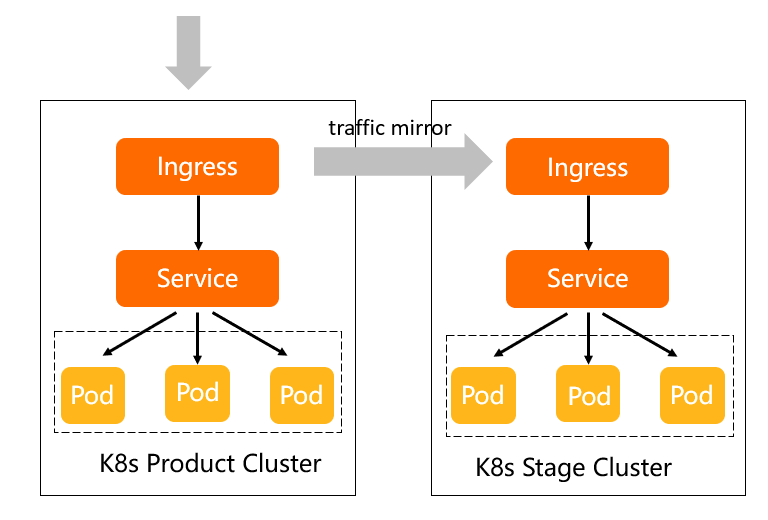

  • When a system deployed in the production environment encounters a performance bottleneck and you cannot locate the cause, you can mirror the network traffic of the system to a staging environment. This way, you can troubleshoot errors in the staging environment. Scenarios

Step 1: Deploy basic applications

  1. Deploy applications in the cluster named K8s Product Cluster and test access to the applications.
    1. Deploy an application in the cluster named K8s Product Cluster and use an Ingress to expose the Services in the cluster.
      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-deployment
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
          spec:
            containers:
            # A previous version of the image is deployed.
            - image: registry.cn-hangzhou.aliyuncs.com/xianlu/old-nginx
              imagePullPolicy: Always
              name: nginx
              ports:
              - containerPort: 80
                protocol: TCP
            restartPolicy: Always
      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-service
      spec:
        ports:
        - port: 80
          protocol: TCP
          targetPort: 80
        selector:
          app: nginx
        type: NodePort
      ---
      apiVersion: networking.k8s.io/v1
      kind: Ingress
      metadata:
        name: nginx-ingress
      spec:
        rules:
        # By default, the application is deployed in the region where the cluster resides. You can specify a region and configure DNS resolution.
        - host: nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com
          http:
            paths:
            - path: /
              backend:
                service:
                  name: nginx-service
                  port:
                    number: 80
              pathType: ImplementationSpecific
    2. Run the following command to view the Ingress configurations:
      kubectl get ing nginx-ingress

      Expected output:

      NAME            HOSTS                                                                  ADDRESS         PORTS     AGE
      nginx-ingress   nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com   47.110.1**.**   80        8m
    3. Run the following command to check whether you can access the domain name of the application:
      curl http://nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com
  2. Deploy the same application in the cluster named K8s Stage Cluster and test access to the application.
    1. Deploy the same application in the cluster named K8s Stage Cluster and use an Ingress to expose the Services in the cluster.
      apiVersion: apps/v1
      kind: Deployment
      metadata:
        name: nginx-deployment
      spec:
        replicas: 1
        selector:
          matchLabels:
            app: nginx
        template:
          metadata:
            labels:
              app: nginx
          spec:
            containers:
            # The latest version of the image is deployed.
            - image: registry.cn-hangzhou.aliyuncs.com/xianlu/new-nginx
              imagePullPolicy: Always
              name: nginx
              ports:
              - containerPort: 80
                protocol: TCP
            restartPolicy: Always
      ---
      apiVersion: v1
      kind: Service
      metadata:
        name: nginx-service
      spec:
        ports:
        - port: 80
          protocol: TCP
          targetPort: 80
        selector:
          app: nginx
        type: NodePort
      ---
      apiVersion: networking.k8s.io/v1
      kind: Ingress
      metadata:
        name: nginx-ingress
      spec:
        rules:
        # By default, the application is deployed in the region where the cluster resides. You can specify a region and configure DNS resolution.
        - host: nginx.c41eb6ca34a3e49f7aea63b8bc9e8****.cn-beijing.alicontainer.com
          http:
            paths:
            - path: /
              backend:
                service:
                  name: nginx-service
                  port:
                    number: 80
              pathType: ImplementationSpecific
    2. Run the following command to view the Ingress configurations:
      kubectl get ing nginx-ingress

      Expected output:

      NAME            HOSTS                                                                 ADDRESS        PORTS     AGE
      nginx-ingress   nginx.c41eb6ca34a3e49f7aea63b8bc9e8****.cn-beijing.alicontainer.com   39.106.***.*   80        1m
    3. Run the following command to check whether you can access the domain name of the application:
      curl http://nginx.c41eb6ca34a3e49f7aea63b8bc9e8****.cn-beijing.alicontainer.com

Step 2: Mirror the network traffic

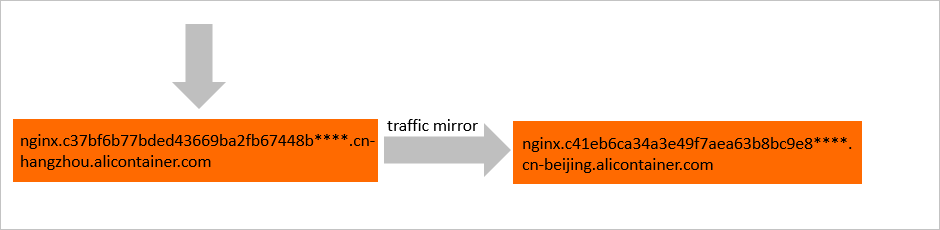

Mirror all network traffic of the application deployed in the cluster K8s Product Cluster to Services in the cluster K8s Stage Cluster. This way, all requests that are sent to the domain name nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com are replicated to the domain name nginx.c41eb6ca34a3e49f7aea63b8bc9e8****.cn-beijing.alicontainer.com.
Note
  • The Ingress of the cluster K8s Stage Cluster functions only as a receiver of the mirrored network traffic. Do not modify the configurations of the Ingress in the cluster K8s Stage Cluster. You can modify the Ingress of the cluster K8s Product Cluster.
  • After the network traffic of the application deployed in the cluster K8s Product Cluster is mirrored to Services in the cluster K8s Stage Cluster, the client receives responses only from the cluster K8s Product Cluster. Responses from the cluster K8s Stage Cluster are dropped.

Mirror network traffic
  1. Run the following command to modify nginx-configuration. Set the percentage of network traffic that you want to mirror and specify the domain name that receives the mirrored network traffic:
    kubectl -n kube-system edit cm nginx-configuration

    Add the following content to nginx-configuration:

    http-snippet: |
       split_clients "$date_gmt" $mirror_servers {
          100%    nginx.c41eb6ca34a3e49f7aea63b8bc9e8****.cn-beijing.alicontainer.com;
       }

    # Notes on configurations:
    # 1. The percentage of network traffic that you want to mirror must be greater than 0 and can be up to 100. The sum of percentage cannot exceed 100.
    # 2. You can set one or more applications to receive the mirrored network traffic.
  2. Run the following command to modify nginx-ingress:

    You can add traffic mirroring settings to the source Ingress by setting the configuration-snippet and server-snippet annotations.

    kubectl edit ingress nginx-ingress

    Modify configuration-snippet and server-snippet of the nginx-ingress controller based on your business requirements. The following YAML file is an example:

    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: nginx-ingress
      annotations:
        nginx.ingress.kubernetes.io/configuration-snippet: |
            mirror /mirror; # You can repeat this setting N times to mirror the network traffic N times.
        nginx.ingress.kubernetes.io/server-snippet: |
            location = /mirror {
                internal;
                # Does not print the log of mirrored requests
                #access_log off;
                # Set proxy_upstream_name in the following format: [Namespace]-[BackendServiceName]-[BackendServicePort]
                set $proxy_upstream_name    "default-nginx-service-80";
                # A custom string that is carried in the request header X-Shadow-Service and then passed to the mirror server.
                set $shadow_service_name    "nginx-product-service";
                proxy_set_header X-Shadow-Service  $shadow_service_name;
                proxy_set_header Host $mirror_servers;
                proxy_pass http://$mirror_servers$request_uri;
            }
    spec:
      rules:
      - host: nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com
        http:
          paths:
          - path: /
            backend:
              service:
                name: nginx-service
                port:
                  number: 80
            pathType: ImplementationSpecific

Verify the result.

Access the domain name nginx.c37bf6b77bded43669ba2fb67448b****.cn-hangzhou.alicontainer.com. This domain name belongs to the application that is deployed in the cluster K8S Product Cluster. Run the following command. The output shows that each request sent to the domain name of the application deployed in the cluster K8S Product Cluster is replicated, and then sent to the application deployed in the cluster K8S Stage Cluster.

kubectl -n kube-system logs --tail-o -f nginx-ingress-controller-674c96ffbc-9mc8n
Traffic mirroring result
