Knative provides the Knative Eventing component to build an event-driven framework for serverless applications. Knative Eventing has designed an all-in-one eventing system for event-driven serverless applications. Knative Eventing provides event management capabilities, such as producing and consuming events. This topic describes how to deploy Knative Eventing in a serverless Kubernetes (ASK) cluster.

Procedure

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster, or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Applications > Knative.
  5. In the Core Components section on the Components tab, find Eventing and click Deploy in the Actions column.
  6. In the Deploy Eventing dialog box, the PrivateZone is not enabled for the cluster. Please enable PrivateZone. note appears. Perform the following steps to enable PrivateZone.
    Note If the PrivateZone is not enabled for the cluster. Please enable PrivateZone. note is not displayed in the Deploy Eventing dialog box, you can directly go to Step 7.
    1. Run the following command to edit the eci-profile file.
      kubectl -n kube-system edit configmap eci-profile
    2. Set privatezone to true. Save the change and close the eci-profile file.
      apiVersion: v1
      data:
        ...
        privatezone: "true"
        ...
      kind: ConfigMap
      metadata:
        name: eci-profile
        namespace: kube-system
  7. In the Deploy Eventing dialog box, click OK.

Deployment result

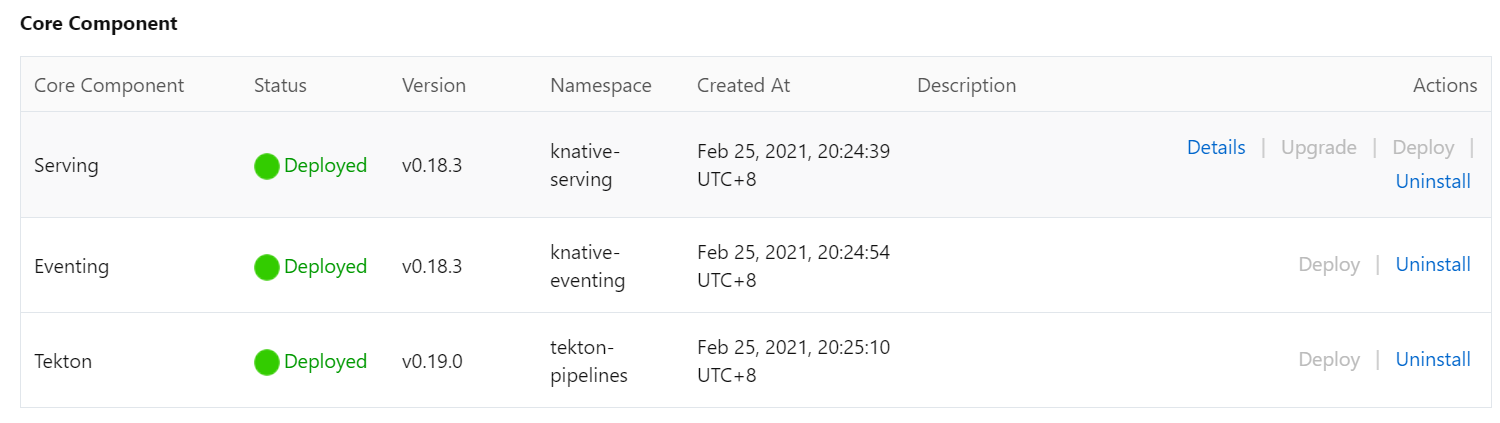

After Knative Eventing is deployed, the component is in the Deployed state on the Components tab.eventing
