You can monitor the queries per second (QPS), response time (RT), and pod scaling trends of a Knative application. This topic describes how to configure the monitoring of these items.

Prerequisites

Log Service and Knative are enabled for a serverless Kubernetes (ASK) cluster. For more information, see Deploy Knative in an ASK cluster.

Background information

Create and configure a Logstore

  1. Log on to the Log Service console.
  2. In the Projects section, click the Log Service project that is related to the ASK cluster.
  3. On the Logstores tab of the Log Storage page, click the + icon.
  4. In the Create Logstore panel, set the parameters and click OK. For more information about the parameters that are required to create a Logstore, see Manage a Logstore.
  5. In the Created. dialog box, click Data Import Wizard.
  6. In the Data Import section, click Docker Standard Output.86
  7. In the Create Machine Group step, click Use Existing Machine Group.
  8. In the Machine Group Settings step, select an existing machine group and click Next.
  9. In the Specify Data Source step, configure the log collection rules by using the following code and click Next.
    {
        "inputs": [
            {
                "detail": {
                    "IncludeEnv": {
                        "QUEUE_SERVING_PORT": "8012"
                    },
                    "ExcludeLabel": {}
                },
                "type": "service_docker_stdout"
            }
        ]
    }
  10. In the Configure Query and Analysis step, keep the default settings and click Next.
  11. In the End step, click Search in the Log Query section.

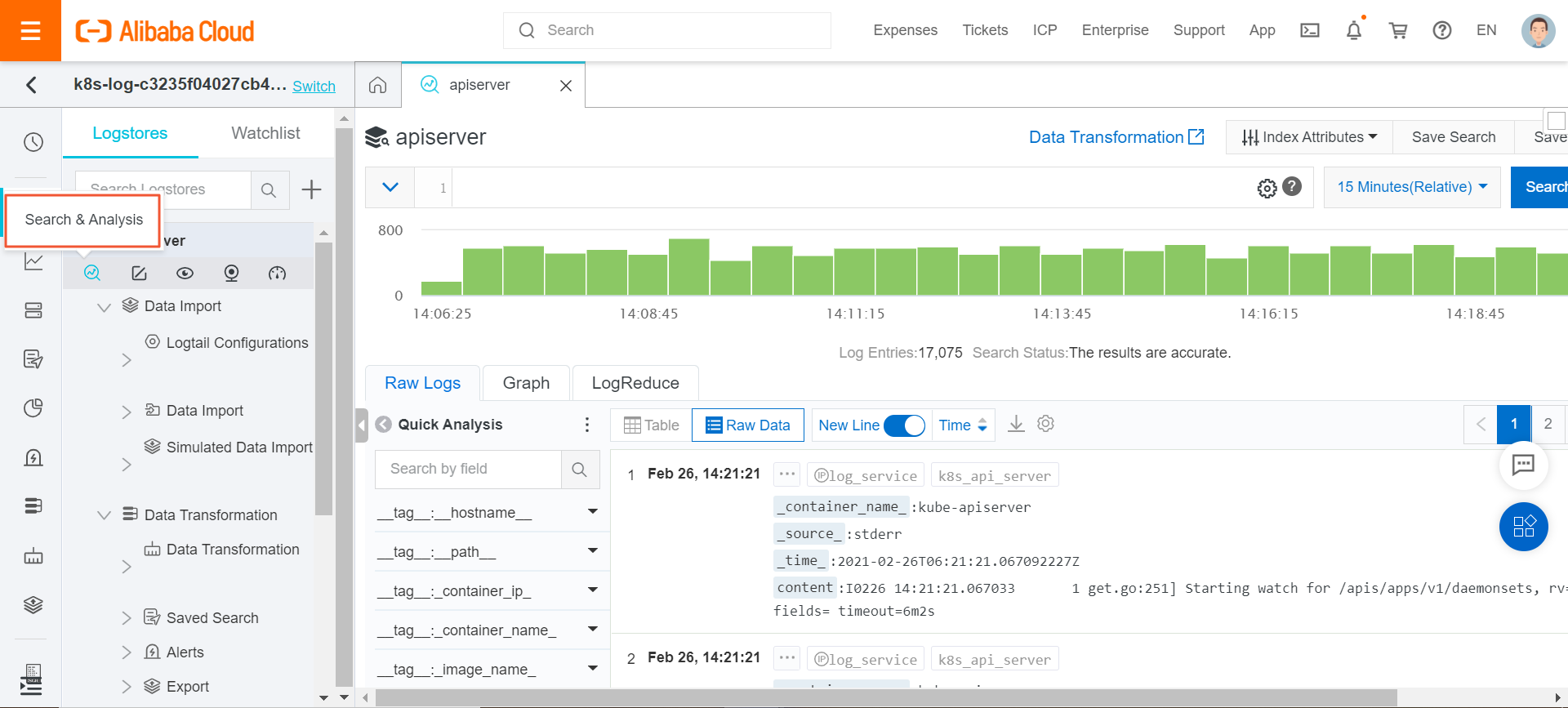

    1. Click the Search & Analysis icon to view collected logs.92-1

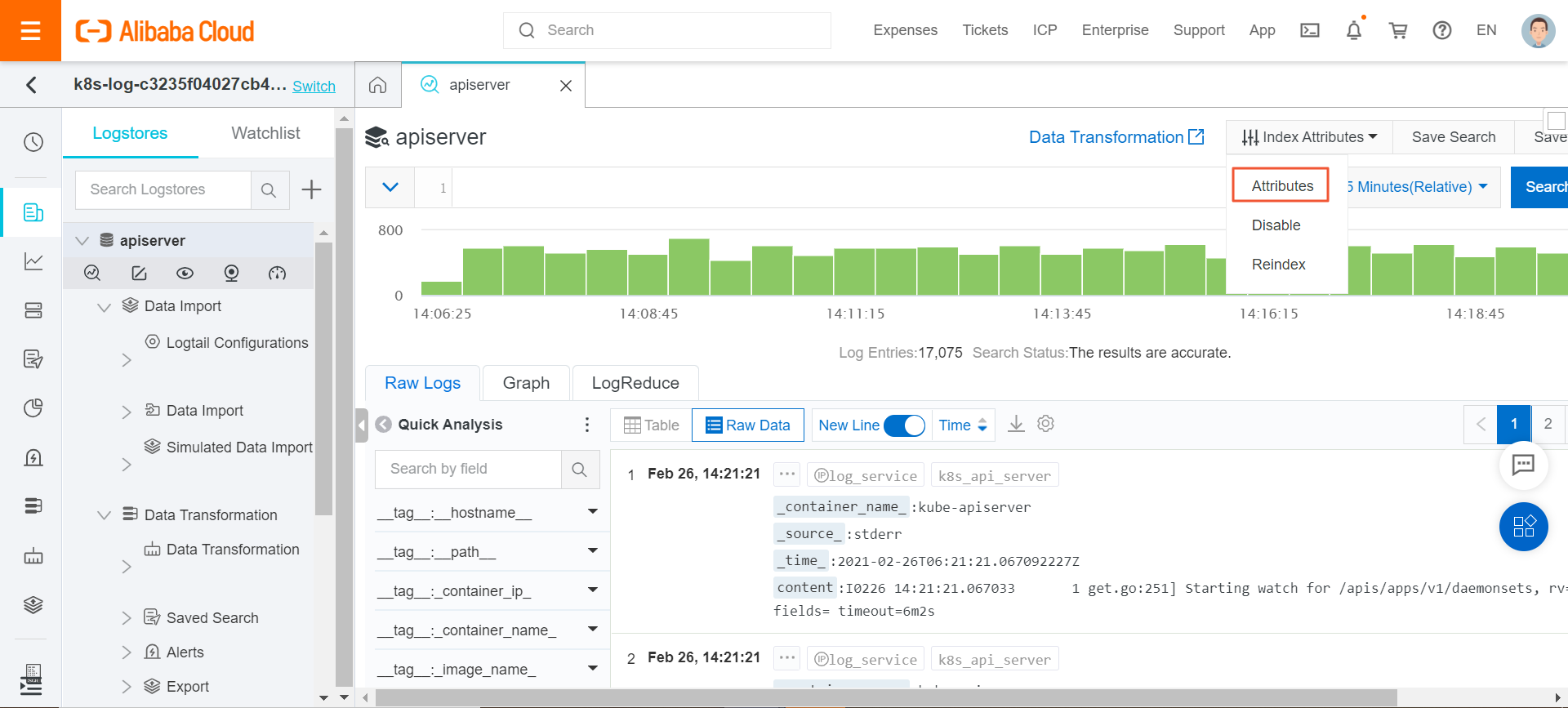

    2. Click Index Attributes and select Attributes from the drop-down list.92-2

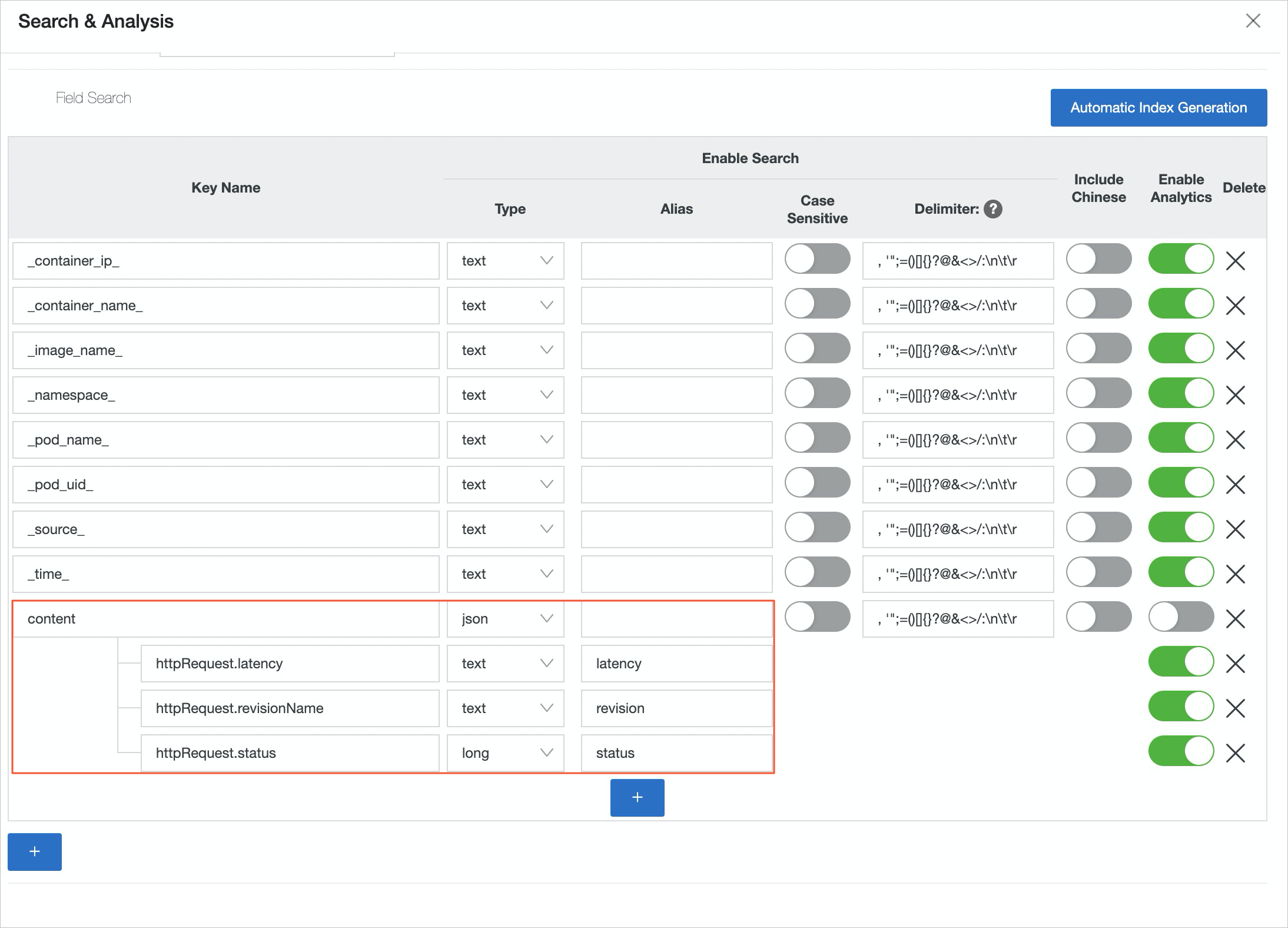

    3. In the Search & Analysis panel, click Automatic Index Generation. In the Automatically Generate Index Attributes dialog box, click Append and add the following fields to the content parameter.
      Field Type Alias
      httpRequest.latency text latency
      httpRequest.status long status
      httpRequest.revisionName text revision

Configure collection of QPS data

  1. Log on to the Log Service console.
  2. In the Projects section, click the Log Service project that is related to the ASK cluster.
  3. On the Logstores tab of the Log Storage page, click the Logstore that you want to use.

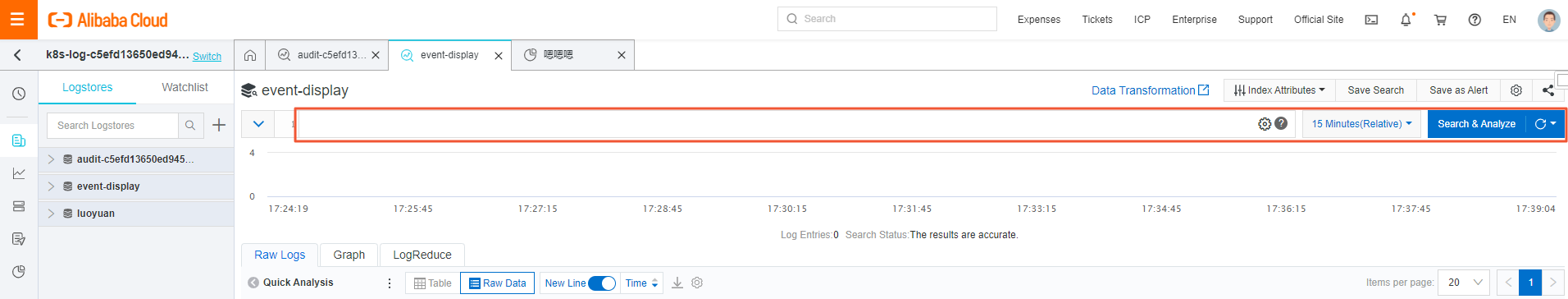

  4. Enter the following SQL statement into the Search & Analyze text box.
    97-ch
    httpRequest | select date_trunc('minute' ,  __time__) as stamp, count(*) as num, revision from log group by stamp,revision order by stamp
  5. Click the Flow Chart icon. Set the parameters on the Properties tab and click Add to New Dashboard.
    91-ch

Configure collection of RT data

  1. Log on to the Log Service console.
  2. In the Projects section, click the Log Service project that is related to the ASK cluster.
  3. On the Logstores tab of the Log Storage page, click the Logstore that you want to use.
  4. Enter the following SQL statement into the Search & Analyze text box.
    httpRequest|select  stamp as timestamp, trt as rt, revision from (select  date_trunc('minute' ,  __time__)  as stamp, round (avg(cast(replace(latency,'s') as double)), 6) as trt, revision   from log   group by   stamp, revision
           order by stamp
           limit 100000)
  5. Click the Flow Chart icon. Set the parameters on the Properties tab and click Add to New Dashboard.
    93-ch

Configure collection of trend statistics on pod scaling

  1. Log on to the Log Service console.
  2. In the Projects section, click the Log Service project that is related to the ASK cluster.
  3. On the Logstores tab of the Log Storage page, click the Logstore whose name starts with audit.
  4. Click Index Attributes and select Attributes from the drop-down list.
  5. In the Search & Analysis panel, add the following fields to the responseObject parameter in the Field Search section.
    Field Type Alias
    metadata.labels.serving.knative.dev/revision text revision
    metadata.labels.serving.knative.dev/service text service
    status.readyReplicas long readyReplicas
    status.replicas long replicas
  6. Enter the following SQL statement into the Search & Analyze text box.
    objectRef.resource: deployments and responseStatus.code: 200 and ( verb: update or verb: get)| select case when "revision" is null then 'none' else "revision" end as "revision", "t" as timestamp, total,concat('total:', cast(total AS varchar), ', ready: ', cast(ready AS varchar), ', notReady',cast((total-ready) AS varchar)) as detail from (select date_trunc('minute' ,  __time__) as t, max(replicas) as total, max(readyReplicas) as ready, revision from log where service='event-display-common' group by t, revision order by t)
  7. Click the Flow Chart icon. Set the parameters on the Properties tab and click Add to New Dashboard.
    94-ch

Monitor the application status

To monitor the application status, you can add the preceding charts to one dashboard by using the following methods:
