Application Real-Time Monitoring Service:Use SkyWalking and Tracing Analysis to analyze slow requests at the code level

Last Updated:Feb 05, 2024

Java frameworks can be used to automatically instrument applications based on the Java bytecode injection technology. This way, you can know the spans between which a slow request occurs. However, this is insufficient to identify issues at the code level. You can use Tracing Analysis and the slow-request analysis feature of SkyWalking to find the specific methods that cause slow requests.

Prerequisites

SkyWalking is connected to Tracing Analysis. For more information, see Use SkyWalking to report Java application data.

Create a slow-request collection task

  1. Log on to the ARMS console. In the left-side navigation pane, choose Application Monitoring > Applications.

  2. On the Applications page, select a region in the top navigation bar and click the name of the application that you want to manage.

    Note

    If the Java图标 icon is displayed in the Language column, the application is connected to Application Monitoring. If a hyphen (-) is displayed, the application is connected to Managed Service for OpenTelemetry.

  3. In the left-side navigation pane, click Slow Request Analysis. Then, click Create a task.

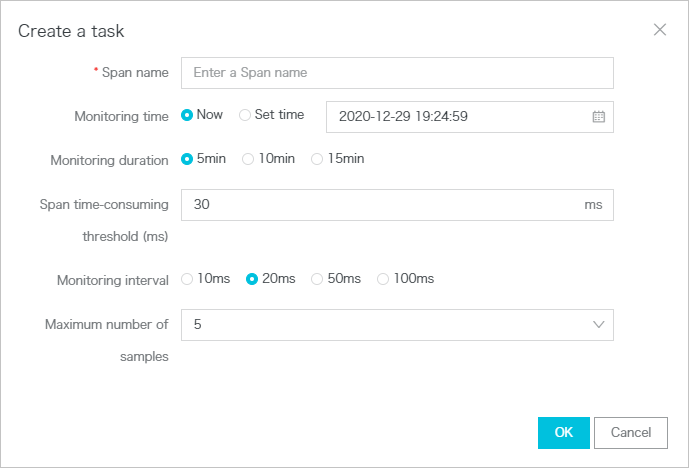

  4. In the Create a task dialog box, set parameters and click OK. The following table describes the parameters.

    Parameter

    Description

    Required

    Example

    Span name

    The name of the span that you want to monitor.

    Yes

    /api

    Monitoring duration

    The duration of the monitoring.

    No

    5 min

    Span time-consuming threshold

    The threshold of the span duration. The span is analyzed only when its duration exceeds this threshold. Unit: milliseconds

    No

    30 ms

    Monitoring interval

    The interval at which monitoring data is collected.

    No

    20 ms

    Maximum number of samples

    The maximum number of data samples that are collected for the span. Valid values: 1 to 9.

    No

    5

    The created task is displayed in the Task list section.

Find the methods that cause slow requests

After the specified monitoring duration that starts from the time when you create the task is elapsed, the spans whose durations exceed the threshold are displayed in the Sampled Traces section. Perform the following steps to find the methods that cause slow requests based on the detailed information of the thread stacks on the right of the page:

  1. On the Slow Request Analysis page, click the task that you created in the Task list section.

    The spans whose duration exceeds the threshold are displayed in the Sampled Traces section.

  2. In the Sampled Traces section, click the span that you want to check. Then, view the content in the Thread Stack section on the right of the page.

    Methods whose duration exceeds the specified threshold are displayed in red. You can optimize these methods.

What can I do if no thread stack is sampled after the monitoring duration ends?

If no thread stack is sampled after the monitoring duration ends, perform the following steps to troubleshoot the issue:

  1. In the Task list section of the Slow Request Analysis page, click View task details to the right of the task that you created.

  2. View the task details in the Task details dialog box.
