Data Management:Use the SQL review optimization feature to change data

Last Updated:Feb 20, 2024

Data Management (DMS) provides the SQL review optimization feature in security rules. After you submit SQL statements for data change or on the SQLConsole tab, DMS reviews the submitted SQL statements based on the specifications in security rules. For example, the table must contain remarks or the table must have specific columns. Then, DMS offers the corresponding optimization suggestions, such as the lock-free data change recommendation. This feature helps database administrators (DBAs) review SQL statements and improve development quality. This topic describes how to configure security rules to review SQL statements and perform a data change.

Background information

DMS provides the default SQL specifications in security rules. For example, the table must contain remarks, a NULL value cannot be inserted into a NOT NULL column in the INSERT statement, and the names of fields in the INSERT statement cannot be duplicated.

For more information about SQL specifications and SQL optimization suggestions, see SQL review optimization.

Preparations

Execute the following SQL statement to create a table named migration_job:

CREATE TABLE `migration_job` (
  `id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT 'Primary key',
  `gmt_create` datetime NOT NULL COMMENT 'Creation time',
  `ref_id` bigint(20) unsigned NOT NULL COMMENT '',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='Test';
Note

If a database instance is managed in Security Collaboration mode, you can create a custom security rule set and associate the instance with the security rule set. For more information, see the Create security rules and Apply security rules sections of the "Manage security rules" topic.

Step 1: Configure security rules

This step shows how to configure the Security Collaboration security rule set. If you want to configure the Flexible Management or Stable Change security rule set, find the security rule set that you want to configure and click SQL audit optimization recommendations in the Actions column.

  1. Log on to the DMS console V5.0.
  2. In the top navigation bar, click Security and Specifications. In the left-side navigation pane, click Security Rules.

    Note

    If you use the DMS console in simple mode, move the pointer over the 2022-10-21_15-25-22.png icon in the upper-left corner of the DMS console and choose All functions > Security and Specifications > Security Rules.

  3. Find the security rule set that you want to configure and click Edit in the Actions column.

  4. On the Details page, click the SQL audit optimization recommendations tab in the left-side pane.

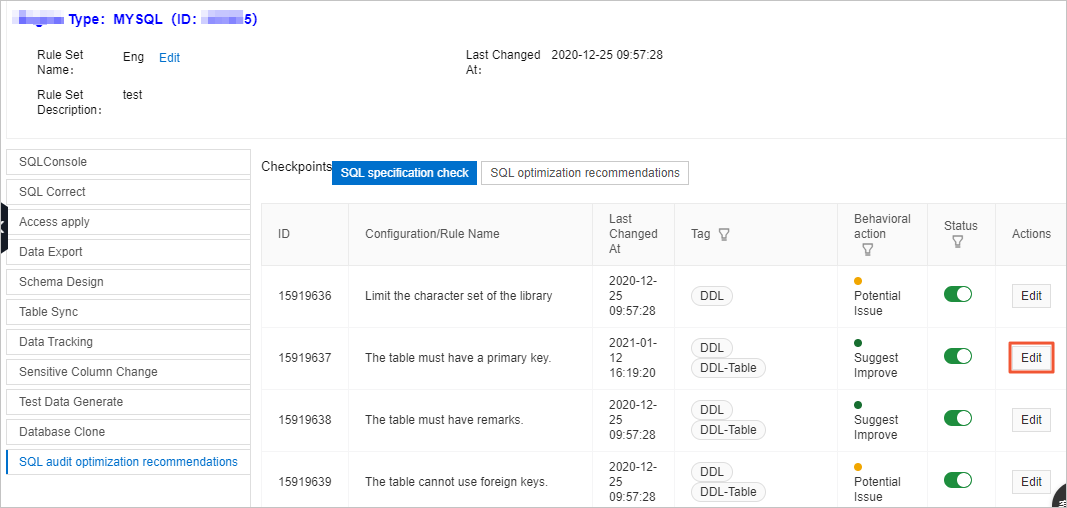

  5. Find the rule named The table must have a primary key and click Edit in the Actions column.

    Note

    You can click the image icon next to Tag, Behavioral action, and Status to filter rules. The Tag parameter specifies the scope within which a rule is effective, including DDL statements and DML statements.

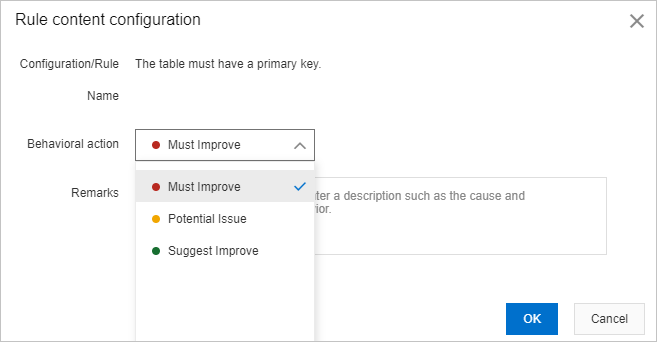

  6. In the Rule content configuration dialog box, configure the required parameters. In this example, the Behavioral action parameter is set to Must Improve.

    规则内容配置

    Note

    The default security rules that DMS provides for SQL review do not contain the Must Improve value. For more information about behavioral actions, see the Behavioral actions section of the "SQL review optimization" topic.

  7. Click OK.

    If you use the features such as data development, data change, and SQL review, the SQL review optimization feature verifies SQL statements based on the configured security rules.

Step 2: Perform a data change

  1. Log on to the DMS console V5.0.
  2. In the top navigation bar, choose Database Development > Data Change > Normal Data Modify.

    Note

    If you use the DMS console in simple mode, move the pointer over the 2022-10-21_15-25-22.png icon in the upper-left corner of the DMS console and choose All functions > Database Development > Data Change > Normal Data Modify.

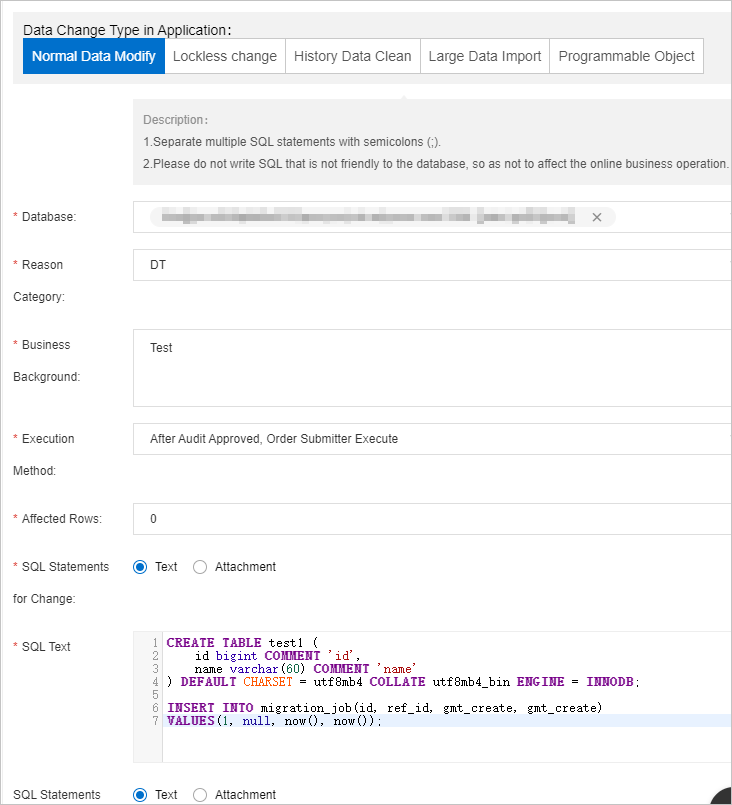

  3. On the Data Change Ticket Application page, configure the required parameters and click Submit.

    Note

    For more information about the Normal Data Modify feature, see Perform regular data change.

    • Select the database instance that is associated with the security rule set that you configured.

    • Execute the following SQL statements to perform a data change:

      CREATE TABLE test1 (
          id bigint COMMENT 'id',
          name varchar(60) COMMENT 'name'
      ) DEFAULT CHARSET = utf8mb4 COLLATE utf8mb4_bin ENGINE = INNODB;

      INSERT INTO migration_job(id, ref_id, gmt_create, gmt_create)
      VALUES(1, null, now(), now());

    提交数据变更工单

  4. After you submit the ticket, DMS reviews the submitted SQL statements based on the security rule set that you configured in Step 1.

    The SQL review optimization feature reviews the submitted SQL statements and returns suggestions. In this example, the following suggestions are returned: One item must be improved, two potential issues exist, and one item can be improved.

  5. Click View Details. Move the pointer over the items in the SQL Review column to view details.

    报错项1

  6. Click SQL Statements for Modification. Optimize the SQL statements based on the suggestions and click Confirm Change.

    You can modify the SQL statements by performing the following operations:

    • In the CREATE TABLE statement, add a primary key and remarks for the test1 table.

    • In the INSERT statement, remove the duplicate field named gmt_create and insert values for the ref_id field.

    The following SQL statements are obtained after modification:

    CREATE TABLE test1 (
        id bigint PRIMARY KEY COMMENT 'id',
        name varchar(60) COMMENT  'name'
    ) DEFAULT  CHARSET = utf8mb4 COLLATE  utf8mb4_bin ENGINE = INNODB  COMMENT  = 'Remarks';
    INSERT INTO migration_job(id, ref_id, gmt_create) VALUES(1, 2, now());

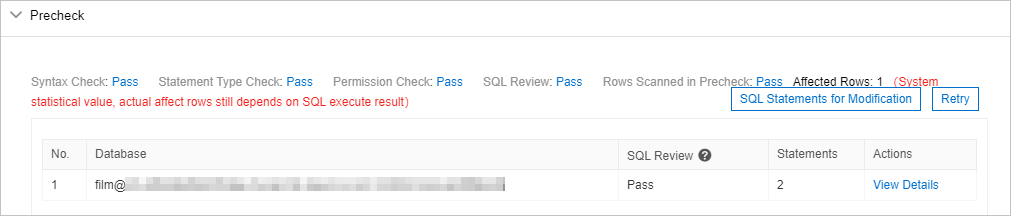

  7. DMS reviews the SQL statements again.

    The SQL statements pass the review.

  8. Click Submit for Approval and wait for approval.

    After approval, a data change task is generated.

  9. After the application is approved, click Execute Change. In the Task Settings dialog box, set the task execution parameters and click OK.

    Note
    • If you set the Execution Method parameter to After Audit Approved, Auto Execute in the Apply step, this step is automatically skipped.

    • After a suspended task is resumed, the script can be executed from the position at which the script was suspended.

    Parameter

    Description

    Execution Strategy

    Specifies whether to run the task for the ticket immediately or at a scheduled time. Valid values:

    • Running immediately: If you select this option and click Confirm Execution, DMS immediately runs the task.

    • Schedule: If you select this option, you need to specify a time. After you click Confirm Execution, DMS runs the task at the scheduled time.

    Enable Submit as Single Transaction

    Specifies whether to control the statements as a single transaction. Default value: off. Valid values:

    • on: If an SQL statement fails, all the executed data manipulation language (DML) statements in the same transaction are rolled back. DDL statements cannot be rolled back.

    • off: The specified SQL statements are executed individually. If an SQL statement fails, the transaction is stopped. The other executed SQL statements in the same transaction are not rolled back.

    Enable Backup

    Specifies whether to back up data. Default value: on. Valid values:

    Note
    • Data backup is supported for only UPDATE and DELETE statements.

    • You cannot back up data for MongoDB or Redis databases.

    • on: DMS generates specific statements to back up the data that is affected when UPDATE or DELETE statements are executed.

      • If the database is a MySQL or MariaDB database, DMS generates a REPLACE INTO statement.

        Note

        The supported MySQL database types include ApsaraDB RDS for MySQL, PolarDB for MySQL, PolarDB-X, and MySQL databases that are not on Alibaba Cloud.

      • If the database is not a MySQL or MariaDB database, DMS generates an INSERT statement.

    • off: DMS does not generate statements for data backup.

    Note

    The execution of SQL tasks is monitored by the checkpoints that are configured in security rules to control the SQL execution. Examples of the checkpoints include Database lock timeout mechanism before SQL execution, Database load check before SQL execution, and sleep policy after SQL execution. To check the checkpoints that are configured in a security rule to control SQL execution, go to the details page of the security rule, and click SQL execution control in the left-side pane. For more information about how to modify the default checkpoint settings, see Configure the control on SQL execution.

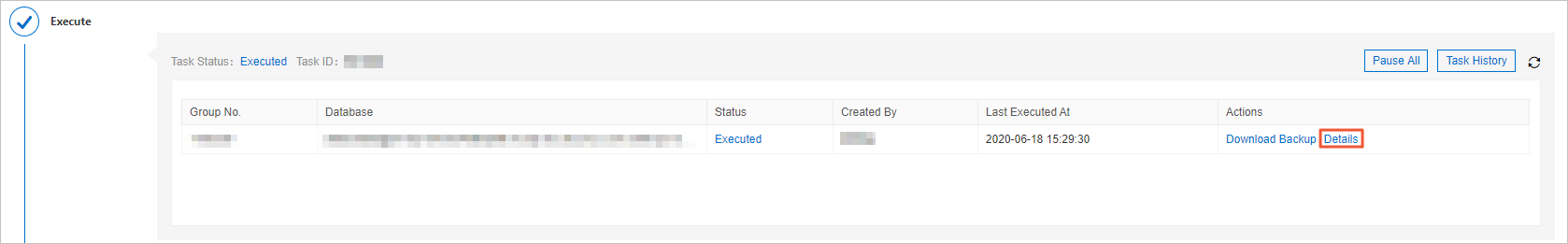

    • After the task is complete, you can click Details in the Actions column of the ticket to view the status of the ticket, number of times the task is run, number of affected rows, executed statements, and logs.

    • After the task is complete, you can go to the SQL console of the database to check whether the data is changed as expected.

What to do next

After the data change task is complete, you can click Details to view the execution logs that contain detailed information. such as the executed SQL statements, execution duration, and scheduling details.
