The preset monitoring dashboards provided by Prometheus Monitoring show the statistics of Kubernetes clusters, Kubernetes deployment, pods, and hosts. You can view the Prometheus Monitoring metrics on these dashboards, and modify the dashboard settings such as the time range and refresh frequency to meet your business requirements.
Prerequisites
Open a monitoring dashboard
After you install the Prometheus agent, you can open the preset monitoring dashboards on the Prometheus Monitoring page.
- Log on to the ARMS console.
- In the left-side navigation pane, click Prometheus Monitoring.
- In the left-side navigation pane, click Monitoring List. All the Container Service for Kubernetes (ACK) clusters in your Alibaba Cloud account are displayed on the Prometheus Monitoring page.
- On the Prometheus Monitoring page, click a link in the Installed Dashboards column to view the monitoring dashboard in a new browser window.
View metrics
You can view metrics on the following preset monitoring dashboards:
-
Kubernetes cluster overview dashboard
The dashboard shows the following metrics:
- Total usage metrics such as Cluster CPU usage, Cluster memory usage, and Cluster filesystem usage
- CPU metrics such as Pods CPU usage and All processes CPU usage
- Memory metrics such as Pods memory usage and All processes memory usage
- Network metrics such as Network I/O pressure, Pods network I/O, and All processes network I/O
-
Kubernetes deployment dashboard
The dashboard shows the following metrics:
- Deployment CPU usage, Deployment memory usage, and Unavailable Replicas in the Overview section
- CPU usage, Memory usage, and All processes network I/O in the Detail section
-
Pods dashboard
The dashboard shows the following metrics:
- Pod information: Pod IP Address, Pod Status, Pod Container, and Containers restarts
- Total usage metrics such as Pod memory usage and Pod CPU usage
- CPU metrics such as Pods CPU usage and All processes CPU usage
- Memory metrics such as Pods memory usage and All processes memory usage
- Network metrics such as Network I/O pressure, Pods network I/O, and All processes network I/O
-
Host details dashboard
The dashboard shows the following metrics:
- CPU metrics such as CPU Cores, CPU Usage, and CPU I/O Waiting Time
- Memory metrics such as Total Memory and Memory Usage
- Disk metrics such as Total Disk Space, Disk I/O Read/Write Time, and Disk Read/Write Rate
- Network metrics such as Network Traffic and TCP Connections
Common dashboard operations

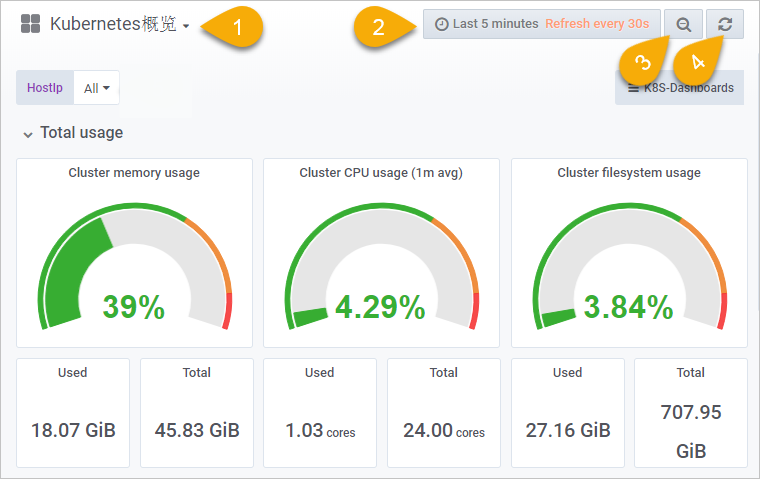

The following figure shows the common operations that you can perform on the dashboards.

-
Switch dashboards
The drop-down list shows the name of the current dashboard. You can click the down arrow to switch to another dashboard. To search for dashboards, you can enter a name in the top search bar, or select a tag from the Filter drop-down list.
-
Specify the time range and refresh frequency
After you click the clock icon, you can select a predefined time range from the drop-down panel. For example, you can select Last 5 minutes, Last 12 hours, or Last 30 days. You can also specify the start time and end time to define an absolute time range. In addition, you can set the refresh frequency for the dashboard.
-
Extend the time range
Each time you click the magnifier icon, the time range is extended to twice the original length. The start time and end time are equally extended. For example, if the selected time range is Last 10 minutes and you click the magnifier icon, the start time is extended to 5 minutes earlier and the end time is extended to 5 minutes later.
-
Manually refresh the dashboard
Click the refresh icon to refresh the monitoring data of all panels on the current dashboard.
-
Filter monitoring data
Select an option from the drop-down list to filter the monitoring data displayed on the current dashboard.
Common operations on a dashboard panel

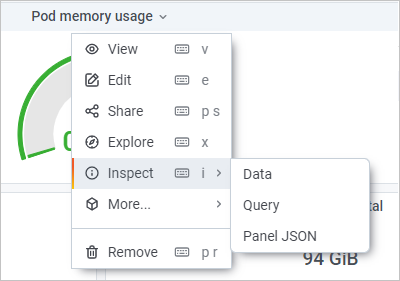

You can click the drop-down menu at the top of a panel to perform the following operations:

- To view the panel in the full screen mode, click View or press the V key. Then, you can press the V key again or press the Esc key to exit the full screen mode.
- To share the panel, click Share or press the P and S keys in sequence. Then, in the Share dialog box, obtain the sharing link, embedded link, or snapshot link of the panel.
- To obtain the JSON code of the panel, choose JSON dialog box. , and then copy the JSON code from the
- To export data as a CSV file from the panel, choose Export CSV dialog box, configure the format in which to export the data and then export the data. . In the
- To enable or disable the legend, choose or press the P and L keys in sequence.
