This topic describes how to migrate one or more ECS instances from the classic network to a VPC. After an ECS instance is migrated from the classic network to a VPC, you can enable more features for the instance, such as associating elastic IP addresses (EIPs).

Prerequisites

Before you migrate an ECS instance from the classic network to a VPC, make sure that the ECS instance meets the following requirements:
  • The ECS instance is not attached with local disks. For more information, submit a ticket.
  • The public bandwidth is not 0 Mbit/s. Before you migrate an ECS instance, you must upgrade its public bandwidth. For more information, see Modify public bandwidth.
  • The ECS instance is not located in Hangzhou Zone C.

Impacts

Note The migration plan feature is in invitational preview.
The following table describes the impacts of migrating an ECS instance from the classic network to a VPC.
Impacted item Description
Migration duration It takes about 15 minutes.
Instance restart The ECS instance is restarted when it is migrated. We recommend that you migrate your instance during off-peak hours.
Network type The ECS instance is migrated from the classic network to a VPC. For information about VPCs, see What is a VPC?
Software authorization code After the ECS instance is migrated, the software authorization code may change.
IP address
  • The public IP address of the ECS instance remains unchanged.
    Notice The public IP address of a VPC-type ECS instance is mapped in NAT mode. You can view only the private IP address of the ECS instance. If your application is dependent on the public IP address in the operating system, reconsider whether to migrate your ECS instance from the classic network to a VPC.
  • Internal IP address
    • If you set Retain Internal IP Address to Yes, the internal IP address of the ECS instance remains unchanged.
    • If you set Retain Internal IP Address to No, the internal IP address of the ECS instance is randomly assigned from the CIDR block of the vSwitch. After the ECS instance is migrated, you can modify its internal IP address. For more information, see Modify a private IP address.
Disk name The underlying virtualization technology is also upgraded for some ECS instances that are migrated from the classic network to a VPC. Therefore, the names of the disks on your ECS instance may change. In Linux instances, disk names are identified as vd*, such as vda, vdb, and vdc.
  • If the disk name is already identified as vda or vdb before the instance is migrated, the disk name remains unchanged.
  • If the disk name is identified as xvd* such as xvda and xvdb before the instance is migrated, the disk name is identified as vd* such as vda and vdb after the instance is migrated. Alibaba Cloud automatically updates the /etc/fstab file for Linux instances. However, you must check whether other applications are dependent on the disk names that are identified before the instances are migrated.
I/O performance After the ECS instance is migrated, the I/O performance may be temporarily degraded because data must be appended to the underlying layer. The snapshot and disk features are also temporarily disabled. Typically, it takes about 4 hours to append 100 GiB of data.
Estimated fee You are not charged for the migration. If the migrated instance is a subscription instance, the unit price of its instance type does not change until the new subscription period starts. Based on the same configuration, an instance of the VPC type is billed less than an instance of the classic network type.
Others
  • The ID, username, and logon password of the instance remain unchanged.
  • Orders for renewal and configuration changes that are not in effect or unpaid are canceled. You can perform the renewal and configuration change operation again.
  • If the ECS instance is added to the vServer group of an SLB instance, the instance is not automatically associated with the SLB instance after the instance is migrated. For information about how to add an ECS instance to a vServer group, see Modify a VServer group.

Preparations

  1. Create a snapshot for the disks on the ECS instance and back up data. For more information, see Create a snapshot for a disk.
  2. (Optional) If your ECS instance is associated with an ApsaraDB service, you must enable the hybrid access mode for the ApsaraDB service in advance. In hybrid access mode, both the classic network-type and VPC-type ECS instances can access ApsaraDB services. For more information, see Overview of the hybrid access mode of ApsaraDB.
  3. (Optional) If your ECS instance is associated with ApsaraDB services that provide the whitelist feature, such as ApsaraDB RDS, you must add the CIDR block of the vSwitch to the ApsaraDB whitelist in advance. For more information, see Configure a whitelist.
  4. (Optional) We recommend that you enable the application service to run on startup and monitor the availability.
  5. Disable or uninstall the server security software.
    Note The migration updates the device driver of the ECS instance. You must disable or uninstall the server security software on the ECS instance.
  6. Reserve at least 500 MiB for the system disk.
  7. Make sure that the vSwitch of the destination VPC has sufficient private IP addresses. The number of private IP addresses must be greater than the number of instances to be migrated.

Step 1: Create a migration plan

  1. Log on to the ECS console.
  2. In the top navigation bar, select a region.
  3. Click Create Migration Plan.
  4. In the Configure Migration Plan step, configure parameters such as other related to the network and click Next.
    1. Configure the destination zone and VPC.
      Configure the network
      Parameter Description
      Plan Name Enter a name for the migration plan.
      Select a destination zone Select a destination zone from the drop-down list to migrate the ECS instance.

      The available zones are automatically planned by the system based on resources. If you want to specify a zone for your business, submit a ticket.

      Destination VPC Select a destination VPC from the drop-down list to migrate the ECS instance.
      • Select (Default) Automatically create a VPC, CIDR block: 10.0.0.0/8: This option is suitable for scenarios where you have not created a VPC that has the 10.0.0.0/8 CIDR block and want to retain the internal IP address of the ECS instance.

        If you select this option, the system automatically creates a VPC that has the 10.0.0.0/8 CIDR block.

      • Select a VPC that has the 10.0.0.0/8 CIDR block: This option is suitable for scenarios where you have created a VPC that has the 10.0.0.0/8 CIDR block and want to retain the internal IP address of the ECS instance.
      • Select a VPC that has a CIDR block other than 10.0.0.0/8: This option is suitable for scenarios where you have planned a VPC and do not need to retain the internal IP address of the ECS instance.
    2. Configure the instance network properties.
      Network properties
      Parameter Description
      Destination Security Group Select security groups for the instance to be migrated. Valid values:
      • (Default) Clone Security Groups of Classic Network-type Instances: The system clones the security groups of the classic network-type instance. The security group rules of the migrated VPC-type instance are the same as those of the classic network-type instance.

        If you set Destination VPC to (Default) Automatically create a VPC, CIDR block: 10.0.0.0/8, the original security groups are automatically cloned. You cannot modify the security groups.

        Note Security groups with group authorization rules cannot be cloned.
      • Specify Security Groups: Select existing security groups from the drop-down list.
        Note Inappropriate security group settings can affect your network access. Make sure that your security group rules are correct.
      Mac Address Retention Policy Select the MAC address that you want to retain. Valid values: (Default) Private Mac Address and Public Mac Address.

      In the classic network, if an instance has a public IP address, the instance has both a public and a private MAC address. In a VPC, an instance has only a private MAC address. The public IP address of the instance is mapped in NAT mode.

      • If your business system is associated with a MAC address, retain the associated MAC address. For example, if a MAC address is configured in your business system, some software is registered by using the associated MAC address.
      • If your business system is not associated with a MAC address, you can select (Default) Private Mac Address or Public Mac Address.
    3. Configure the instance network connectivity.
      Instance network connectivity
      Parameter Description
      Retain Internal IP Address Specify whether to retain the original internal IP address of the ECS instance and create or select a vSwitch.
      • If you select (Default) Yes, the original internal IP address of the ECS instance is retained, and you must set the vSwitch Creation Policy parameter.
        • If you set vSwitch Creation Policy to Automatic, the system automatically creates a vSwitch.
        • If you set vSwitch Creation Policy to Manual, you must create a vSwitch in the destination zone based on the internal IP addresses of all the classic network-type instances in the migration plan.
        Note If you set Destination VPC to (Default) Automatically create a VPC, CIDR block: 10.0.0.0/8, the system automatically retains the internal IP address of the ECS instance and creates a vSwitch policy. You cannot modify the Retain Internal IP Address parameter.
      • If you select No, the original internal IP address of the ECS instance is not retained. You must select a vSwitch from the drop-down list.
        Note If you have created a vSwitch but you cannot find it in the drop-down list, the migrated instance and the vSwitch are not in the same zone. You must create a vSwitch in the destination zone. For more information, see Work with vSwitches.
      Ensure interconnections between the migrated instances and the classic network-type instances specified in the plan over the internal network Specify whether the ECS instance to be migrated to a VPC can communicate with other ECS instances in the classic network over the internal network. Valid values: Yes and (Default) No.

      If you select Yes, perform the following settings based on your migration plan:

      • If you choose to retain the internal IP address, you must select all the classic network-type instances that require connectivity over the internal network in the Select Instances step, including the ECS instances to be migrated to a VPC and the ECS instances that remain in the classic network. Classic network-type instances that are not included in the migration plan cannot communicate with the instances in VPCs. After the instances are configured, you cannot add or remove ECS instances.
      • If you choose not to retain the internal IP address, you must disable ClassicLink of classic network-type instances and enable classic network-type instances to communicate with those in VPCs. For more information, see Connect a classic network to a VPC.
  5. In the Select Instances step, select the ECS instance to be migrated and click Next.
    If you choose to retain the internal IP address and want the migrated ECS instance to communicate with the classic network-type instances, you must select all the classic network-type instances that require connectivity over the internal network, including the ECS instances to be migrated to a VPC and the ECS instances that remain in the classic network.
    Note Classic network-type instances that are not included in the migration plan cannot communicate with the instances in VPCs. After the instances are configured, you cannot add or remove ECS instances.
    Select Instances
    • 1. Instances to be migrated to a VPC
    • 2. Instances that remain in the classic network
  6. In the Scheduled Migration step, set a migration time for the instance and click Verify.
    The ECS instance is restarted when it is migrated. We recommend that you migrate your instance during off-peak hours. You can set the migration time for a single instance, multiple instances, or all instances.
    • To set the migration time for a single instance, click Schedule Migration Time in the Actions column corresponding to the instance.
    • To set the migration time for multiple instances, select multiple instances in the instance list and click Batch Schedule Migration Time.
    • To set the migration time for all instances, click Set Unified Migration Time.
    Notice Set a later migration time for a classic network-type instance that requires connectivity. Before the migration time arrives, evaluate whether to migrate the ECS instance.
  7. In the Verify dialog box, view the migration considerations and verify whether your migration plan meets the requirements.
    • If your migration plan meets the requirements, select the options about migration and click Confirm and Create.
    • If your migration plan does not meet the requirements, the system prompts an error message. You can create a migration plan again based on the error message.

Step 2: Migrate the ECS instance

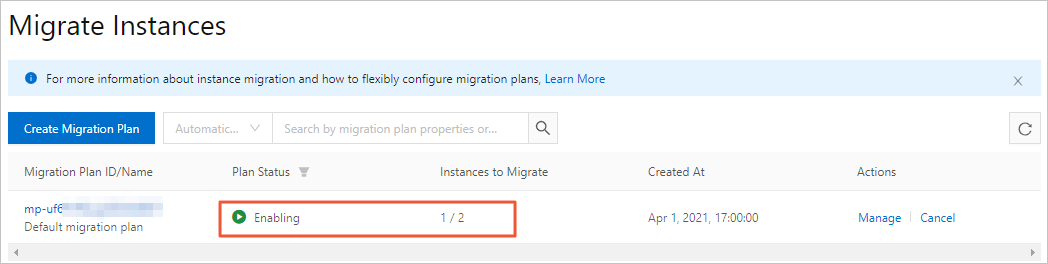

After the migration plan is created, the system automatically migrates the ECS instance at the specified time.The migration is complete
Note Disks are migrated during some migration processes. If you want to perform a physical server upgrade on your ECS instance or migrate your ECS instance across zones, data must be appended to the underlying layer of the ECS instance after the instance is restarted. Therefore, the I/O performance of your ECS instance is temporarily degraded, and the snapshot and disk features are temporarily disabled. Typically, it takes about 4 hours to append 100 GiB of data.

Step 3: Check the migration result

  1. In the left-side navigation pane, choose Instances & Images > Instances.
  2. Find the migrated ECS instance and click its ID.
  3. On the Instance Details page, check whether the network type of the instance is VPC.
    View the result
  4. Check the internal network and business operating environments.
    Scenario Migration plan What to do next
    Migrate all ECS instances to the same VPC Set Destination VPC to (Default) Automatically create a VPC, CIDR block: 10.0.0.0/8. Check whether your business system runs normally.
    Migrate some ECS instances to a VPC and retain some ECS instances in the classic network
    • Set Destination VPC to (Default) Automatically create a VPC, CIDR block: 10.0.0.0/8.
    • Set Ensure interconnections between the migrated instances and the classic network-type instances specified in the plan over the internal network to Yes.
    Check whether your business system runs normally.
    Other scenarios Set Destination VPC to a VPC that has a CIDR block other than 10.0.0.0/8.
    1. Check the network connectivity.
    2. If your business is connected by using an internal IP address, configure a new internal IP address.
    3. Check whether your business system runs normally.

Post-migration operations

  1. If your ECS instance runs a Linux operating system, and the private IP address has changed after the instance is migrated, modify the /etc/hosts file of the ECS instance.Modify hosts
    1. Run the vi /etc/hosts command and enter i.
    2. Change the original private IP address to the private IP address after the ECS instance is migrated.
    3. Press the Esc key, enter :wq, and then press the Enter key.
  2. Remove the abandoned private IP address from the whitelists of other cloud services such as ApsaraDB RDS, SLB, OSS, and Container Service for Kubernetes.
  3. The zone of the ECS instance may change. Associated services including ApsaraDB RDS, ApsaraDB for Redis, and ApsaraDB for MongoDB are affected. Adjust your application configurations in a timely manner to ensure your business availability. For more information, see Migrate an ApsaraDB RDS for MySQL instance across zones in the same region.
  4. If you have not restarted or upgraded the kernel for an extended period of time, problems may occur after your ECS instance is migrated. For example, a file system check may be performed, related configuration changes may become invalid, and the kernel may fail to be restarted.
  5. (Optional) The authorization code of your software changes because the network interface controller (NIC) is deleted. If the software on your ECS instance is associated with the MAC address of a NIC and the software vendor approves the migration certificate issued by Alibaba Cloud, you can reauthorize the software. If an error occurs, you must modify or roll back the ECS instance based on the actual situation.
  6. (Optional) If your ECS instance has not been restarted for an extended period of time or has not been restarted after its kernel is upgraded, the system checks the file system and updates related configurations when the instance is restarted. If your ECS instance fails to be restarted, contact Alibaba Cloud Submit a ticket.

FAQ

Why am I unable to open websites, use services, or read and write data after my ECS instance is migrated?

This may be because the corresponding communication port is disabled for the new security group. You can try to clone the original security group rules. For more information, see Clone a security group.

Why am I unable to properly use the software after my ECS instance is migrated. I am prompted that the authorization code expires, the authorization code is invalid, or no authorization code exists.

The following reasons may apply:
  • Your software does not have a migration license plan. In this case, you can contact the software vendor or channel partner to submit a verification form for re-authorization.
  • Some software is registered to a valid environment by associating the MAC addresses of the NICs. After your ECS instance is migrated to a VPC, only one MAC address can be retained. The associated MAC address may be deleted. You can contact the software vendor to check whether your software was registered to your instance by associating the MAC addresses of the NICs. If so, you must rebind the NICs to the instances. For more information, see ENI overview.

Why am I unable to use the FTP service after my ECS instance is migrated?

After your ECS instance is migrated, the public NIC is deleted. Therefore, the FTP service is unavailable. You can perform the following operations:
  1. Convert the public IP address of a VPC-type instance to an elastic IP address.
  2. Associate an EIP with a secondary ENI in cut-through mode.
Note Some retired instance types and previous-generation entry-level instance types do not support elastic network interfaces (ENIs). Upgrade the instance type of your ECS instance to a compatible one before you perform the preceding operations. For more information, see Retired instance types, Instance families, and Overview of instance upgrade and downgrade.
