Enhanced NAT gateways provide Source Network Address Translation (SNAT) and Destination Network Address Translation (DNAT) services for Elastic Compute Service (ECS) instances. This topic describes how to use SNAT to enable ECS instances to access Internet-facing services that use DNAT in the same virtual private cloud (VPC).

Scenario

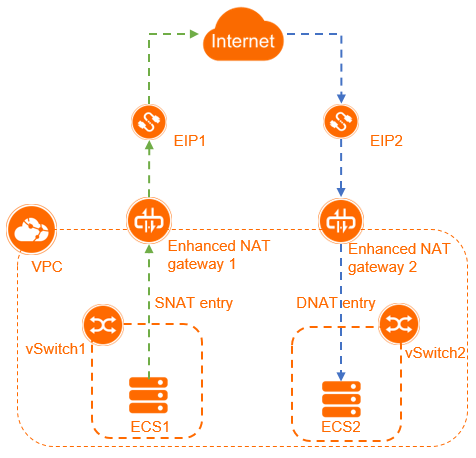

The following scenario is used as an example. Architecture diagram

A company creates a VPC in the the China (Shanghai) region and then deploys two vSwitches named VSW1 and VSW2 in the VPC. The ECS instance that is connected to VSW1 must access the services that are deployed on the ECS instance that is connected to VSW2 over the Internet.

You can create two enhanced NAT gateways named NAT1 and NAT2 for the VPC that is deployed in the China (Shanghai) region. Then, configure SNAT entries on NAT1, configure DNAT entries on NAT2, and configure route entries for both VSW1 and VSW2. This allows the ECS instances to access Internet-facing services in the VPC. These services use DNAT to provide external access.

Prerequisites

Before you start, make sure that the following requirements are met:
  • An Alibaba Cloud account is created. If you do not have an Alibaba Cloud account, create an Alibaba account.
  • A VPC is created and two vSwitches named VSW1 and VSW1 are created in the VPC. For more information, see Work with VPCs and Create a vSwitch.
  • An ECS instance named ECS1 is connected to VSW1. Another ECS instance named ECS2 is connected to VSW1. Services are deployed on ECS2. For more information, see Create an instance by using the wizard.
  • Two elastic IP addresses (EIPs) named EIP1 and EIP2 are created. For more information, see Apply for new EIPs.

Procedure

Procedure

Step 1: Create an enhanced NAT gateway

Similar to standard NAT gateways, enhanced NAT gateways provide network address translation services (SNAT and DNAT). You must create a NAT gateway before you can configure SNAT and DNAT entries.

To create two enhanced NAT gateways in the same VPC, perform the following steps:

  1. Log on to the NAT Gateway console.
  2. On the NAT Gateway page, click Create NAT Gateway.
  3. On the NAT Gateway (Pay-As-You-Go) page, configure the NAT gateway based on the following information, click Buy Now, and then complete the payment:
    • Region and Zone: Select the region where you want to deploy the NAT gateway.

      China (Shanghai) is selected in this example.

    • Gateway Type: Select the type of NAT gateway that you want to create.

      Enhanced is selected in this example. Enhanced NAT gateways support all features of standard NAT gateways. Enhanced NAT gateways are an upgrade from standard NAT gateways and use a more advanced architecture. Compared with standard NAT gateways, enhanced NAT gateways provide higher elasticity and stability. This helps you manage data transfer in a more efficient manner. For more information, see Enhanced NAT gateways (new).

    • VPC ID: Select the VPC where you want to deploy the NAT gateway. After the NAT gateway is created, you cannot change the VPC where the NAT gateway is deployed.
    • Zone: Select the zone where you want to deploy the NAT gateway.
    • VSwitch ID: Select the vSwitch to which the NAT gateway is attached.
    • Specification: Specify the size of the NAT gateway.
      • Small
      • Medium
      • Large

      The size of a NAT gateway limits the SNAT performance, which includes the maximum number of concurrent connections and the number of new connections per second. However, the gateway size does not affect the DNAT performance. For more information, see Instance specifications.

      Small is selected in this example.

    • Billing Method: Select a billing method for the NAT gateway. Pay by Actual Usage: You are charged based on the actual data transfer. Fees may vary in each billing cycle. For more information, see Pay-by-data-transfer.
    • Billing Cycle: specifies the subscription duration of the NAT gateway.
  4. Repeat the preceding steps to create another enhanced NAT gateway in the same VPC and name the NAT gateway as NAT2.

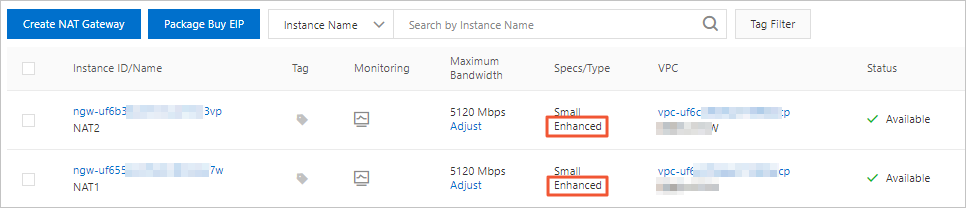

After the NAT gateways are created, you can find the enhanced NAT gateways on the NAT Gateway page. Create an enhanced NAT gateway

Step 2: Associate EIPs

You can associate EIPs with the NAT gateways. After you associate EIPs with the NAT gateways, you can specify the EIPs in DNAT and SNAT entries.

To associate EIPs with the enhanced NAT gateways, perform the following steps:

  1. On the NAT Gateway page, find NAT1 that is created in Step 1. In the Actions column, choose More > Bind Elastic IP Address.
  2. In the Associate EIP dialog box, set the following parameters and click OK.
    Parameter Description
    Resource Group Select the resource group of the EIP.
    EIPs Select the EIP that you want to associate with the NAT gateway.

    In this example, EIP1 is selected from the Select Existing EIPs drop-down list.

  3. Repeat the preceding steps to associate EIP2 with NAT2 that is created in Step 1.

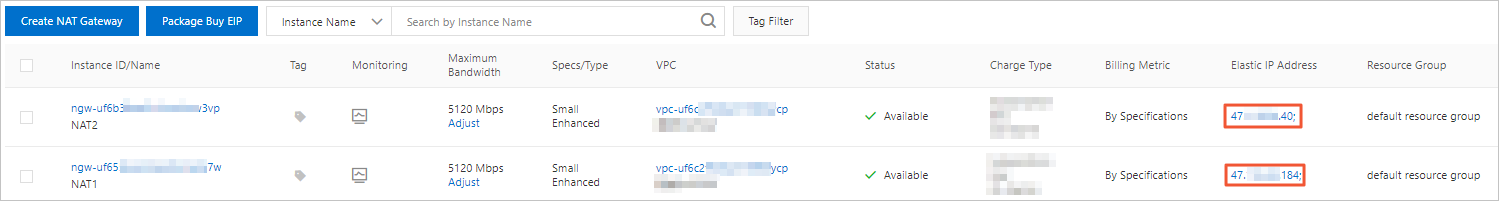

After you associate EIPs with NAT1 and NAT2, you can find the EIPs on the NAT Gateway page. Associate EIPs

Step 3: Create a SNAT entry on NAT1

NAT gateways support the SNAT feature. SNAT enables ECS instances in a VPC to access the Internet when no public IP address is associated with the ECS instances.

To create SNAT entries and enable the ECS instance that is connected to VSW1 to access the Internet, perform the following steps:

  1. On the NAT Gateway page, find NAT1 that is created in Step 1 and click Configure SNAT in the Actions column.
  2. On the SNAT Management tab, click Create SNAT Entry.
  3. On the Create SNAT Entry page, set the following parameters and click OK.
    Parameter Description
    SNAT Entry Specify whether you want to create a SNAT entry for an ECS instance or a vSwitch. Specify VSwitch: The ECS instances that are attached to the vSwitch use the specified EIP to access the Internet. This option is selected in this example.
    • Select VSwitch: Select a vSwitch from the drop-down list. If no vSwitch is available in the drop-down list, click Create VSwitch from the drop-down list. Then, you are redirected to the VPC console where you can create vSwitches. In this example, VSW1 is selected.
      Note If you select multiple vSwitches, the system creates multiple SNAT entries that use the same EIP.
    • VSwitch CIDR Block: displays the CIDR block of the vSwitch.
    Select Public IP Address Select an EIP. The EIP is used to communicate with the Internet. You can select an EIP from the drop-down list. Use One IP Address is specified in this example. If no EIPs are available in the drop-down list, click Purchase and Associate EIP from the drop-down list to purchase an EIP. In this example, EIP1 is selected.
    Entry Name Enter a name for the SNAT entry.

    The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

After a SNAT entry is created, you can find the SNAT entry that is in the Available state in the Used in SNAT Entry section. SNAT

Step 4: Create a DNAT entry on NAT2

NAT gateways support the DNAT feature. DNAT maps public IP addresses to ECS instances in a VPC. This way, the ECS instances can receive requests from the Internet.

To create a DNAT entry and map EIP2 to ECS2, perform the following steps:

  1. On the NAT Gateway page, find NAT2 that is created in Step 1 and click Configure DNAT in the Actions column.
  2. On the DNAT Management tab, click Create DNAT Entry.
  3. On the Create DNAT Entry page, set the following parameters and click OK.
    Parameter Description
    Select Public IP Address Select an EIP from the drop-down list. The EIP is used to communicate with the Internet. In this example, EIP2 is selected.
    Select Private IP Address Select the ECS instance that uses the DNAT entry to receive requests from the Internet. You can use the following methods to specify the private IP address of the ECS instance that receives requests from the Internet:
    • Select by ECS or ENI: Select an ECS instance from the ECS instance list or Elastic Network Interface (ENI) list.
    • Manual Input: Enter the private IP address of the selected ECS instance.
    ECS2 is selected in this example.
    Port Settings Select a DNAT mapping method:
    • Any Port: This method uses IP mapping. Requests that are destined for the EIP are forwarded to the selected ECS instance.
    • Specific Port: This method uses port mapping. The NAT gateway forwards requests from the specified port over the specified protocol to the specified port of the selected ECS instance.
      • Public Port: the external port that is used in port forwarding.
      • Private Port: the internal port that is used in port forwarding.
      • Protocol Type: the protocol that is used by the ports.

    Specific Port is selected in this example. Then, set Public Port to 80, Private Port to 80, and IP Protocol to TCP.

    Entry Name The name of the DNAT entry.

    The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

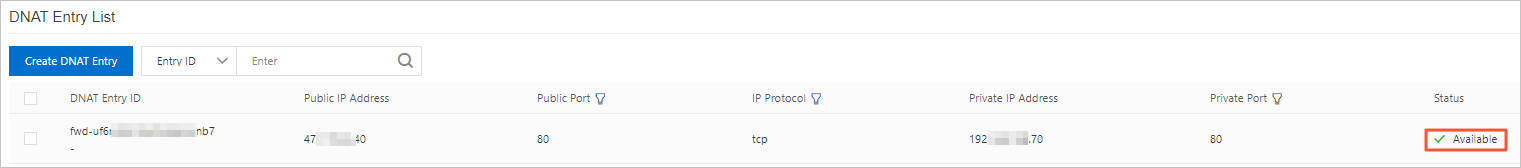

After the DNAT entry is created, you can find the DNAT entry that is in the Available state in the DNAT Entry List section. DNAT

Step 5: Configure route entries for VSW1

Create a custom route table in the VPC, add a route entry to the custom route table, and then associate the custom route table with the vSwitch. This way, you can manage data transfer on the vSwitch.
Note All regions support custom route tables, except the China (Beijing), China (Shenzhen), and China (Hangzhou) regions.

To configure a route entry for VSW1, perform the following steps:

  1. Create a custom route table.
    1. In the left-side navigation pane, click Route Tables.
    2. On the Route Tables page, click Create Route Table.
    3. On the Create Route Table page, set the following parameters and click OK:
      • Resource Group: Select the resource group to which the route table belongs.
      • VPC: Select the VPC to which the route table belongs.

        In this example, the VPC to which the enhanced NAT gateways belong is selected.

      • Name: Enter a name for the route table.

        The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

        VTB1 is entered in this example.

  2. Add a custom route entry to the custom route table named VTB1.
    1. On the Route Tables page, find VTB1 and click its ID.
    2. On the Route Entry List tab, click Add Route Entry.
    3. In the Add Route Entry panel, set the following parameters and click OK:
      • Name: Enter a name for the route entry.

        The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

        Route1 is entered in this example.

      • Destination CIDR Block: Enter the destination CIDR block of the route entry.

        0.0.0.0/0 is entered in this example.

      • Next Hop Type: Select the type of the next hop of the route entry.

        In this example, NAT Gateway is selected. Select NAT1 as the next hop of the route entry.

  3. Associate VTB1 with VSW1.
    1. Click the Associated VSwitch tab and click Associate VSwitch.
    2. In the Associate VSwitch panel, select the vSwitch that you want to manage and click OK.
      In this example, VSW1 is selected.

Step 6: Configure route entries for VSW2

Create a custom route table in the VPC, add a route entry to the custom route table, and then associate the custom route table with the vSwitch. This way, you can manage data transfer on the vSwitch.
Note All regions support custom route tables, except the China (Beijing), China (Shenzhen), and China (Hangzhou) regions.

To configure a route entry for VSW2, perform the following steps:

  1. Create a custom route table.
    1. In the left-side navigation pane, click Route Tables.
    2. On the Route Tables page, click Create Route Table.
    3. On the Create Route Table page, set the following parameters and click OK:
      • Resource Group: Select the resource group to which the route table belongs.
      • VPC: Select the VPC to which the route table belongs.

        In this example, the VPC to which the enhanced NAT gateways belong is selected.

      • Name: Enter a name for the route table.

        The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

        VTB2 is entered in this example.

  2. Add a custom route entry to the custom route table named VTB2.
    1. On the Route Tables page, find VTB2 and click its ID.
    2. On the Route Entry List tab, click Add Route Entry.
    3. In the Add Route Entry panel, set the following parameters and click OK:
      • Name: Enter a name for the route entry.

        The name must be 2 to 128 characters in length, and can contain digits, underscores (_), and hyphens (-). It must start with a letter.

        Route2 is entered in this example.

      • Destination CIDR Block: Enter the destination CIDR block of the route entry.

        0.0.0.0/0 is entered in this example.

      • Next Hop Type: Select the type of the next hop of the route entry.

        In this example, NAT Gateway is selected. Select NAT2 as the next hop of the route entry.

  3. Associate VTB2 with VSW2.
    1. Click the Associated VSwitches tab and click Associate VSwitch.
    2. In the Associate VSwitch panel, select the vSwitch that you want to manage and click OK.
      In this example, VSW2 is selected.

Step 7: Verify the connectivity

After route entries are configured, you can check whether ECS1 can access the services that are deployed on ECS2.
Note Make sure that the security group rules of the ECS instances meet the following requirements:
  • The security group rules of ECS1 allow ECS1 to access the Internet.
  • The security group rules of ECS2 enable Internet access to the services that are deployed on ECS2.

For more information, see Add security group rules.

  1. Log on to ECS1.
  2. Run the curl http://<EIP2> command to check whether ECS1 can access services that are deployed on ECS2.
    Note EIP2 is associated with NAT2.
    The result shows that ECS1 can access the services that are deployed on ECS2 over the Internet. Verify the network connectivity
